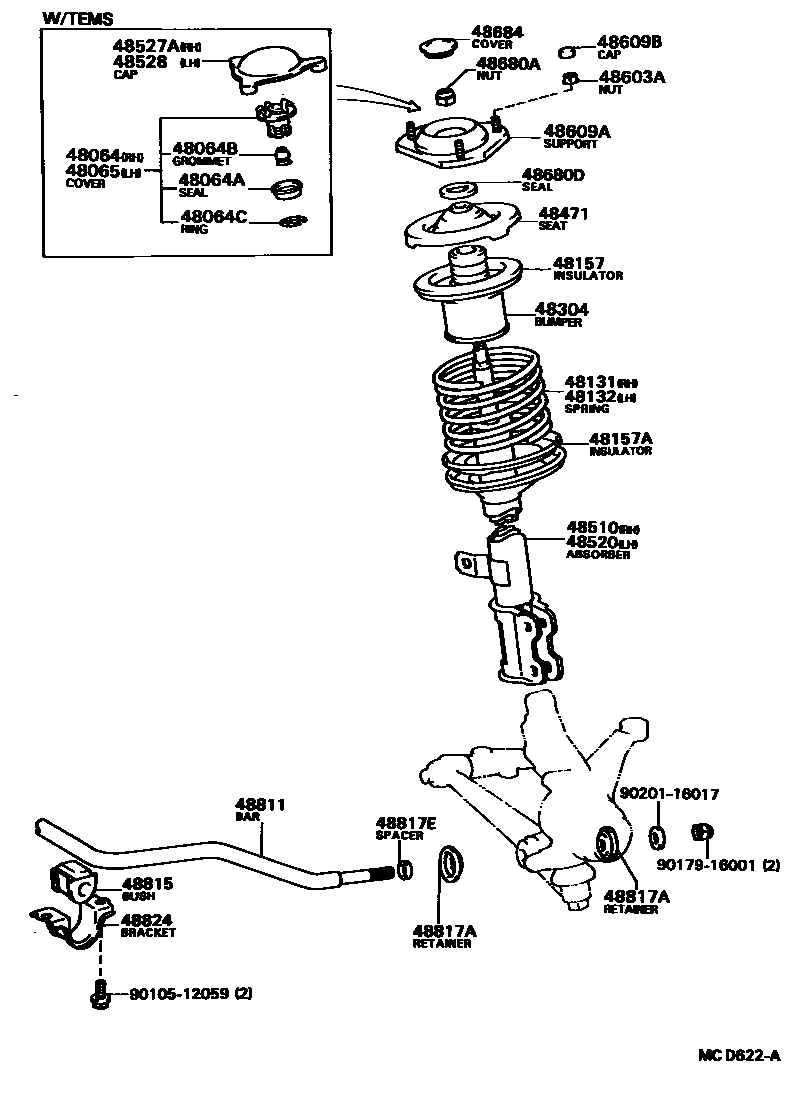

FRONT SPRING & SHOCK ABSORBER

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-16010iSV21,VZV20..GT,PRO198808-199007

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iSV21,VZV20..GT,PRO198808-199007

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iSV21,VZV20..GT,PRO198808-199007

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iSV21,VZV20..GT,PRO198808-199007

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-16010iSV21,VZV20..GT,PRO198808-199007

48131SPRING, FRONT COIL, RH

main48131-32380iSV21..5F..(LUM,VE,VX,ZX)198808-199007

sub48131-32880

main48131-32440iSV21..SED..5F..GT198808-199007

main48131-32470iSV21..HT..5F..GT198808-199007

main48131-32490iSV21..SED..4FC..GT198808-199007

main48131-32510iSV25..5F;SV21..HT..4FC..GT198808-199007

main48131-32530iCV20..5F;SV22..HT..4FC198808-199007

main48131-32550iCV20,SV21..4FC..(LUM,VE,VL,VX,XT,ZX)198808-199007

main48131-32560iCV20..4FC198812-198912

main48131-32620iSV22..LT,VC198808-199007

main48131-32640iSV22..SED..5F..(LUM,VE,VL,VR,XT,ZE)198808-199007

main48131-32680iVZV20..5F198808-199007

main48131-32750iSV25..4FC198808-199007

sub48131-32510

main48131-32760iVZV20..4FC198808-199007

sub48131-32780

main48131-32820iCV20..4FC198912-199007

main48131-32880iSV22..HT..5F;SV22..SED..4FC198808-199007

sub48131-32860

48132SPRING, FRONT COIL, LH

main48131-32380iSV21..5F..(LUM,VE,VX,ZX)198808-199007

sub48131-32880

main48131-32440iSV21..SED..5F..GT198808-199007

main48131-32470iSV21..HT..5F..GT198808-199007

main48131-32490iSV21..SED..4FC..GT198808-199007

main48131-32510iSV25..5F;SV21..HT..4FC..GT198808-199007

main48131-32530iCV20..5F;SV22..HT..4FC198808-199007

main48131-32550iSV21..4FC..(LUM,VE,VX,ZX)198808-199007

main48131-32560iCV20..4FC198812-198912

main48131-32620iSV22..LT,VC198808-199007

main48131-32640iSV22..SED..5F..(LUM,VE,VL,VR,XT,ZE)198808-199007

main48131-32680iVZV20..5F198808-199007

main48131-32750iSV25..4FC198808-199007

sub48131-32510

main48131-32760iVZV20..4FC198808-199007

sub48131-32780

main48131-32820iCV20..4FC198912-199007

main48131-32880iSV22..HT..5F;SV22..SED..4FC198808-199007

sub48131-32860

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-32020iCV20,SV2#,VZV20198808-199007

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-32020iCV20,SV2#,VZV20198808-199007

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-32030iCV20,SV2#,VZV20198808-199007

48471SEAT, FRONT SPRING, UPPER

main48044-32020iCV20,SV2#,VZV20198808-199007

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-32081iCV20,SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub48510-32082

main48510-32091iSV21..GT198808-199007

sub48510-32092

main48510-32101iSV21,VZV20..GT,PRO198808-199007

main48510-32121iVZV20198808-199007

sub48510-32091

main48510-32131iSV25198808-199007

sub48510-32132

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-32081iCV20,SV21,22..LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub48520-32082

main48520-32091iSV21..GT198808-199007

sub48520-32092

main48520-32101iSV21,VZV20..GT,PRO198808-199007

main48520-32121iVZV20198808-199007

sub48520-32091

main48520-32131iSV25198808-199007

sub48520-32132

48527ACAP, FRONT SHOCK ABSORBER, RH

main48527-32010iSV21,VZV20..GT,PRO198808-199007

48528CAP, FRONT SHOCK ABSORBER, LH

main48528-32010iSV21,VZV20..GT,PRO198808-199007

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iCV20,SV2#,VZV20198808-199007

main90179-10143iCV20,SV2#,VZV20198908-199006

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-32030iCV20,SV2#,VZV20..LT,LUM,PRO,VC,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main48609-32050iVZV20198808-199007

48609BCAP(FOR FRONT SUSPENSION SUPPORT)

main90339-15002iSV22198808-199007

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iSV21,VZV20..GT,PRO198808-199007

main94182-11400iCV20,SV2#,VZV20198808-199007

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iCV20,SV2#,VZV20198808-199007

48684COVER, BEARING DUST

main48684-32010iCV20,SV2#,VZV20198808-199007

48811BAR, STABILIZER, FRONT

main48811-32090iVZV20198808-199007

sub48811-32200

main48811-32120iCV20,SV2#198808-199007

sub48811-32220

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-32040iVZV20198808-199007

sub48815-32110

main48815-32060iCV20,SV2#198808-199007

sub48815-32120

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main48667-32010iCV20,SV2#,VZV20199006-199007

sub48667-32011

main90948-02115iCV20,SV22198811-199006

sub48667-32010

main90948-02117iSV21,25,VZV20198808-198811

sub90948-02115

main90948-02118iSV21,25,VZV20198808-198811

sub90948-02124

main90948-02124iSV21,25,VZV20198811-199006

sub48667-32010

48817ESPACER(FOR STABILIZER BAR)

main90560-16005iCV20,SV2#,VZV20198808-199007

48824BRACKET, STABILIZER, FRONT

main48824-32030iCV20,SV2#,VZV20198808-199007

sub48824-32040

main48824-32040iCV20,SV2#,VZV20199006-199007

9010512059

main90105-12059

9017916001

main90179-16001

9020116017

main90201-16017

29 parts on this diagram · 1 diagram in section
