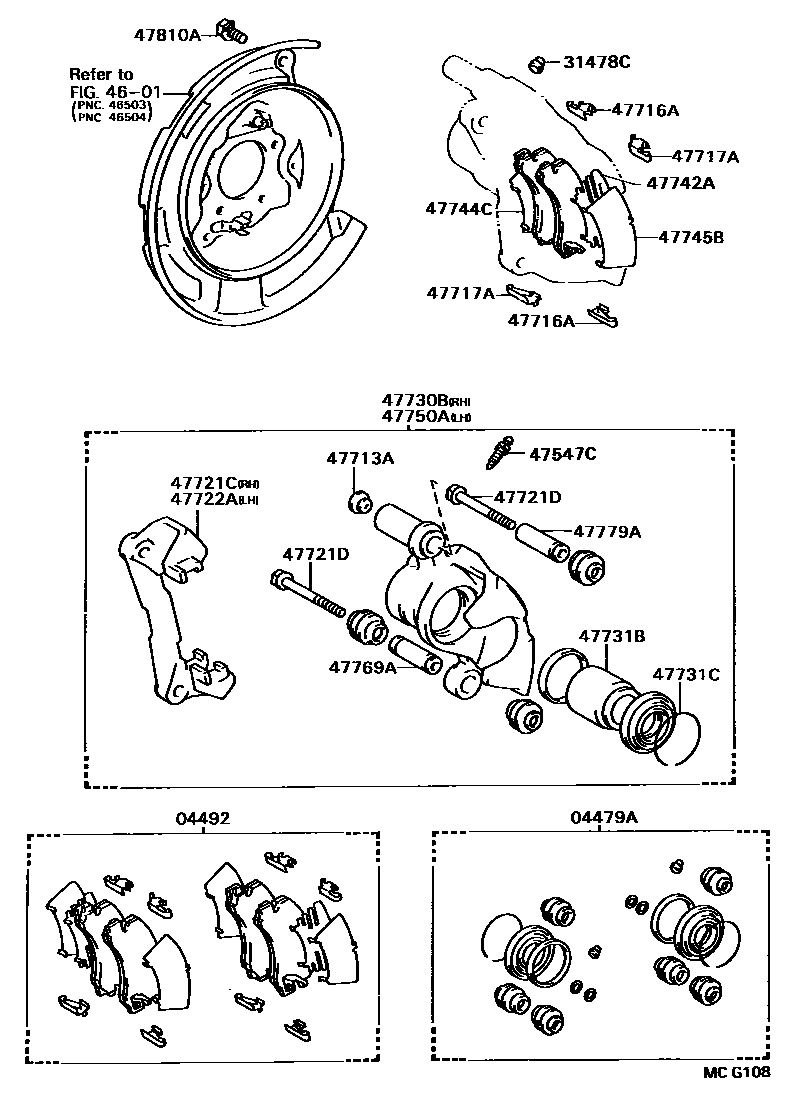

REAR DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-32040iSV21,25,VZV20198808-199007

04492PAD KIT, DISC BRAKE, REAR

main04492-20030iSV25198808-199007

sub04466-20080

main04492-20050iSV21,VZV20198808-198908

sub04492-20051

main04492-32060iSV21,VZV20198908-198910

sub04492-32061

main04492-32061iSV21,VZV20198910-199007

sub04492-20090

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-30010iSV21,25,VZV20198808-199007

4601

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47547-20010iSV21,25,VZV20198808-199007

47713APLUG, HOLE(FOR REAR DISC BRAKE CYLINDER)

main90950-01538iSV21,25,VZV20198808-199007

47716APLATE, PAD SUPPORT, NO.1(FOR REAR DISC BRAKE)

main47716-32020iSV25198808-199007

sub47716-33070

47717APLATE, PAD SUPPORT, NO.2(FOR REAR DISC BRAKE)

main47717-32020iSV21,25,VZV20198808-199007

sub47717-33050

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47721-32040iSV21,25,VZV20198808-199007

sub47721-33070

sub47715-33020

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90105-08133iSV21,25,VZV20198808-199007

main90119-08547iSV21,25,VZV20198808-199007

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47721-32040iSV21,25,VZV20198808-199007

sub47721-33070

sub47715-33020

47730BCYLINDER ASSY, REAR DISC BRAKE, RH

main47730-32050iSV21,25,VZV20198808-199007

sub47730-32140

47731BPISTON, REAR DISC BRAKE

main47731-32030iSV21,25,VZV20198808-199007

47731CRING, SET(FOR REAR DISC BRAKE PISTON)

main90522-43002iSV21,25,VZV20198808-199007

47742ASHIM, ANTI-SQUEAL, NO.3(FOR REAR DISC BRAKE)

main47742-32031iSV21,25,VZV20198808-198910

47744CSHIM, ANTI-SQUEAL, NO.1(FOR REAR DISC BRAKE)

main47744-32021iSV21,25,VZV20198808-199007

47745BSHIM, ANTI-SQUEAL, NO.2(FOR REAR DISC BRAKE)

main47745-32030iSV21,25,VZV20198808-198910

47750ACYLINDER ASSY, DISC BRAKE, REAR LH

main47750-32050iSV21,25,VZV20198808-199007

sub47750-32140

47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)

main47769-32020iSV21,25,VZV20198808-199007

47779ABUSH, CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)

main47779-32020iSV21,25,VZV20198808-199007

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90119-10379iSV21,VZV20198808-199007

main90119-10445iSV25198808-199007

21 parts on this diagram · 2 diagrams in section
