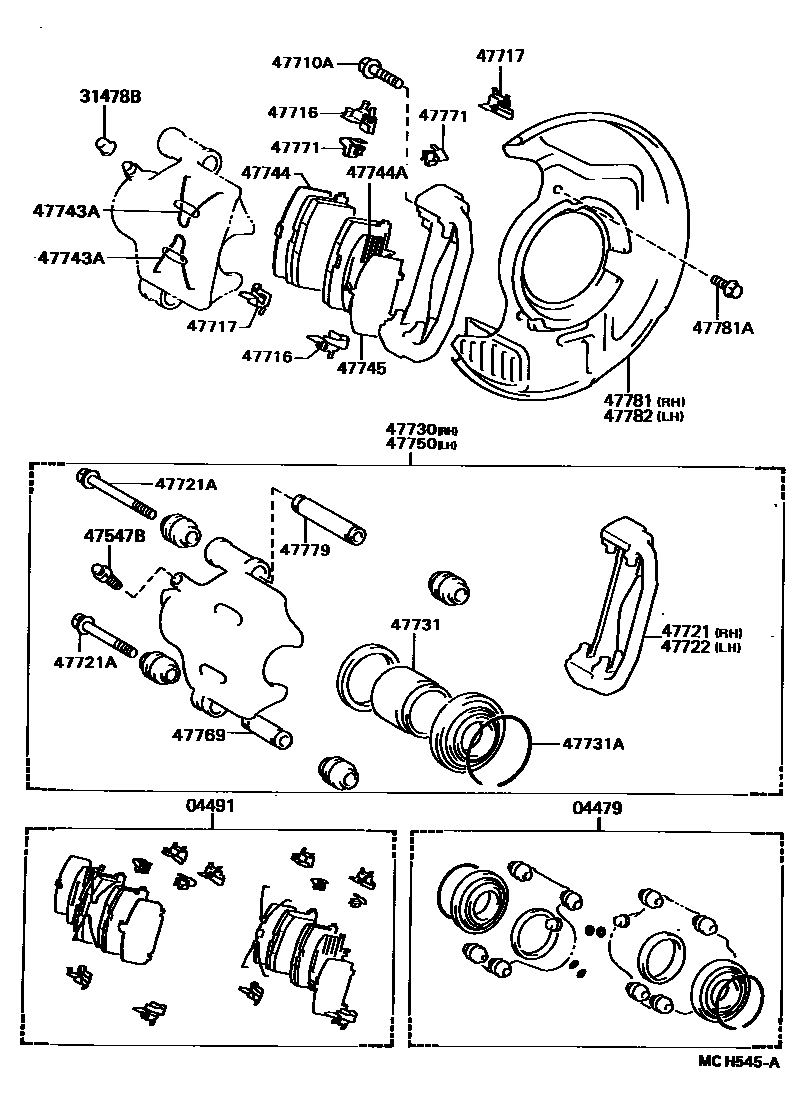

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32021iCV20,SV22198808-199007

main04479-32030iSV21,25,VZV20198808-199007

04491PAD KIT, DISC BRAKE, FRONT

main04491-32120iCV20,SV22198808-198812

sub04491-32121

main04491-32121iCV20,SV22198812-198911

sub04491-32122

main04491-32122iCV20,SV22198911-199007

sub04491-32123

main04491-32200iSV25,VZV20198808-198812

sub04491-32201

main04491-32201iSV25,VZV20198812-198907

sub04465-32091

main04491-32300iSV21198808-198812

sub04491-32301

main04491-32301iSV21198812-199007

sub04465-32050

main04491-32350iSV25,VZV20198907-199007

sub04465-32110

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCV20,SV2#,VZV20198808-199007

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCV20,SV2#,VZV20198808-199007

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iCV20,SV2#,VZV20198808-199007

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32030iCV20,SV22198808-198812

sub47716-32031

main47716-32031iCV20,SV22198812-199007

main47716-32040iSV21,25,VZV20198808-198812

sub47716-32041

main47716-32041iSV21,25,VZV20198812-199007

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32030iCV20,SV22198808-198812

sub47717-32031

main47717-32031iCV20,SV22198812-199007

main47717-32040iSV21,25,VZV20198808-198812

sub47717-32041

main47717-32041iSV21,25,VZV20198812-199007

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20140iSV25,VZV20198808-199007

main47721-32060iSV21198808-199007

main47721-32080iCV20,SV22198808-199007

sub47721-20340

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iCV20,SV22198808-199007

main90119-09004iCV20,SV22198808-199007

main90119-10014iSV21,25,VZV20198808-199007

main90119-10249iSV21,25,VZV20198808-199007

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20140iSV25,VZV20198808-199007

main47721-32060iSV21198808-199007

main47721-32080iCV20,SV22198808-199007

sub47721-20340

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20240iSV25,VZV20198808-199007

main47730-32070iSV21198808-199007

main47730-32090iCV20,SV22198808-199007

47731PISTON, FRONT DISC BRAKE

main47731-12130iCV20,SV22198808-199007

main47731-32040iSV21,25,VZV20198808-199007

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iCV20,SV22198808-199007

main90522-66001iSV21,25,VZV20198808-199007

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020iSV21198808-199007

main47743-32030iSV25,VZV20198808-199007

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16011iCV20,SV22198808-199007

sub47744-32010

main47744-32041iSV21,25,VZV20198808-199007

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-17010iCV20,SV22198808-198812

main47742-32022iSV21,25,VZV20198812-199007

main47742-32040iCV20,SV22198812-199007

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-17020iCV20,SV22198808-198812

main47745-32021iSV21,25,VZV20198812-199007

main47745-32040iCV20,SV22198812-199007

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20230iSV25,VZV20198808-199007

main47750-32070iSV21198808-199007

main47750-32090iCV20,SV22198808-199007

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-12030iCV20,SV22198808-199007

main47769-40010iSV21,25,VZV20198808-199007

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iCV20,SV22198808-199007

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-16010iCV20,SV22198808-199007

main47779-40010iSV21,25,VZV20198808-199007

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32011iSV21,25,VZV20198808-198901

sub47703-32040

main47703-32020iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-198901

sub47703-32021

main47703-32021iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198901-199007

main47703-32040iSV21,25,VZV20198901-199007

main47703-32060iCV20,SV22198904-199007

main47781-32020iCV20,SV22198808-198904

sub47703-32060

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCV20,SV2#,VZV20198808-199007

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32011iSV21,25,VZV20198808-198901

sub47704-32040

main47704-32020iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-198901

sub47704-32021

main47704-32021iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198901-199007

main47704-32040iSV21,25,VZV20198901-199007

main47704-32060iCV20,SV22198904-199007

main47782-32020iCV20,SV22198808-198904

sub47704-32060

24 parts on this diagram · 2 diagrams in section
