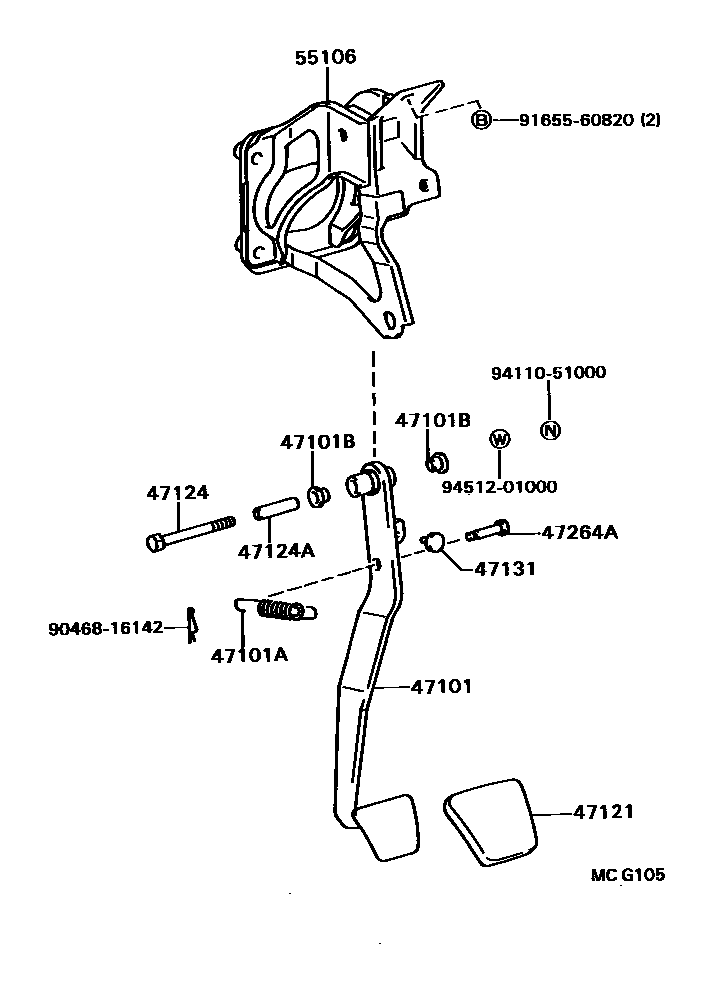

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-32091iCV20,SV2#,VZV20..5F198808-199007

main47101-32101iCV20,SV2#,VZV20..4FC198808-199007

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iCV20,SV2#,VZV20198808-199007

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iCV20,SV2#,VZV20198808-199007

47121PAD, BRAKE PEDAL

main31321-14020iCV20,SV2#,VZV20..5F198808-199007

main47121-14010iCV20,SV2#,VZV20..4FC198808-199007

47124SHAFT, BRAKE PEDAL

main90101-10039iCV20,SV2#,VZV20198808-199007

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iCV20,SV2#,VZV20198808-199007

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06032iCV20,SV2#,VZV20198808-199007

sub90541-06036

47264APIN(FOR PUSH ROD)

main90249-08051iCV20,SV2#,VZV20198808-199007

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-32030iCV20,SV2#,VZV20198808-199007

9046816142

main90468-16142

9165560820

main91655-60820

9411051000

main94110-51000

9451201000

main94512-01000

13 parts on this diagram · 1 diagram in section
