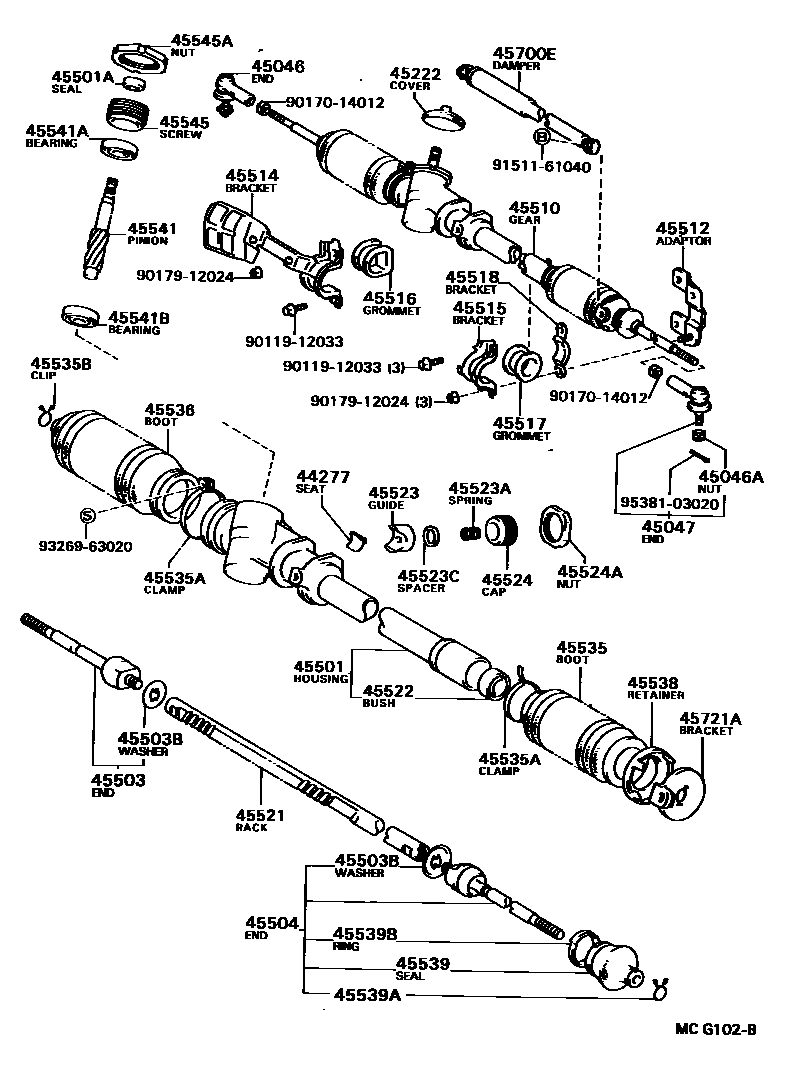

FRONT STEERING GEAR & LINK

0001 1 0002 1����� ������ ���� �� 0003 1����� ������ ���� �� 0004 1���� ���� �� 0005 1���� ���� ��

44277SEAT, RACK GUIDE

main44277-20030iSV22..LT,VC198808-199007

main44277-24010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

45046END SUB-ASSY, TIE ROD, RH

main45046-19175iCV20,SV2#,VZV20198808-199007

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-12028iCV20,SV2#,VZV20198808-199007

45047END SUB-ASSY, TIE ROD, LH

main45046-19175iCV20,SV2#,VZV20198808-199007

45222COVER, STEERING GEAR DUST

main45222-20010iSV22..LT,VC198808-199007

main45222-32010iVZV20..HT198905-199007

main45222-32010iVZV20..HT198808-198905

main45222-32010iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main45222-32020iSV21,VZV20..PRO,VX,ZX198808-199007

45501HOUSING SUB-ASSY, STEERING RACK

main45501-32050iSV22..LT,VC198808-199007

45501ASEAL, TYPE T OIL(FOR STEERING RACK HOUSING)

main90311-15001iSV22..LT,VC198808-199007

sub90311-15002

45503END SUB-ASSY, STEERING RACK

main45503-29105iSV22..LT,VC198808-199007

sub45503-39025

main45503-39025iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-14002iSV22..LT,VC198808-199007

main90214-14002iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main90214-14004iSV22..LT,VC198808-199007

END NO.2

45504END SUB-ASSY, STEERING RACK, NO.2

main45504-39015iSV22..LT,VC198808-199007

45510GEAR ASSY, STEERING

main45510-32050iSV22..LT,VC198808-199007

45512ADAPTER, STEERING RACK HOUSING

main45512-32010iSV22..LT,VC198808-199007

45514BRACKET, STEERING RACK HOUSING, NO.1

main45514-32060iSV22..LT,VC198808-199007

main45514-32080iSV21..VX,ZX198808-199007

main45514-32090iVZV20..HT198808-198905

main45514-32090iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main45514-32090iVZV20..HT198905-199007

main45514-32110iVZV20198808-199007

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-32070iSV22..LT,VC198808-199007

main45515-32080iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

45516GROMMET, STEERING RACK HOUSING, NO.1

main45516-32020iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main45516-32030iSV22..LT,VC198808-199007

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-32020iSV22..LT,VC198808-199007

main45517-32030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199005

main45517-32050iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX199005-199007

45518BRACKET, STEERING RACK HOUSING, NO.3

main45518-32040iSV22..LT,VC198808-199007

45521RACK, STEERING

main45521-32051iSV22..LT,VC198808-199007

45522BUSH, STEERING RACK

main45522-22011iSV22..LT,VC198808-199007

45523GUIDE, RACK(FOR STEERING GEAR)

main45523-22020iSV22..LT,VC198808-199007

main45523-24010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub45523-20040

sub44277-20040

sub45524-50010

sub90501-23007

sub90501-29036

45523ASPRING(FOR STEERING GEAR RACK GUIDE)

main90501-23023iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub90501-29016

main90501-32023iSV22..LT,VC198808-199007

45523CSPACER(FOR RACK GUIDE)

main90560-23007iSV22..LT,VC198808-199007

45524CAP, STEERING RACK GUIDE SPRING

main45524-16010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main45524-22010iSV22..LT,VC198808-199007

45524ANUT(FOR STEERING RACK GUIDE SPRING CAP)

main90179-36002iCV20,SV2#,VZV20198808-199007

45535BOOT, STEERING RACK, NO.1

main45535-20050iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main45535-32050iSV22..LT,VC198808-199007

45535ACLAMP(FOR STEERING RACK BOOT)

main90461-10524iSV22..LT,VC198808-199007

BOOT NO.2

main90461-10709iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

BOOT NO.2

main90949-01021iSV22..LT,VC198808-199007

BOOT NO.1

main90949-01082iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

BOOT NO.1

45535BCLIP(FOR STEERING RACK BOOT)

main90467-18003iSV22..LT,VC198808-199007

45536BOOT, STEERING RACK, NO.2

main45535-32030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main45536-14020iSV22..LT,VC198808-199007

45538RETAINER, STEERING RACK BOOT

main45538-32010iSV22..LT,VC198808-199007

45539GUIDE, REAR STEERING CONTROL CABLE, NO.1

main45539-32020iSV22..LT,VC198808-199007

45539ACLIP(FOR RACK END DUST SEAL)

main90467-18003iSV22..LT,VC198808-199007

45539BRING, SET(FOR RACK END DUST SEAL)

main90522-32011iSV22..LT,VC198808-199007

45541PINION, STEERING

main45541-32050iSV22..LT,VC198808-199007

45541ABEARING, RADIAL BALL(FOR STEERING PINION UPPER)

main90363-15006iSV22..LT,VC198808-199007

45541BBEARING, RADIAL BALL(FOR STEERING PINION LOWER)

main90363-15005iSV22..LT,VC198808-199007

45545SCREW, PINION BEARING ADJUSTING

main45545-22020iSV22..LT,VC198808-199007

45545ANUT(FOR PINION BEARING ADJUSTING SCREW)

main90179-42001iSV22..LT,VC198808-199007

45700EDAMPER ASSY, STEERING

main45700-32030iSV22..LT,VC198808-199007

45721ABRACKET, STEERING DAMPER, NO.2

main45721-32030iSV22..LT,VC198808-199007

9011912033

main90119-12033

9017014012

main90170-14012

9017912024

main90179-12024

9151161040

main91511-61040

9326963020

main93269-63020

9538103020

main95381-03020

45 parts on this diagram · 5 diagrams in section
