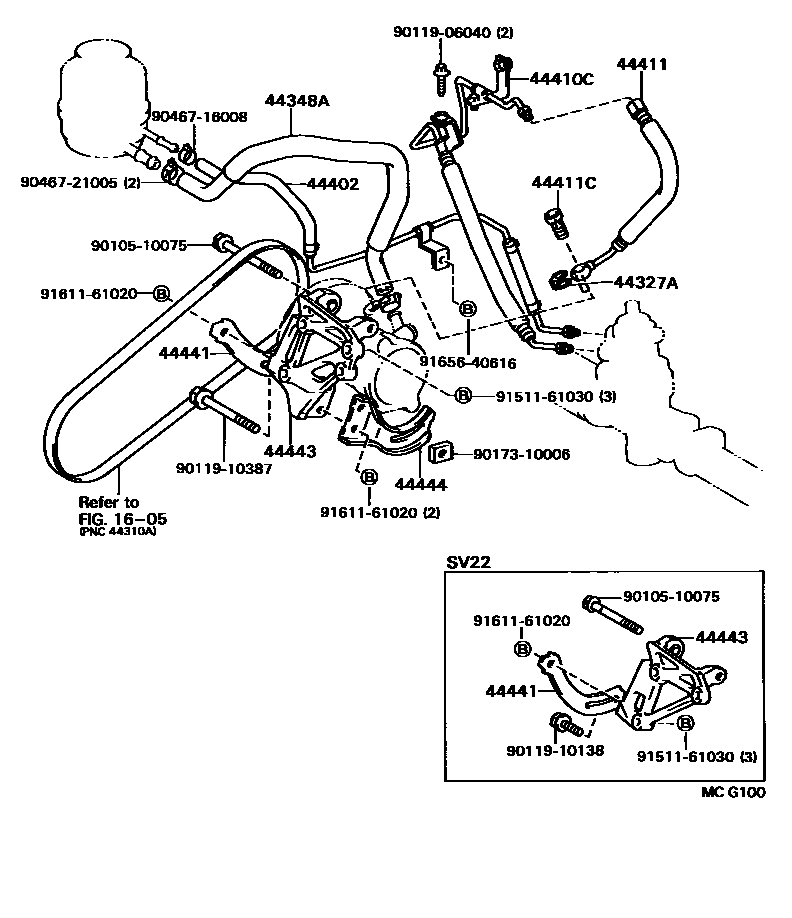

POWER STEERING TUBE

0001 1 0002 1PROGRESSIBLE TYPE 0003 1 0004 1�������E ���� OR �������X ���0005 1 0006 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

VANE PUMP SIDE

main44327-12010iVZV20..HT198808-199007

main44327-12020iSV21,VZV20..PRO,VX,ZX198808-199007

GEAR SIDE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32100iSV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44348-32110iCV20198808-199007

main44348-32120iVZV20198808-199007

sub44348-32090

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-32110iSV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44402-32130iVZV20..SED;SV21..VX,ZX198808-199007

main44402-32140iVZV20..HT198808-198907

main44402-32150iVZV20..HT198907-199007

44410TUBE ASSY, PRESSURE FEED

main44410-32390iVZV20..HT198808-199007

sub44410-32391

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-32190iVZV20198808-199007

sub44410-32191

main44410-32310iCV20198808-199007

sub44410-32311

main44410-32350iSV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44410-32360iSV21..GT198808-199007

44411HOSE, PRESSURE FEED

main44411-32060iVZV20198808-199007

sub44411-32061

main44411-32080iVZV20..HT198808-198905

sub44411-32081

main44411-32080iVZV20..HT198905-199007

sub44411-32081

main44411-32090iSV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

sub44411-32100

main44411-32100iSV21..GT198808-199007

sub44411-32180

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44441BRACKET, PUMP, FRONT

main44441-32010iSV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44443BRACKET, PUMP

main44443-20050iSV21,25198808-199007

main44443-20060iSV22..LUM,VE,VL,VR,XT,ZE198808-199007

sub44443-20050

main44443-32041iVZV20198808-199007

44444STAY, PUMP, REAR

main44444-20030iSV21,25198808-199007

9010510075

main90105-10075

9011906040

main90119-06040

9011910138

main90119-10138

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9046721005

main90467-21005

9151161030

main91511-61030

9161161020

main91611-61020

9165640616

main91656-40616

21 parts on this diagram · 6 diagrams in section
