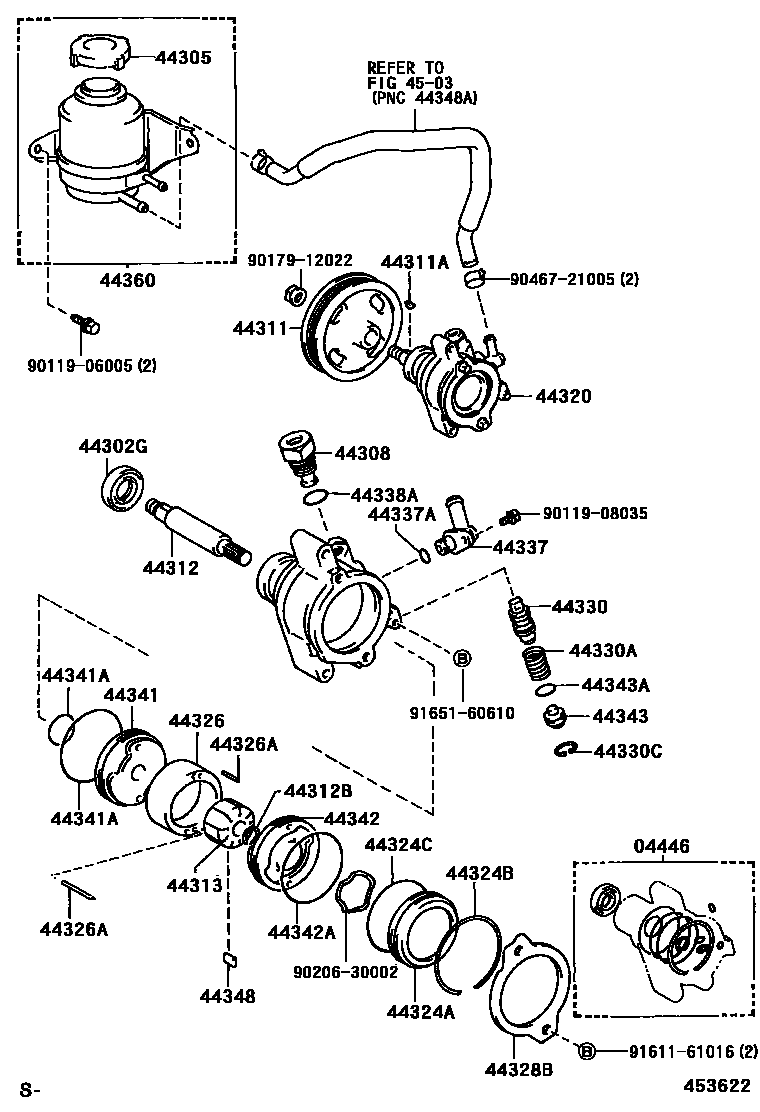

VANE PUMP & RESERVOIR (POWER STEERING)

0001 1 0002 1

04446GASKET KIT, POWER STEERING PUMP

main04446-20030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub04446-20031

44302GSEAL, OIL, NO.2(FOR VANE PUMP HOUSING)

main90311-18007iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44305CAP SUB-ASSY, VANE PUMP OIL RESERVOIR

main44305-22030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199001

sub44305-22050

main44305-32030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX199001-199007

sub44305-28050

44308UNION SUB-ASSY, PRESSURE PORT

main44308-22050iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44308-32030iVZV20..HT198808-198905

sub44308-22050

main44308-32030iVZV20..HT198905-199007

sub44308-22050

main44308-32030iSV22..LUM,VE,VL,VR,XT,ZE198808-199007

sub44308-22050

main44308-32040iCV20,VZV20;SV21..VX,ZX198808-199007

44311PULLEY, VANE PUMP

main44311-20060iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44311-32020iSV21..VX,ZX;SV22..LUM,VE,VL,VR,XT,ZE198808-199007

sub44311-20060

main44311-32030iCV20198808-199007

sub44311-12030

main44311-32040iVZV20198808-199007

44311AKEY, VANE PUMP PULLEY

main90280-05008iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44312SHAFT, VANE PUMP

main44312-12030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44312BRING, SNAP, NO.1(FOR VANE PUMP SHAFT)

main90520-10003iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44313ROTOR, VANE PUMP

main44313-22040iVZV20..HT198808-198905

main44313-22040iVZV20..HT198905-199007

main44313-22040iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44313-22050iVZV20..HT198905-199007

main44313-22050iVZV20..HT198808-198905

main44313-22050iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44313-22060iVZV20..HT198905-199007

main44313-22060iVZV20..HT198808-198905

main44313-22060iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44313-22070iVZV20..HT198905-199007

main44313-22070iVZV20..HT198808-198905

main44313-22070iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44313-22080iVZV20..HT198905-199007

main44313-22080iVZV20..HT198808-198905

main44313-22080iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44313-32010iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32010iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32020iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32020iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32030iSV21..GT198808-199007

main44313-32030iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32040iSV21..GT198808-199007

main44313-32040iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32050iSV21,VZV20..PRO,VX,ZX198808-199007

main44313-32050iSV21..GT198808-199007

44320PUMP ASSY, VANE

main44320-32031iSV22..LUM,VE,VL,VR,XT,ZE198808-199007

main44320-32041iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44320-32051iCV20198808-199007

main44320-32071iSV21..GT198808-199007

main44320-32111iVZV20198808-199007

main44320-32121iVZV20..HT198905-198908

main44320-32121iVZV20..HT198808-198905

main44320-32140iVZV20..HT198908-199007

44324AHOUSING, PUMP, REAR

main44324-12031iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44324BRING, HOLE SNAP(FOR PUMP HOUSING REAR)

main90521-62002iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44324CRING, O(FOR PUMP HOUSING REAR)

main90301-52001iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44326RING, CAM(FOR VANE PUMP)

main44325-30100iVZV20..HT198808-198905

main44325-30100iVZV20..HT198905-199007

main44325-30100iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44325-30110iVZV20..HT198905-199007

main44325-30110iVZV20..HT198808-198905

main44325-30110iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44325-30120iVZV20..HT198905-199007

main44325-30120iVZV20..HT198808-198905

main44325-30120iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44325-30130iVZV20..HT198905-199007

main44325-30130iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44325-30130iVZV20..HT198808-198905

main44325-30140iVZV20..HT198905-199007

main44325-30140iVZV20..HT198808-198905

main44325-30140iCV20,SV2#..GT,LUM,VE,VL,VR,XT,ZE198808-199007

main44325-32010iSV21,VZV20..PRO,VX,ZX198808-199007

main44325-32010iSV21..GT198808-199007

main44325-32020iSV21,VZV20..PRO,VX,ZX198808-199007

main44325-32020iSV21..GT198808-199007

main44325-32030iSV21..GT198808-199007

main44325-32030iSV21,VZV20..PRO,VX,ZX198808-199007

main44325-32040iSV21..GT198808-199007

main44325-32040iSV21..GT198808-199007

main44325-32050iSV21..GT198808-199007

main44325-32050iSV21,VZV20..PRO,VX,ZX198808-199007

44326APIN, STRAIGHT(FOR VANE PUMP CAM RING)

main90250-04047iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main90250-04049iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44328BEND, VANE PUMP HOUSING

main44328-35010iVZV20..HT198908-199007

44330VALVE ASSY, FLOW CONTROL

main44330-12130iCV20198808-198906

sub44330-12131

main44330-12130iVZV20..HT198808-198905

sub44330-12131

main44330-12130iVZV20..HT198905-198906

sub44330-12131

main44330-12131iVZV20..HT198906-198912

sub44330-32670

main44330-12131iCV20198906-199007

sub44330-32670

main44330-12140iVZV20..HT198808-198905

sub44330-12141

main44330-12140iCV20198808-198906

sub44330-12141

main44330-12140iVZV20..HT198905-198906

sub44330-12141

main44330-12141iCV20198906-199007

sub44330-32680

main44330-12141iVZV20..HT198906-198912

sub44330-32680

main44330-12150iVZV20..HT198905-198906

sub44330-12151

main44330-12150iCV20198808-198906

sub44330-12151

main44330-12150iVZV20..HT198808-198905

sub44330-12151

main44330-12151iVZV20..HT198906-198912

sub44330-32690

main44330-12151iCV20198906-199007

sub44330-32690

main44330-12160iVZV20..HT198808-198905

sub44330-12161

main44330-12160iCV20198808-198906

sub44330-12161

main44330-12160iVZV20..HT198905-198906

sub44330-12161

main44330-12161iCV20198906-199007

sub44330-32700

main44330-12161iVZV20..HT198906-198912

sub44330-32700

main44330-12170iVZV20..HT198808-198905

sub44330-12171

main44330-12170iCV20198808-198906

sub44330-12171

main44330-12170iVZV20..HT198905-198906

sub44330-12171

main44330-12171iVZV20..HT198906-198912

sub44330-32710

main44330-12171iCV20198906-199007

sub44330-32710

main44330-12180iCV20198808-198906

sub44330-12181

main44330-12180iVZV20..HT198905-198906

sub44330-12181

main44330-12180iVZV20..HT198808-198905

sub44330-12181

main44330-12181iVZV20..HT198906-198912

sub44330-32720

main44330-12181iCV20198906-199007

sub44330-32720

main44330-14010iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-198812

sub44330-20010

main44330-14020iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-198812

sub44330-20020

main44330-14030iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-198812

sub44330-20030

main44330-14040iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-198812

sub44330-20040

main44330-14050iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-198812

sub44330-20050

main44330-14060iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198808-198812

sub44330-20060

main44330-16070iSV22..LUM,VE,VL,VR,XT,ZE198808-198906

sub44330-16071

main44330-16071iSV22..LUM,VE,VL,VR,XT,ZE198906-199007

main44330-16080iSV22..LUM,VE,VL,VR,XT,ZE198808-198906

sub44330-16081

main44330-16081iSV22..LUM,VE,VL,VR,XT,ZE198906-199007

main44330-16090iSV22..LUM,VE,VL,VR,XT,ZE198808-198906

sub44330-16091

main44330-16091iSV22..LUM,VE,VL,VR,XT,ZE198906-199007

main44330-16100iSV22..LUM,VE,VL,VR,XT,ZE198808-198906

sub44330-16101

main44330-16101iSV22..LUM,VE,VL,VR,XT,ZE198906-199007

main44330-16110iSV22..LUM,VE,VL,VR,XT,ZE198808-198906

sub44330-16111

main44330-16111iSV22..LUM,VE,VL,VR,XT,ZE198906-199007

main44330-16120iSV22..LUM,VE,VL,VR,XT,ZE198808-198906

sub44330-16121

main44330-16121iSV22..LUM,VE,VL,VR,XT,ZE198906-199007

main44330-20010iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198812-199007

sub44330-35191

main44330-20020iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198812-199007

sub44330-35201

main44330-20030iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198812-199007

sub44330-35211

main44330-20040iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198812-199007

sub44330-35221

main44330-20050iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198812-199007

sub44330-35231

main44330-20060iSV21,25..GT,LUM,VE,VL,VR,XT,ZE198812-199007

sub44330-35241

main44330-30100iVZV20198808-198812

sub44330-32130

main44330-30110iVZV20198808-198812

sub44330-32140

main44330-30120iVZV20198808-198812

sub44330-32150

main44330-30130iVZV20198808-198812

sub44330-32160

main44330-30140iVZV20198808-198812

sub44330-32170

main44330-30150iVZV20198808-198812

sub44330-32180

main44330-32070iSV21..GT198812-199007

sub44330-35191

main44330-32070iSV21..GT198812-199007

sub44330-35191

main44330-32080iSV21..VX,ZX198812-199007

sub44330-35201

main44330-32080iSV21..VX,ZX198812-199007

sub44330-35201

main44330-32090iSV21..VX,ZX198812-199007

sub44330-35211

main44330-32090iSV21..VX,ZX198812-199007

sub44330-35211

main44330-32100iSV21..GT198812-199007

sub44330-35221

main44330-32100iSV21..GT198812-199007

sub44330-35221

main44330-32110iSV21..VX,ZX198812-199007

sub44330-35231

main44330-32110iSV21..VX,ZX198812-199007

sub44330-35231

main44330-32120iSV21..VX,ZX198812-199007

sub44330-35241

main44330-32120iSV21..VX,ZX198812-199007

sub44330-35241

main44330-32130iVZV20198812-199007

sub44330-32670

main44330-32140iVZV20198812-199007

sub44330-32680

main44330-32150iVZV20198812-199007

sub44330-32690

main44330-32160iVZV20198812-199007

sub44330-32700

main44330-32170iVZV20198812-199007

sub44330-32710

main44330-32180iVZV20198812-199007

sub44330-32720

main44330-35070iSV21..GT198808-198812

sub44330-32070

main44330-35070iSV21..VX,ZX198808-198812

sub44330-32070

main44330-35080iSV21..VX,ZX198808-198812

sub44330-32080

main44330-35080iSV21..GT198808-198812

sub44330-32080

main44330-35090iSV21..VX,ZX198808-198812

sub44330-32090

main44330-35090iSV21..GT198808-198812

sub44330-32090

main44330-35100iSV21..VX,ZX198808-198812

sub44330-32100

main44330-35100iSV21..GT198808-198812

sub44330-32100

main44330-35110iSV21..VX,ZX198808-198812

sub44330-32110

main44330-35110iSV21..GT198808-198812

sub44330-32110

main44330-35120iSV21..VX,ZX198808-198812

sub44330-32120

main44330-35120iSV21..GT198808-198812

sub44330-32120

main44330-35131iVZV20..HT198912-199007

sub44330-32670

main44330-35141iVZV20..HT198912-199007

sub44330-32680

main44330-35151iVZV20..HT198912-199007

sub44330-32690

main44330-35161iVZV20..HT198912-199007

sub44330-32700

main44330-35171iVZV20..HT198912-199007

sub44330-32710

main44330-35181iVZV20..HT198912-199007

sub44330-32720

44330ASPRING, COMPRESSION(FOR FLOW CONTROL VALVE)

main90501-12103iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44330CRING, SNAP(FOR FLOW CONTROL VALVE)

main96151-01700iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44337UNION, POWER STEERING SUCTION PORT

main44337-12010iCV20198808-199007

main44337-12030iSV2#..GT,LUM,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44337-32040iVZV20198808-199007

44337ARING, O(FOR POWER STEERING SUCTION PORT)

main90301-12003iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub90301-11016

44338ARING, O(FOR PRESSURE PORT UNION)

main90301-19003iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub90301-19013

44341PLATE, VANE PUMP SIDE, FRONT

main44341-32010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44341ARING, O(FOR VANE PUMP FRONT SIDE PLATE)

main90301-25001iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

sub90301-25008

main90301-52001iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44342PLATE, VANE PUMP SIDE, REAR

main44342-32010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44342ARING, O(FOR VANE PUMP SIDE PLATE REAR)

main90301-52001iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44343SEAT, FLOW CONTROL SPRING

main44343-12010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44343-12040iVZV20..HT198905-199007

main44343-12040iVZV20..HT198808-198905

44343ARING, O(FOR FLOW CONTROL SPRING SEAT)

main96711-19014iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44348PLATE, VANE PUMP

main44345-12010iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44345-12020iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44345-12030iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44345-12040iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

main44345-12050iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199007

44360RESERVOIR ASSY, VANE PUMP OIL

main44360-32040iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX198808-199001

sub44360-32080

main44360-32080iCV20,SV2#,VZV20..GT,LUM,PRO,VE,VL,VR,VX,XT,ZE,ZX199001-199007

4503

9011906005

main90119-06005

9011908035

main90119-08035

9017912022

main90179-12022

9020630002

main90206-30002

9046721005

main90467-21005

9161161016

main91611-61016

9165160610

main91651-60610

38 parts on this diagram · 2 diagrams in section
