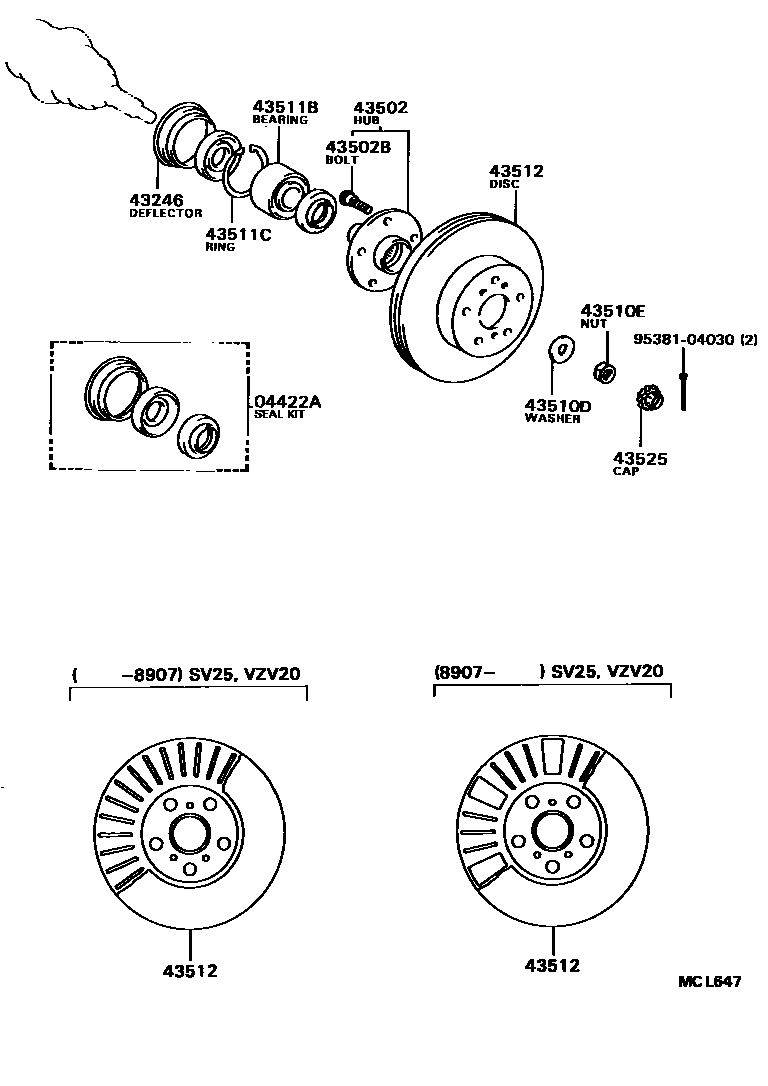

FRONT AXLE HUB

04422ASEAL KIT, FRONT AXLE OIL

main04422-32010iCV20,SV2#,VZV20198808-199007

43246DEFLECTOR, FRONT WHEEL BEARING DUST, NO.1

main43246-32011iCV20,SV2#,VZV20198808-199007

43502HUB SUB-ASSY, FRONT AXLE

main43502-32040iCV20,SV2#,VZV20198808-198908

sub43502-32050

main43502-32050iCV20,SV2#,VZV20198908-199007

main43503-32010iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198808-198908

sub43503-32020

main43503-32020iSV21,25,VZV20..GT,PRO,VL,VR,VX,XT,ZE,ZX198908-199007

43502BBOLT, HUB (FOR FRONT AXLE)

main90942-02049iCV20,SV2#,VZV20198808-199007

43510DWASHER, CLAW (FOR STEERING KNUCKLE WASHER)

main90201-20012iCV20,SV2#,VZV20198808-199007

43510ENUT (FOR STEERING KNUCKLE)

main90170-19001iCV20,SV2#,VZV20198808-199007

43511BBEARING (FOR FRONT AXLE HUB)

main90369-38003iCV20,SV2#,VZV20198808-199007

43511CRING, HOLE SNAP (FOR FRONT AXLE HUB)

main90521-79002iCV20,SV2#,VZV20198808-199007

main90521-79003iCV20,SV2#,VZV20198808-199007

main90521-79004iCV20,SV2#,VZV20198808-199007

main90521-79005iCV20,SV2#,VZV20198808-199007

main90521-79006iCV20,SV2#,VZV20198808-199007

43512DISC, FRONT

main43512-32080iCV20,SV22198808-199007

main43512-32090iSV21198808-199007

sub43512-32170

main43512-32120iSV25,VZV20198808-198907

sub43512-32200

main43512-32200iSV25,VZV20198907-199007

43525CAP, FRONT WHEEL ADJUSTING LOCK

main43525-16010iCV20,SV2#,VZV20198808-199007

9538104030

main95381-04030

11 parts on this diagram · 1 diagram in section
