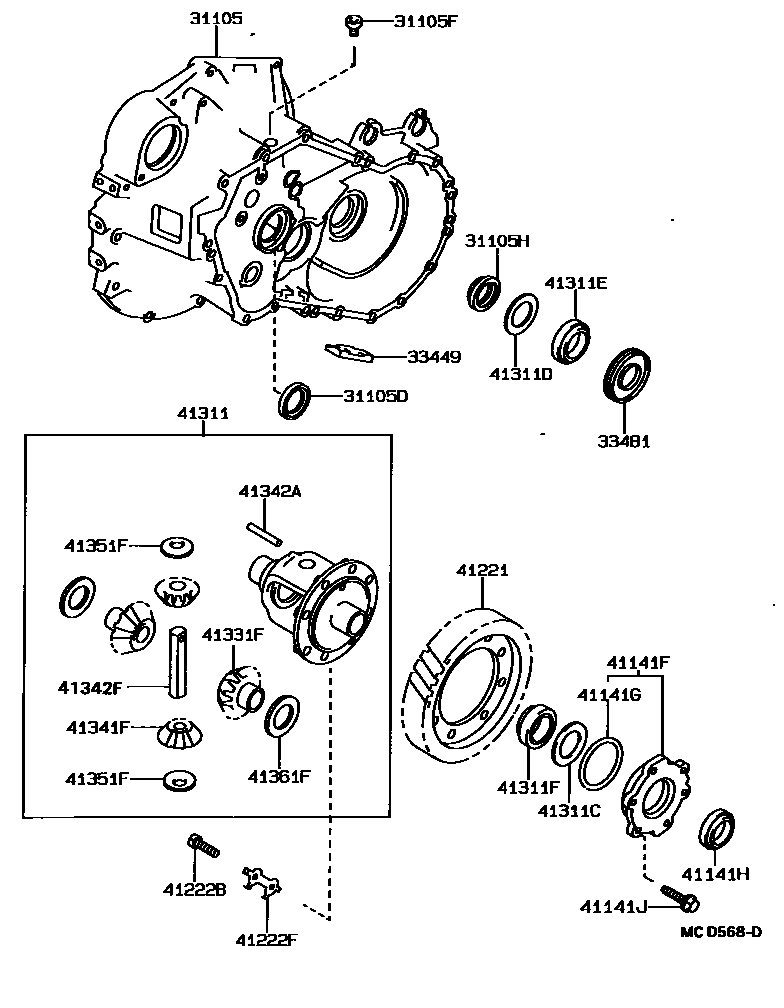

FRONT AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1 0003 1E56F2,��(ESC) 0004 1 0005 1E56F5 0006 1

31105CASE SUB-ASSY, TRANSAXLE(MTM)

main31105-32014iCV20..5F;SV21..5F..GT198808-199004

sub31105-32051

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32020iSV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199004

sub31105-32061

sub33134-32020

sub33326-32020

sub90560-42001

sub90560-48002

main31105-32050iCV20..5F;SV21..5F..GT199004-199007

sub31105-32051

sub90560-42001

main31105-32060iSV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199004-199007

sub31105-32061

sub90560-42001

31105DSEAL, OIL, NO.1(FOR FRONT TRANSAXLE CASE)

main90311-30002iCV20,SV21,22..5F198808-199005

sub90311-30006

main90311-30006iSV25,VZV20..5F198808-199007

sub90311-30017

31105FPLUG(FOR TRANSAXLE CASE)

main90341-10065iCV20,SV21,22..5F198808-199007

31105HSEAL, OIL, NO.2(FOR TRANSAXLE CASE)

main90311-35014iCV20,SV21,22..5F198808-199005

sub90311-35026

main90311-35026iCV20,SV21,22..5F198808-199007

sub90311-35019

33449MAGNET, TRANSMISSION

main33449-20010iSV25,VZV20..5F198808-199007

main33449-32010iCV20,SV21,22..5F198808-199007

sub33449-32020

33481GEAR, SPEEDOMETER DRIVE (MTM)

main33481-12080iSV25..5F198910-199007

main33481-17010iVZV20..5F198808-199007

main33481-20120iSV25..5F198808-198910

main33481-20130iSV25..5F198910-199007

main33481-32010iCV20,SV22..5F198808-199004

main33481-32020iSV21..5F198808-199004

main33481-32030iSV25..5F198808-198910

main33481-32060iCV20,SV22..5F199004-199007

main33481-32070iSV21..5F199004-199007

41141FRETAINER, FRONT DIFFERENTIAL SIDE BEARING

main41101-32010iCV20,SV21,22..5F198808-199007

sub41101-32011

sub90311-35048

main41101-32030iSV25..4FC198808-199007

main41141-32041iCV20,SV21,22,VZV20..4FC198808-199007

41141GRING, O(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90301-63004iCV20,SV21,22..5F198808-199007

main90301-99018iCV20,SV21,22,VZV20..4FC198808-199007

41141HSEAL, OIL(FOR DIFFERENTIAL SIDE BEARING RETAINER)

main90311-35014iCV20,SV21,22..5F198808-199005

sub90311-35026

main90311-35019iCV20,SV21,22,VZV20..4FC198808-199007

main90311-35026iCV20,SV21,22..5F199005-199007

sub90311-35019

main90311-44003iSV25..4FC198808-199007

41141JBOLT(FOR FRONT DIFFERENTIAL SIDE BEARING RETAINER)

main90105-08061iCV20,SV21,22..5F198808-199007

sub91511-C0825

main90105-08155iSV25..4FC198808-199007

sub90105-08331

main91611-60825iCV20,SV21,22,VZV20..4FC198808-199007

sub91611-B0825

41221GEAR, FRONT DIFFERENTIAL RING

main41221-12260iSV25..5F198808-199007

main41221-20220iSV21..5F..GT198808-199005

main41221-20240iVZV20..5F198808-199007

main41221-32030iCV20,SV22..5F;SV21..LUM,VE,VX,ZX198808-199005

main41221-32040iSV21..4FC..GT;CV20,SV22..4FC198808-199002

main41221-32070iSV25..4FC198808-199007

main41221-32080iCV20,SV22..5F;SV21..LUM,VE,VX,ZX199002-199007

main41221-32090iSV21..4FC..GT;CV20,SV22..4FC199002-199007

main41221-32100iVZV20..4FC199002-199007

41222BBOLT (FOR FRONT DIFFERENTIAL RING GEAR SET)

main90101-11003iVZV20..4FC;CV20,SV21,22198808-199007

main90105-12150iSV25..5F198808-199007

main90105-12154iVZV20..5F198808-199007

41222FPLATE, FORNT DIFFERENTIAL RING GEAR SET BOLT LOCK

main41222-32010iVZV20..4FC;CV20,SV21,22198808-199007

41311CASE, FRONT DIFFERENTIAL

main41301-32010iCV20,SV21,22..5F198808-199004

sub41301-32060

sub33481-32060

sub33481-32070

main41301-32021iCV20,SV21,22,VZV20..4FC198808-198811

sub41301-32022

main41301-32022iCV20,SV21,22,VZV20..4FC198811-198907

sub41301-32023

main41301-32023iCV20,SV21,22,VZV20..4FC198907-199007

sub41301-32071

main41301-32060iCV20,SV21,22..5F199004-199007

sub41301-32061

main41302-32030iSV25..4FC198808-199007

41311CSHIM (FOR FRONT DIFFERENTIAL CASE REAR)

main90564-45001iCV20,SV21,22..5F198808-199007

main90564-45002iCV20,SV21,22..5F198808-199007

main90564-45003iCV20,SV21,22..5F198808-199007

main90564-45004iCV20,SV21,22..5F198808-199007

main90564-45005iCV20,SV21,22..5F198808-199007

main90564-45006iCV20,SV21,22..5F198808-199007

main90564-45007iCV20,SV21,22..5F198808-199007

main90564-45008iCV20,SV21,22..5F198808-199007

main90564-45009iCV20,SV21,22..5F198808-199007

main90564-45010iCV20,SV21,22..5F198808-199007

main90564-45011iSV21..5F;CV20,SV22198808-199007

main90564-45012iCV20,SV21,22..5F198808-199007

main90564-45013iCV20,SV21,22..5F198808-199007

main90564-45014iCV20,SV21,22..5F198808-199007

main90564-45015iCV20,SV21,22..5F198808-199007

main90564-45016iCV20,SV21,22..5F198808-199007

main90564-45017iCV20,SV21,22..5F198808-199007

main90564-45018iCV20,SV21,22..5F198808-199007

main90564-45019iCV20,SV21,22..5F198808-199007

main90564-76001iSV25;VZV20..5F198808-199007

main90564-76002iSV25;VZV20..5F198808-199007

main90564-76003iSV25;VZV20..5F198808-199007

main90564-76004iSV25;VZV20..5F198808-199007

main90564-76005iSV25;VZV20..5F198808-199007

main90564-76006iSV25;VZV20..5F198808-199007

main90564-76007iSV25;VZV20..5F198808-199007

main90564-76008iSV25;VZV20..5F198808-199007

main90564-76009iSV25;VZV20..5F198808-199007

main90564-76010iSV25;VZV20..5F198808-199007

main90564-76011iSV25;VZV20..5F198808-199007

main90564-76012iSV25;VZV20..5F198808-199007

main90564-76013iSV25;VZV20..5F198808-199007

main90564-76014iSV25;VZV20..5F198808-199007

main90564-76015iSV25;VZV20..5F198808-199007

main90564-76016iSV25;VZV20..5F198808-199007

main90564-76017iSV25;VZV20..5F198808-199007

main90564-76018iSV25;VZV20..5F198808-199007

41311DSHIM (FOR FRONT DIFFERENTIAL CASE FRONT)

main90564-45011iSV21;VZV20..4FC;CV20,SV22..5F198808-199007

main90564-49001iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49002iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49003iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49004iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49005iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49006iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49007iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49008iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49009iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49010iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49011iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49012iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49013iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49014iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49015iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49016iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49017iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49018iCV20,SV21,22,VZV20..4FC198808-199007

main90564-49019iCV20,SV21,22,VZV20..4FC198808-199007

41311EBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE FRONT)

main90366-40016iVZV20..4FC;CV20,SV21,22198808-199007

main90366-57001iSV25,VZV20..5F198808-199007

main90366-67004iSV25..4FC198808-199007

41311FBEARING, TAPERED ROLLER (FOR FRONT DIFFERENTIAL CASE REAR)

main90366-40023iCV20,SV21,22..5F198808-199007

sub90366-40064

main90366-44001iCV20,SV21,22,VZV20..4FC198808-199007

main90366-50014iSV25,VZV20..5F198808-199007

main90366-55034iSV25..4FC198808-199007

41331FGEAR, FRONT DIFFERENTIAL SIDE

main41331-12030iSV25198808-199007

main41331-17010iVZV20..5F198808-199007

main41331-20020iSV25..5F198808-199007

main41331-32010iVZV20..4FC;CV20,SV21,22198808-199007

41341FPINION, FRONT DIFFERENTIAL

main41341-20011iSV25198808-199007

main41341-20020iVZV20..5F198808-199007

main41341-20030iSV25..5F198808-199007

main41341-30011iVZV20..4FC;CV20,SV21,22198808-199007

41342APIN, STRAIGHT (FOR FRONT DIFFERENTIAL PINION SHAFT)

main90250-05028iSV25..5F198808-199007

main90250-06058iVZV20..4FC;CV20,SV21,22198808-199007

41342FSHAFT, FRONT DIFFERENTIAL PINION, NO.1

main41342-12040iSV25..5F198808-199007

main41342-20040iSV25..5F198808-199007

main41342-20050iVZV20..4FC;CV20,SV21,22198811-199007

sub41342-32020

main41342-32010iVZV20..4FC;CV20,SV21,22198808-198811

sub41342-20050

41351FWASHER, FRONT DIFFERENTIAL PINION THRUST

main41351-12010iSV25..5F198808-199007

main41351-20010iVZV20..5F198808-199007

main41351-20020iSV25..5F198808-199007

main41351-32010iVZV20..4FC;CV20,SV21,22198808-199007

main41351-32030iSV25..4FC198808-199007

41361FWASHER, FRONT DIFFERENTIAL SIDE GEAR THRUST, NO.1

main41361-12330iSV25..5F198808-199007

main41361-12340iSV25..5F198808-199007

main41361-12350iSV25..5F198808-199007

main41361-12360iSV25..5F198808-199007

main41361-12370iSV25..5F198808-199007

main41361-12380iSV25..4FC198808-199007

main41361-12390iSV25..5F198808-199007

main41361-12400iSV25..5F198808-199007

main41361-12410iSV25..5F198808-199007

main41361-12420iSV25..5F198808-199007

main41361-22020iVZV20..4FC;CV20,SV21,22198808-199007

main41361-22030iVZV20..4FC;CV20,SV21,22198808-199007

main41361-22040iVZV20..4FC;CV20,SV21,22198808-199007

main41361-22140iVZV20..4FC;CV20,SV21,22198808-199007

main41361-22150iVZV20..4FC;CV20,SV21,22198808-199007

main41361-22160iVZV20..4FC;CV20,SV21,22198808-199007

main41362-17010iVZV20..5F198808-199007

main41362-17020iVZV20..5F198808-199007

main41362-17030iVZV20..5F198808-199007

main41362-17040iVZV20..5F198808-199007

main41362-17050iVZV20..5F198808-199007

main41362-17060iVZV20..5F198808-199007

main41362-17070iVZV20..5F198808-199007

24 parts on this diagram · 6 diagrams in section
