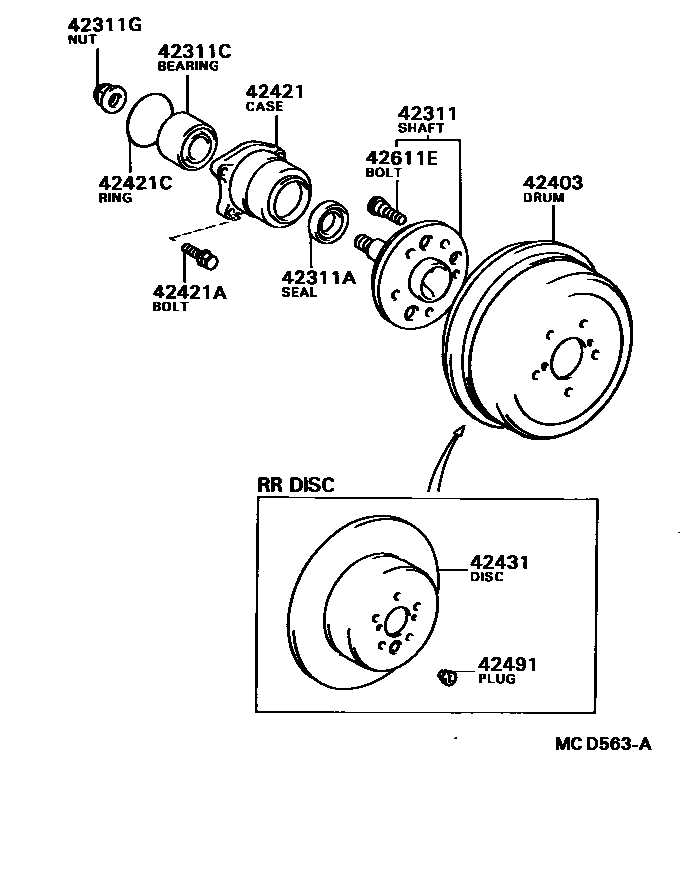

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311SHAFT, REAR AXLE

main42301-20070iSV25198808-199007

main42301-32020iSV21,VZV20..GT,PRO,VX,ZX198808-199007

sub42410-32050

main42301-32031iCV20,SV21,22,VZV20198808-199007

sub42410-20140

42311ASEAL, OIL(FOR REAR AXLE SHAFT)

main90311-42018iCV20,SV21,22,VZV20198808-199007

main90311-52005iSV25198808-199007

OUTER

main90311-56007iSV25198808-199007

INNER

42311CBEARING(FOR REAR AXLE SHAFT)

main90369-30044iCV20,SV21,22,VZV20198808-199007

main90369-38003iSV25198808-199007

42311GNUT(FOR REAR AXLE SHAFT)

main90170-19001iSV25198808-199007

main90179-20003iCV20,SV21,22,VZV20198808-198903

main90179-20017iCV20,SV21,22,VZV20198903-199007

42403DRUM SUB-ASSY, REAR BRAKE

main42431-32020iCV20,SV22198808-199007

42421CASE, REAR AXLE BEARING

main42421-20020iCV20,SV21,22,VZV20198808-199007

sub42409-20010

42421ABOLT (FOR REAR AXLE BEARING CASE)

main90105-10124iCV20,SV21,22,VZV20198808-199006

main90105-10309iCV20,SV21,22,VZV20199006-199007

42421CRING, O (FOR REAR AXLE BEARING CASE)

main90301-63003iCV20,SV21,22,VZV20198808-199007

sub90301-63006

42431DISC, REAR

main42431-20090iSV21,VZV20198808-199007

sub42431-20160

main42431-20100iSV25198808-199007

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-22020iSV21,25,VZV20198808-199007

42611EBOLT, HUB (FOR REAR AXLE)

main90942-02047iCV20,SV2#,VZV20198808-199007

11 parts on this diagram · 3 diagrams in section
