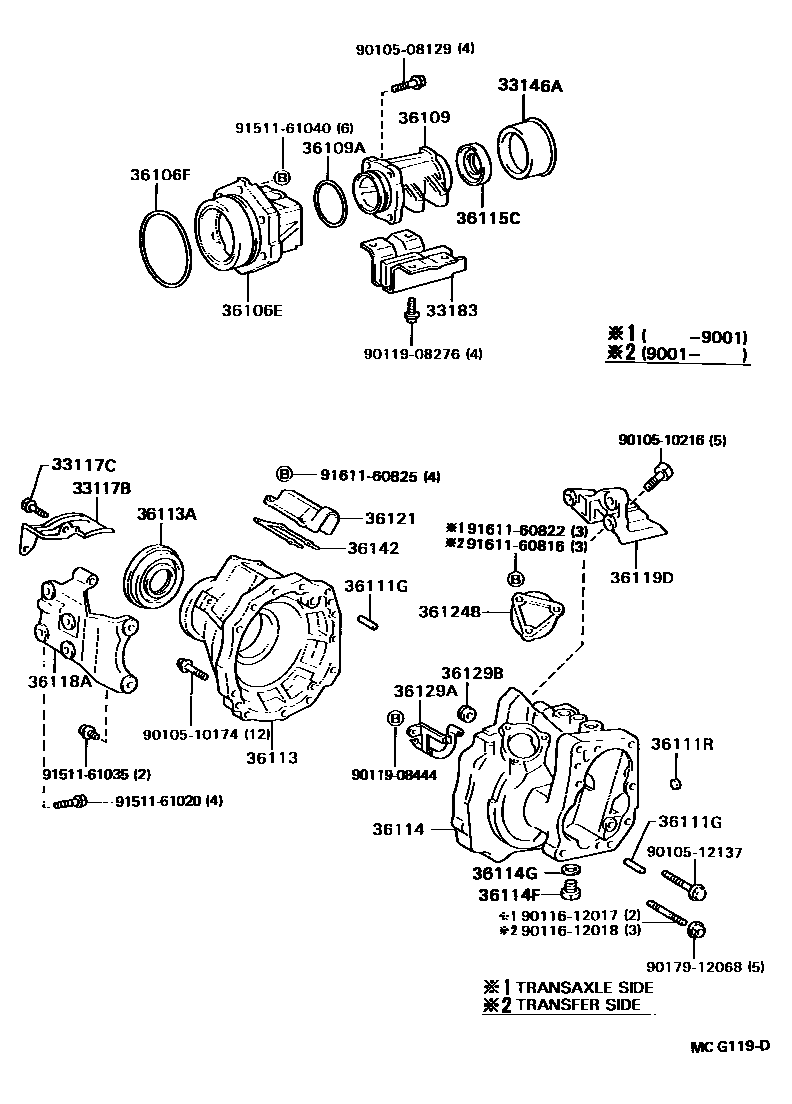

TRANSFER CASE & EXTENSION HOUSING
33117BPROTECTOR, TRANSFER CASE
33117CBOLT(FOR TRANSFER CASE PROTECTOR)
sub91641-H0820
33146ADEFLECTOR, TRANSFER EXTENSION HOUSING DUST
sub33146-30020
33183DAMPER, TRANSFER DYNAMIC
36106ECAGE SUB-ASSY, TRANSFER PINION BEARING
36106FRING, O (FOR TRANSFER PINION BEARING CAGE)
36109HOUSING SUB-ASSY, TRANSFER EXTENSION
36109ARING, O (FOR TRANSFER EXTENSION HOUSING)
36111GPIN, STRAIGHT (FOR TRANSFER CASE)
36111RPLUG, TIGHT (FOR TRANSFER CASE)
36113ASEAL, OIL (FOR TRANSFER CASE RH)
36114FPLUG (FOR TRANSFER DRAIN)
36114GGASKET (FOR TRANSFER DRAIN PLUG)
36115CSEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING)
36118APLATE, TRANSFER STIFFENER, RH
36121COVER, TRANSFER CASE, NO.1
36124BCOVER, TRANSFER INSPECTION HOLE
36129ATUBE, TRANSFER OIL
36129BCUSHION (FOR TRANSFER OIL TUBE)
36142GASKET, TRANSFER COVER
9010508129
main90105-08129
9010510174
main90105-10174
9010510216
main90105-10216
9010512137
main90105-12137
9011612017
main90116-12017
9011612018
main90116-12018
9011908276
main90119-08276
9011908444
main90119-08444
9017912068
main90179-12068
9151161020
main91511-61020
9151161035
main91511-61035
9151161040
main91511-61040
9161160816
main91611-60816
9161160822
main91611-60822
9161160825
main91611-60825
38 parts on this diagram · 3 diagrams in section
