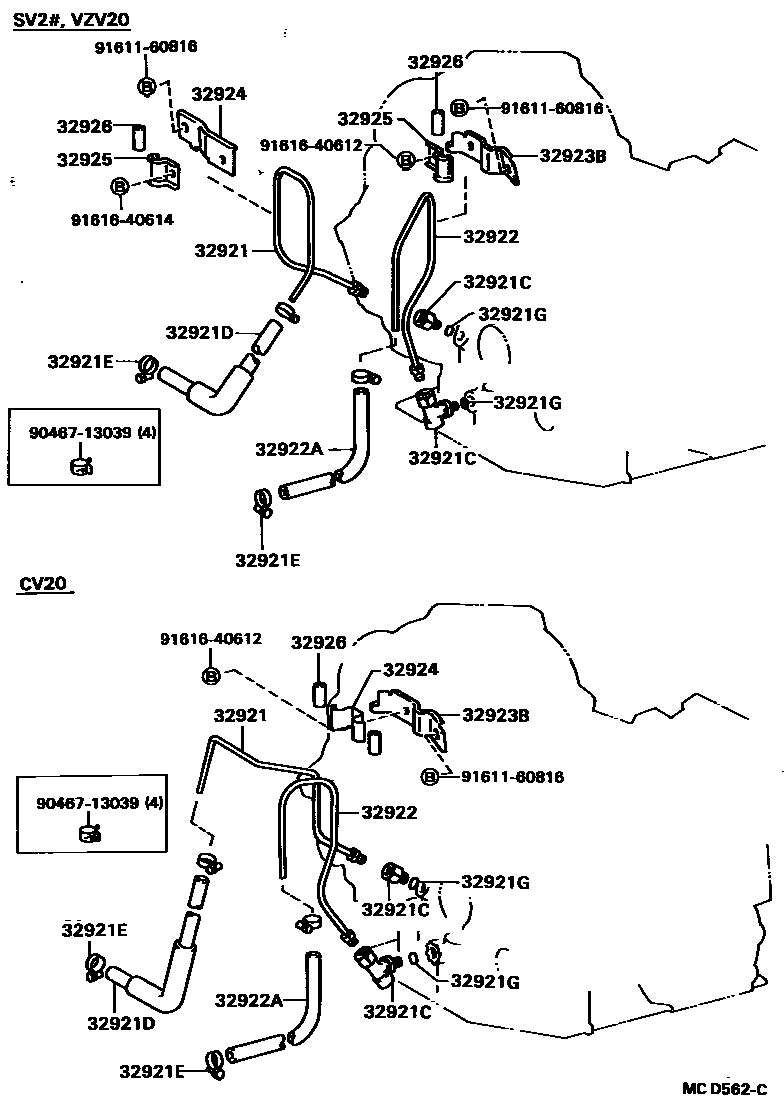

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-32030iVZV20..4FC198808-199003

main32921-32031iVZV20..4FC199003-199007

main32921-32040iCV20..4FC198808-199003

sub32921-32041

main32921-32041iCV20..4FC199003-199007

main32921-32050iSV21,22..4FC198808-199003

main32921-32051iSV21,22..4FC198808-199003

main32921-32052iSV21,22..4FC199003-199007

sub32921-32051

main32921-32100iSV25..4FC198808-199007

sub32921-32120

32921CUNION(FOR OIL COOLER TUBE)

main32901-32010iCV20,SV21,22,VZV20..4FC198808-199007

OUTLET

main32901-32020iSV25..4FC198808-199004

OUTLET

main32901-32050iSV25..4FC199004-199007

OUTLET

main32918-32010iSV25..4FC198808-199007

INLET

main90404-14007iCV20,SV21,22,VZV20..4FC198808-199007

INLET

32921DHOSE(FOR OIL COOLER INLET)

main32941-32030iSV21,22..4FC198808-199003

main32941-32051iSV21,22..4FC198808-199003

sub32941-32140

main32941-32080iSV25..4FC198808-198809

sub32941-32081

main32941-32081iSV25..4FC198809-199007

sub32941-32082

main32941-32140iSV21,22..4FC199003-199007

main90445-15024iCV20..4FC198808-199003

sub90445-15048

main90445-15032iVZV20..4FC198808-199003

sub90445-15047

main90445-15047iVZV20..4FC199003-199007

main90445-15048iCV20..4FC199003-199007

32921ECLAMP, HOSE(FOR OIL COOLER)

main90460-18002iSV21,22..4FC198808-199003

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iSV25..4FC198808-199007

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-32020iSV25..4FC198808-199007

sub32922-32021

main32922-32030iCV20..4FC198808-199003

main32922-32031iCV20..4FC199003-199007

main32922-32040iSV21,22,VZV20..4FC198808-198902

sub32922-32041

main32922-32041iSV21,22,VZV20..4FC198902-199003

main32922-32042iSV21,22,VZV20..4FC199003-199007

32922AHOSE(FOR OIL COOLER OUTLET)

main90445-15032iCV20..4FC198808-199005

sub90445-15047

main90445-15042iSV21,22,VZV20..4FC199003-199007

main90445-15047iCV20..4FC199005-199007

main90445-16026iSV21,22,VZV20..4FC198808-199003

main90445-17076iSV25..4FC198808-199007

sub90445-17105

32923BCLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE, NO.1

main32923-20090iCV20,SV21,22,VZV20..4FC198808-199007

main32923-32030iSV25..4FC198808-199007

32924CLAMP, OIL COOLER TUBE, NO.2

main32923-20110iSV21,22,VZV20..4FC198909-198910

sub32923-20111

main32923-20111iSV21,22,VZV20..4FC198910-199007

main32923-32021iSV21,22,VZV20..4FC198808-198909

main90462-12071iSV25..4FC198808-199007

main90462-12085iCV20..4FC198808-199007

32925CLAMP, OIL COOLER TUBE, NO.3

main32923-32060iSV25..4FC198808-199007

main90462-10082iSV21,22,VZV20..4FC198808-199007

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-30011iCV20..4FC198808-199007

main32926-32010iSV25..4FC198808-199007

9046713039

main90467-13039

9161160816

main91611-60816

9161640612

main91616-40612

9161640614

main91616-40614

15 parts on this diagram · 2 diagrams in section
