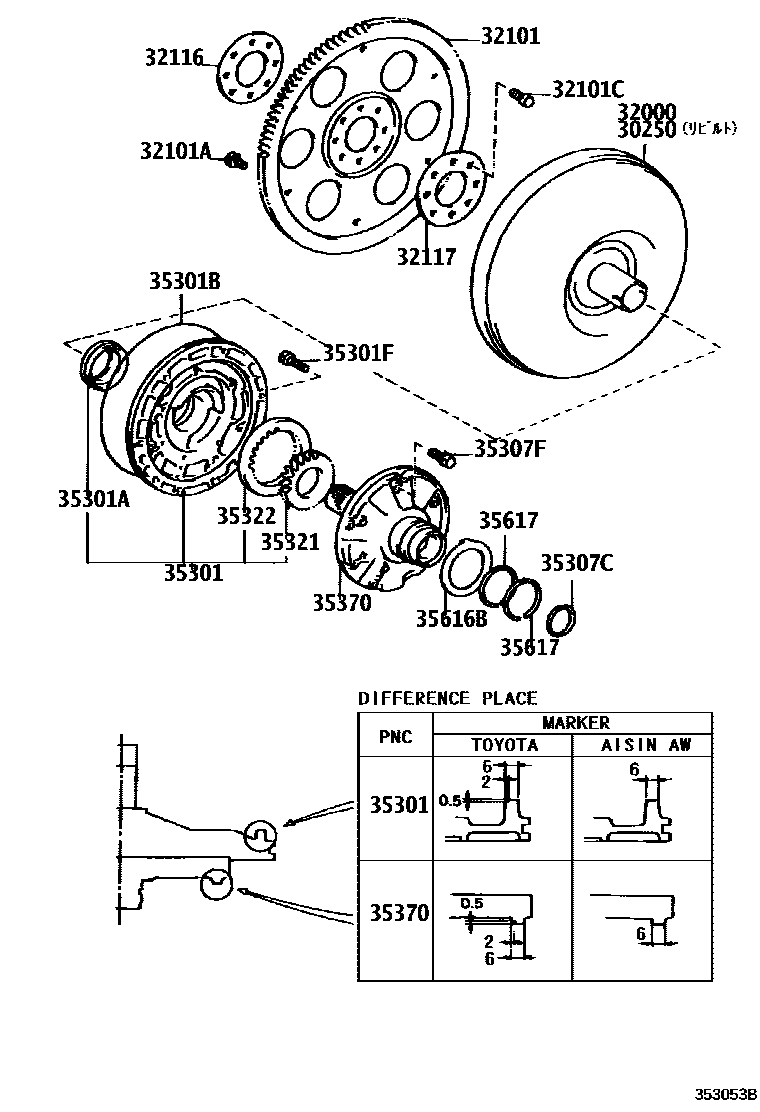

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

30250CONVERTER ASSY, TORQUE, REBUILT

main30250-20190iVZV20..4FC198910-199007

main30250-32051iVZV20..4FC198909-198910

32000CONVERTER ASSY, TORQUE

main32000-20190iVZV20..4FC198910-199007

main32000-32050iVZV20..4FC198808-198909

sub32000-32051

main32000-32051iVZV20..4FC198909-198910

main32000-32070iSV25..4FC198808-198909

sub32000-32071

main32000-32071iSV25..4FC198909-199007

sub32000-32120

main32000-32080iCV20,SV21,22..4FC198808-199007

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-20100iSV21..4FC..GT198907-199007

main32101-32021iSV21..4FC..GT198808-198907

main32101-32040iSV2#..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-198905

sub32101-32041

main32101-32050iSV2#..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198905-199007

sub32101-32051

main32101-32060iVZV20..4FC198808-199007

main32101-32100iCV20..4FC198808-199007

main32101-32110iSV25..4FC199004-199007

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iCV20,SV2#,VZV20..4FC198808-199007

main90119-08498iCV20,SV2#,VZV20..4FC198808-199007

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048iVZV20..4FC198808-199007

main90105-12184iSV21..4FC..GT198907-199007

sub90105-12384

main90109-10037iCV20..4FC198808-199007

main90109-10054iSV21..4FC..GT198808-199007

32116SPACER, DRIVE PLATE, FRONT

main32116-14020iSV2#..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-198905

main32116-20030iCV20..4FC198808-199007

main32116-20040iSV21..4FC..GT198907-199007

main32116-32011iSV2#..4FC198808-199007

main32116-32020iVZV20..4FC198808-199007

32117SPACER, DRIVE PLATE, REAR

main32117-14030iSV2#..4FC..(LUM,VE,VL,VR,VX,XT,ZE,ZX)198808-198905

main32117-20040iCV20..4FC198808-199007

main32117-20050iSV21..4FC..GT198907-199007

main32117-32010iSV21..4FC..GT198808-199007

main32117-32020iVZV20..4FC198808-199007

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iCV20,SV21,22,VZV20..4FC198808-199007

main35035-32020iCV20,SV21,22,VZV20..4FC198808-199007

sub35035-32H00

main35035-32030iSV25..4FC198808-199007

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iSV25..4FC198808-199007

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iCV20,SV2#,VZV20..4FC198808-199007

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iCV20,SV2#,VZV20..4FC198808-199007

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iCV20,SV2#,VZV20..4FC198808-199007

main35789-32030iCV20,SV2#,VZV20..4FC198808-199007

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iSV25..4FC198808-199007

35321GEAR, FRONT OIL PUMP DRIVE

main35321-12020iSV25..4FC198808-199007

main35321-12030iSV25..4FC198808-199007

main35321-12040iSV25..4FC198808-199007

main35321-12050iSV25..4FC198808-199007

main35321-12060iSV25..4FC198808-199007

main35321-32040iCV20,SV21,22,VZV20..4FC198808-199007

sub35321-12070

main35321-32050iCV20,SV21,22,VZV20..4FC198808-199007

sub35321-12090

main35321-32060iCV20,SV21,22,VZV20..4FC198808-199007

sub35321-12110

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-12010iSV25..4FC198808-199007

main35322-12020iSV25..4FC198808-199007

main35322-12030iSV25..4FC198808-199007

main35322-12040iSV25..4FC198808-199007

main35322-12050iSV25..4FC198808-199007

main35322-32040iCV20,SV21,22,VZV20..4FC198808-199007

sub35322-12060

main35322-32050iCV20,SV21,22,VZV20..4FC198808-199007

sub35322-12080

main35322-32060iCV20,SV21,22,VZV20..4FC198808-199007

sub35322-12100

35370SHAFT ASSY, STATOR

main35370-12040iCV20,SV21,22,VZV20..4FC199005-199007

main35370-12040iSV25..4FC199001-199007

main35370-32022iSV25..4FC198808-199001

sub35370-20H00

sub35370-32H01

main35370-32022iCV20,SV21,22,VZV20..4FC198808-199005

sub35370-20H00

sub35370-32H01

main35370-32031iCV20,SV21,22,VZV20..4FC198808-199005

sub35370-32H00

main35370-32050iCV20,SV21,22,VZV20..4FC199005-199007

sub35035-32H00

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iCV20,SV2#,VZV20..4FC198808-199007

35617RING, CLUTCH DRUM OIL SEAL

main35617-32011iCV20,SV2#,VZV20..4FC198808-199007

18 parts on this diagram · 1 diagram in section
