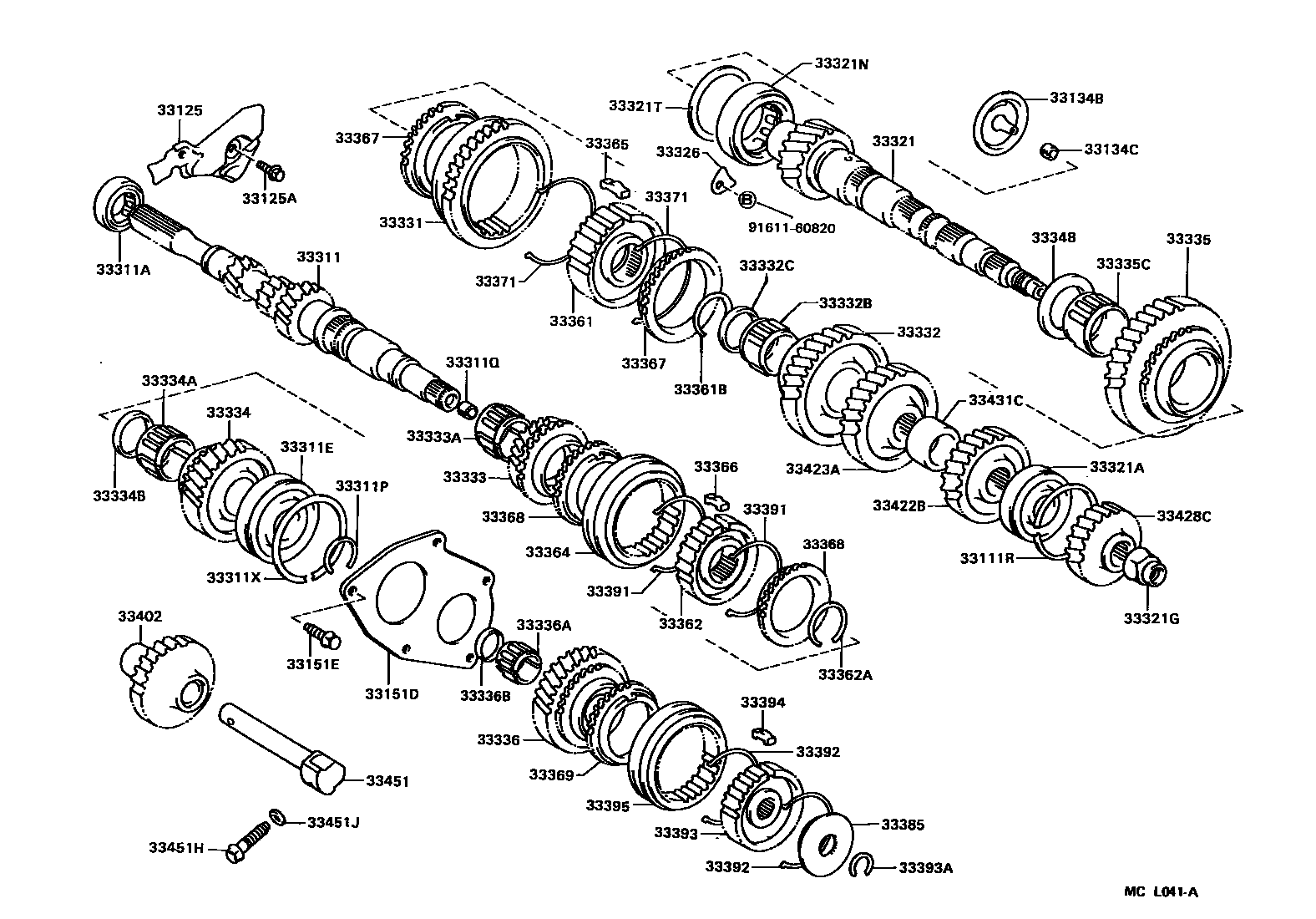

33111RRING, HOLE SNAP(FOR OUTPUT SHAFT REAR BEARING)
33125RECEIVER, MANUAL TRANSAXLE CASE
33125ABOLT(FOR TRANSAXLE CASE RECEIVER)
33134BCOVER, OUTPUT SHAFT(MTM)
33134CPIN, SLOTTED SPRING(FOR OUTPUT SHAFT)
33151DRETAINER, BEARING, REAR(MTM)
33151EBOLT(FOR REAR BEARING RETAINER)
33311SHAFT, INPUT
main33311-32021iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199004 main33311-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199004-199007 33311ABEARING (FOR INPUT SHAFT FRONT)
33311EBEARING, RADIAL BALL (FOR INPUT SHAFT REAR)
33311PRING, SHAFT SNAP (FOR INPUT SHAFT REAR BEARING)
33311QPIN, SLOTTED SPRING (FOR INPUT SHAFT)
33311XRING, HOLE SNAP (FOR INPUT SHAFT REAR BEARING)
33321SHAFT, OUTPUT
main33321-20090iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199005 main33321-32050iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199005-199007 33321ABEARING (FOR OUTPUT SHAFT REAR)
33321GNUT (FOR MANUAL TRANSMISSION OUTPUT SHAFT REAR SET)
33321NBEARING (FOR OUTPUT SHAFT FRONT)
33321TSPACER (FOR OUTPUT SHAFT)
33332GEAR, 2ND
main33033-32020iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199005 main33033-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199005-199007 33332BBEARING, NEEDLE ROLLER (FOR 2ND GEAR)
33332CSPACER (FOR 2ND GEAR BEARING)
33333GEAR, 3RD
main33034-32020iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199004 main33034-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199004-199007 33333ABEARING, NEEDLE ROLLER (FOR 3RD GEAR)
33334GEAR, 4TH
main33035-32010iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199004 main33035-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199004-199007 33334ABEARING, NEEDLE ROLLER (FOR 4TH GEAR)
33334BSPACER (FOR 4TH GEAR BEARING)
33335GEAR, 1ST
main33032-32010iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199005 main33032-32020iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199005-199007 33335CBEARING, NEEDLE ROLLER(FOR 1ST GEAR)
33336GEAR, 5TH
main33036-32010iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199004 main33036-32030iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199004-199007 33336ABEARING, NEEDLE ROLLER (FOR 5TH GEAR)
33336BSPACER (FOR 5TH GEAR BEARING)
33348WASHER, 1ST GEAR THRUST
33361HUB, TRANSMISSION CLUTCH, NO.1
33361BRING, SHAFT SNAP (FOR CLUTCH HUB NO.1)
33362HUB, TRANSMISSION CLUTCH, NO.2
33362ARING, SHAFT SNAP (FOR CLUTCH HUB NO.2 SETTING)
33364SLEEVE, TRANSMISSION HUB, NO.2
33365KEY, SYNCHROMESH SHIFTING, NO.1
33366KEY, SYNCHROMESH SHIFTING, NO.2
33367RING, SYNCHRONIZER, NO.1
33368RING, SYNCHRONIZER, NO.2
33369RING, SYNCHRONIZER, NO.3
33371SPRING, SYNCHROMESH SHIFTING KEY, NO.1
33385RETAINER, SHIFTING KEY
33391SPRING, SYNCHROMESH SHIFTING KEY, NO.2
33392SPRING, SYNCHROMESH SHIFTING KEY, NO.3
33393HUB, TRANSMISSION CLUTCH, NO.3
33393ARING, SHAFT SNAP (FOR TRANSMISSION CLUTCH HUB NO.3)
33394KEY, SYNCHROMESH SHIFTING, NO.3
33395SLEEVE, TRANSMISSION HUB, NO.3
33402GEAR SUB-ASSY, REVERSE IDLER
33422BGEAR, 4TH DRIVEN
main33422-32011iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199005 main33422-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199005-199007 33423AGEAR, 3RD DRIVEN
main33423-32020iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199005 main33423-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199005-199007 33428CGEAR, 5TH DRIVEN
main33428-32010iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)198808-199005 main33428-32040iCV20,SV21,22..5F..(LT,LUM,VC,VE,VL,VR,VX,XT,ZE,ZX)199005-199007 33431CSPACER, OUTPUT GEAR
33451SHAFT, REVERSE IDLER GEAR
33451HBOLT (FOR REVERSE IDLER GEAR SHAFT)
33451JGASKET (FOR REVERSE IDLER GEAR SHAFT)
