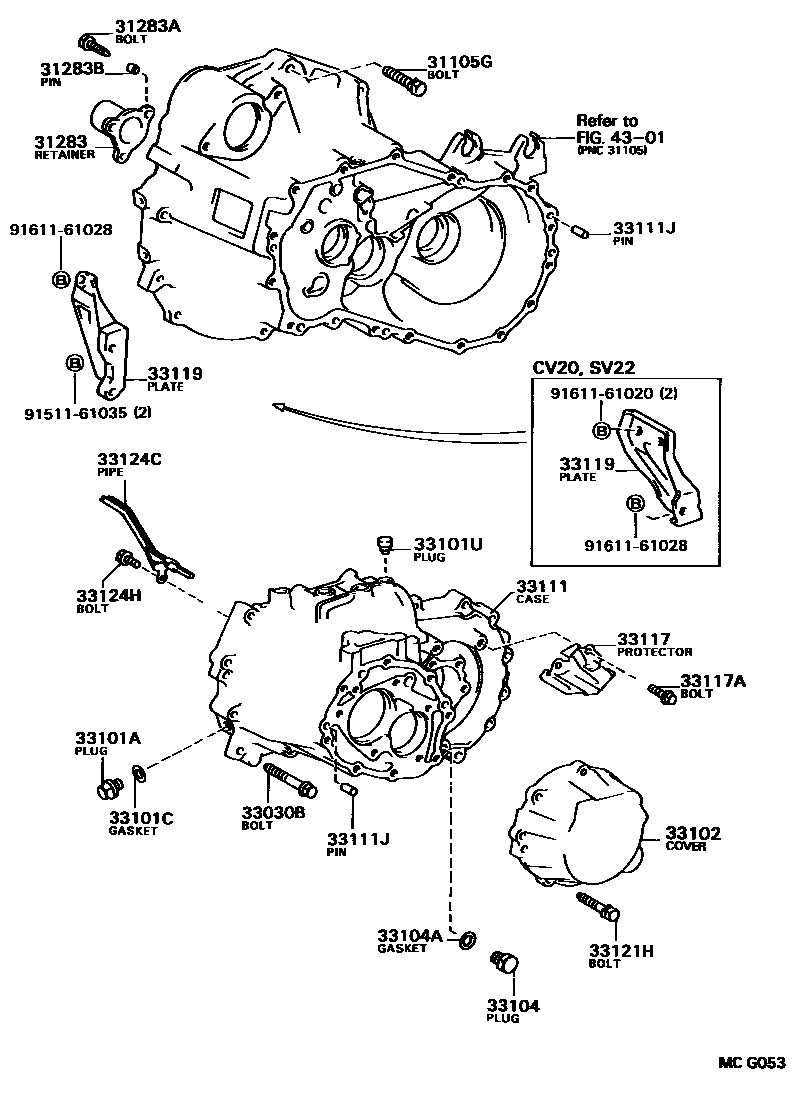

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

0001 1 0002 1E53 0003 1E56F2,E56F5

31105GBOLT(FOR TRANSAXLE CASE & ENGINE SETTING)

main90105-08040iCV20,SV2#,VZV20..5F198808-199007

sub91641-H0820

main90105-10077iCV20,SV2#..5F198808-199007

main90105-12038iVZV20..5F198808-199007

main90119-12168iVZV20..5F198808-199007

main91611-61045iVZV20..5F198808-199007

sub91612-61045

main91619-61260iVZV20..5F198808-199007

main91651-41022iSV21..5F198808-199007

31283RETAINER, CLUTCH RELEASE BEARING HUB

main31283-32010iCV20,SV21,22..5F198808-199007

31283ABOLT(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90105-06023iCV20,SV21,22..5F198808-199007

sub91511-B0620

31283BPIN, RING(FOR CLUTCH RELEASE BEARING HUB RETAINER)

main90253-08002iCV20,SV21,22..5F198808-199007

33030BBOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)

main90105-08042iCV20,SV21,22..5F198808-199007

sub90105-08430

main90105-08126iSV25,VZV20..5F198808-199007

33101APLUG(FOR MANUAL TRANSMISSION FILLER)

main90341-18002iCV20,SV21,22..5F198808-199003

main90341-18033iSV25,VZV20..5F198808-199007

33101CGASKET(FOR MANUAL TRANSMISSION FILLER PLUG)

main90430-18008iCV20,SV2#,VZV20..5F198808-199007

33101UPLUG, BREATHER(FOR MANUAL TRANSMISSION)

main90930-03080iCV20,SV21,22..5F198808-199007

main90930-03111iSV25,VZV20..5F198808-199007

sub90930-03148

33102COVER SUB-ASSY, MANUAL TRANSMISSION CASE

main33102-12030iSV25..5F198808-199007

sub33102-12040

main33102-32011iCV20,SV21,22..5F198808-199004

sub33102-32012

main33102-32012iCV20,SV21,22..5F199004-199007

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iCV20,SV2#,VZV20..5F198808-199007

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iCV20,SV2#,VZV20..5F198808-199007

33111CASE, MANUAL TRANSMISSION

main33101-20030iVZV20..5F198808-198907

sub33101-20040

sub90560-10019

sub91511-61016

main33101-20040iVZV20..5F198907-199007

sub33101-33010

main33101-32010iSV25..5F198808-198907

sub33101-32011

sub90560-10019

sub91511-61016

main33101-32011iSV25..5F198907-199007

sub33101-12170

sub33261-12070

sub90364-15003

main33111-20140iCV20,SV21,22..5F198906-198910

sub33111-20141

main33111-20141iCV20,SV21,22..5F198910-199007

sub33111-33020

main33111-32014iCV20,SV21,22..5F198808-198906

sub33111-20140

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-08054iSV25..5F198808-199007

main90250-12005iVZV20..5F198808-199007

33117PROTECTOR, MANUAL TRANSMISSION CASE

main33117-20020iSV25,VZV20..5F198808-199007

main33117-32011iCV20,SV21,22..5F198808-199007

33117ABOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)

main90105-08040iCV20,SV2#,VZV20..5F198808-199007

sub91641-H0820

33119PLATE, STIFFENER, LH(MTM)

main33119-20080iSV25..5F198808-198905

main33119-20090iSV25..5F198905-199007

main33119-32010iCV20,SV22..5F198808-199007

main33119-32020iSV21..5F198808-199007

main33119-32040iVZV20..5F198808-199007

33121HBOLT, W/WASHER(FOR TRANSMISSION CASE COVER)

main90105-08089iVZV20..5F198808-199007

sub90105-08273

main90119-08630iSV25..5F198808-199007

33124CPIPE, OIL RECEIVER, NO.1(MTM)

main33124-12030iSV25..5F198808-199007

main33124-20020iVZV20..5F198808-199007

main33124-32011iCV20,SV21,22..5F198808-199004

main33124-32012iCV20,SV21,22..5F199004-199007

33124HBOLT(FOR OIL RECEIVER PIPE)

main90119-08648iSV25,VZV20..5F198808-199007

sub90119-08830

main91651-60618iCV20,SV21,22..5F198808-199007

4301

9151161035

main91511-61035

9161161020

main91611-61020

9161161028

main91611-61028

23 parts on this diagram · 3 diagrams in section
