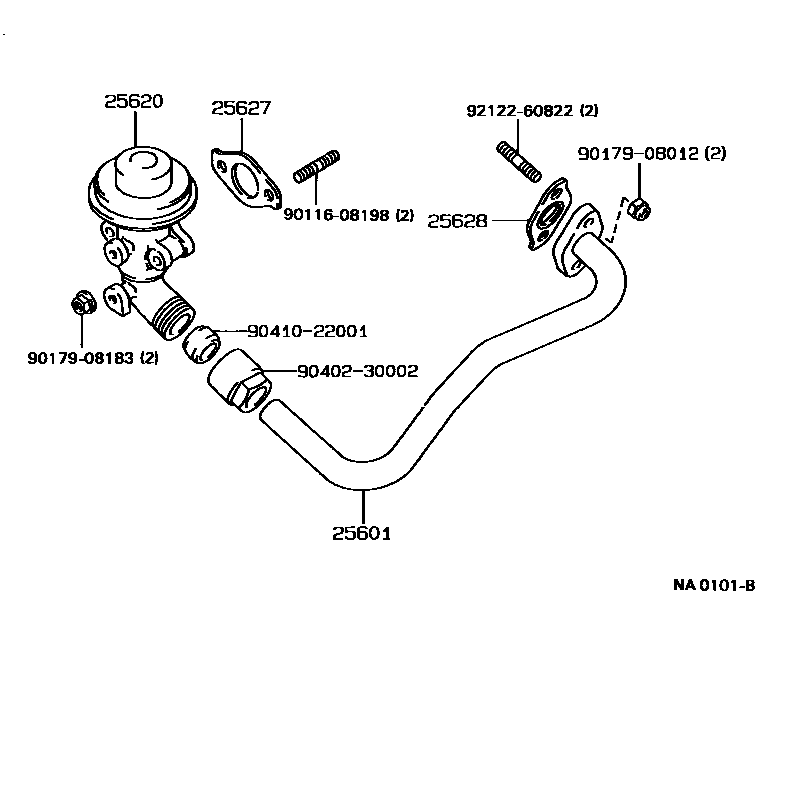

EXHAUST GAS RECIRCULATION SYSTEM

25601PIPE SUB-ASSY, EGR, NO.1

main25601-64030i2CT..CV20..4FC198808-199007

sub25601-64031

25620VALVE ASSY, EGR

main25620-64060i2CT..CV20..4FC198808-199007

25627GASKET, EGR VALVE

main25627-64010i2CT..CV20..4FC198808-199007

sub25627-64030

25628GASKET, EGR INLET

main25628-64020i2CT..CV20..4FC198808-199007

sub25628-64030

9011608198

main90116-08198

9017908012

main90179-08012

9017908183

main90179-08183

9040230002

main90402-30002

9041022001

main90410-22001

9212260822

main92122-60822

10 parts on this diagram · 1 diagram in section
