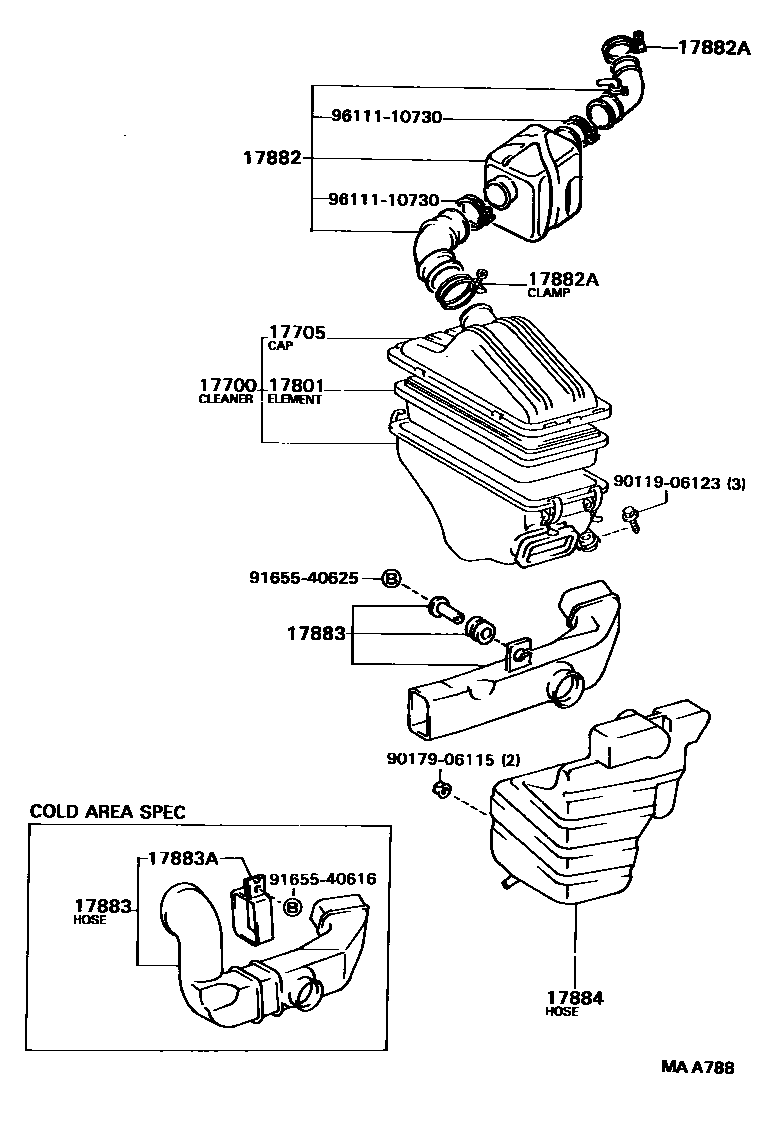

AIR CLEANER

0001 1 0002 1 0003 1 0004 1 0005 1

17700CLEANER ASSY, AIR

main17700-62020i1VZFE..VZV20198808-199007

main17700-63130i4SFI..SV22198808-199007

sub17700-74090

main17700-64200i2CT..CV20198808-199007

main17700-74031i3SGE..SV21198808-199007

main17700-74090i3SFE..SV21,25198808-199007

17705CAP SUB-ASSY, AIR CLEANER

main17705-62020i1VZFE..VZV20198808-199007

main17705-63060i4SFI..SV22198808-199007

main17705-64030i2CT..CV20198808-199007

main17705-74031i3SGE..SV21198808-199007

main17705-74090i3SFE..SV21,25198808-199007

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-64040i2CT..CV20198808-199007

main17801-74010i3S#,4SFI..SV2#198808-199007

sub17801-55010

main17801-74020i1VZFE..VZV20198808-199007

17882HOSE, AIR CLEANER, NO.2

main17880-64140i2CT..CV20198808-199007

main17882-74031i3SGE..SV21198808-199007

main17882-74150i4SFI..SV22198808-199007

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-57002i2CT..CV20198808-199007

TURBO SIDE

main96111-10670i2CT..CV20198808-199007

AIR CLEANER SIDE

main96111-10780i3SGE..SV21198808-199007

PIPE SIDE

main96111-10800i3SFE..SV21,25198808-199007

main96111-10900i3SGE..SV21198808-199007

AIR FLOW SIDE

17883HOSE, AIR CLEANER, NO.3

main17882-63110i2CT..CV20198808-199007

main17882-64040i2CT..CV20198808-199007

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main90460-01046i2CT..CV20198808-199007

17884HOSE, AIR CLEANER, NO.4

main17883-62010i1VZFE..VZV20198808-198908

sub17883-62011

main17883-62011i1VZFE..VZV20198908-199007

main17883-63030i3S#,4SFI..SV2#198808-199007

9011906123

main90119-06123

9017906115

main90179-06115

9165540616

main91655-40616

9165540625

main91655-40625

9611110730

main96111-10730

13 parts on this diagram · 5 diagrams in section
