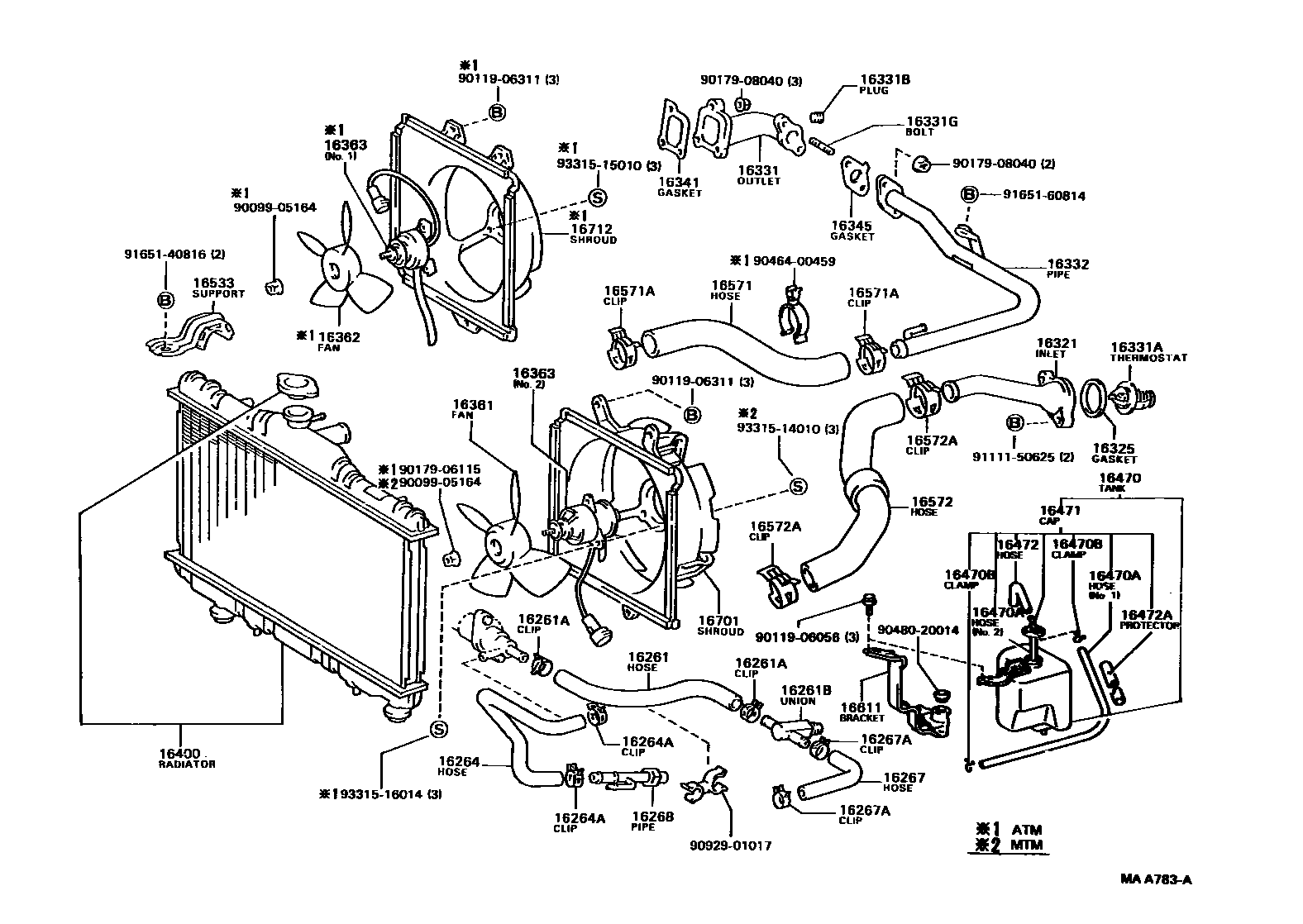

RADIATOR & WATER OUTLET

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1

16261HOSE, WATER BY-PASS

main16261-62010i1VZFE..VZV20198808-199007

main16261-64060i2CT..CV20198808-199007

main16261-74010i3SFE..SV21,25198808-199007

main16261-74040i4SFI..SV22198808-199007

main16261-88360i3SGE..SV21198808-199007

*53

main16261-88360i3SGE..SV21198808-198908

*54

main16261-88361i3SGE..SV21198908-199007

*54

16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)

main90467-13001i1VZFE..VZV20198808-198905

sub96135-51300

main90467-15004i2CT..CV20198808-198908

main90467-15022i2CT..CV20198908-199007

main90467-22003i3S#,4SFI..SV2#198808-199007

sub90467-21010

main96135-41300i1VZFE..VZV20198905-199007

sub96135-51300

16261BUNION(FOR WATER BY-PASS HOSE)

main90404-53050i2CT..CV20198808-199007

main90406-17001i3SGE..SV21198808-199007

sub90406-17012

16264HOSE, WATER BY-PASS, NO.2

main16264-62010i1VZFE..VZV20198808-199007

main16264-64060i2CT..CV20198808-199007

main16264-74040i4SFI..SV22198808-199007

16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)

main90467-13001i1VZFE..VZV20198808-198905

sub96135-51300

main90467-15004i2CT..CV20198808-198908

main90467-15022i2CT..CV20198908-199007

main90467-22003i4SFI..SV22198808-199007

sub90467-21010

main96135-41300i1VZFE..VZV20198905-199007

sub96135-51300

16267HOSE, WATER BY-PASS, NO.3

main16267-62010i1VZFE..VZV20198808-199007

main16267-64010i2CT..CV20198808-199007

16267ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)

main90467-11009i2CT..CV20198901-199007

sub96135-51100

main90467-11049i2CT..CV20198808-198901

sub90467-11009

main90467-13001i1VZFE..VZV20198808-198905

sub96135-51300

main96135-41300i1VZFE..VZV20198905-199007

sub96135-51300

16268PIPE, WATER BY-PASS, NO.1

main16268-62010i1VZFE..VZV20198808-199007

sub16268-62011

main16268-64040i2CT..CV20198808-199007

main16268-74010i3SFE..SV21,25198808-199007

main16268-74040i3SGE..SV21198808-199007

main16268-74050i4SFI..SV22198808-199007

16321INLET, WATER

main16321-62010i1VZFE..VZV20198808-199007

main16321-64020i2CT..CV20198808-199007

main16321-88360i3S#,4SFI..SV2#198808-199007

16325GASKET, WATER INLET HOUSING, NO.1

main16325-62010i1VZFE..VZV20198808-199007

main16325-63010i2CT..CV20198808-199007

sub16325-63011

16331OUTLET, WATER

main16304-74010i3SGE..SV21198808-198809

sub16304-74011

main16304-74011i3SGE..SV21198809-199007

main16304-74030i3SFE..SV21,25198808-199007

main16304-74051i4SFI..SV22198808-199007

main16304-74061i4SFI..SV22198808-199007

main16331-62010i1VZFE..VZV20198808-198905

sub16331-62011

main16331-62011i1VZFE..VZV20198905-199007

main16331-64030i2CT..CV20198808-199007

16331ATHERMOSTAT

main90916-03046i3S#,4SFI..SV2#198808-199007

main90916-03075i1VZFE..VZV20198808-199007

16331BPLUG(FOR WATER OUTLET)

main90344-53011i2CT..CV20198808-198910

main90345-53007i4SFI..SV22198808-198909

main90345-53009i4SFI..SV22..4FC198909-199007

main90345-53030i2CT..CV20198910-199007

16331GBOLT, STUD(FOR WATER INLET)

main92122-60816i2CT..CV20198808-199007

16332PIPE, WATER OUTLET, NO.1

main16332-64010i2CT..CV20198808-199007

16341GASKET, WATER OUTLET

main16341-62020i1VZFE..VZV20198808-199007

sub16341-62030

main16341-63010i3S#,4SFI..SV2#198808-198907

sub16341-63011

main16341-63011i3S#,4SFI..SV2#198907-199007

sub16341-74020

main16341-64010i2CT..CV20198808-198903

sub16341-64020

main16341-64020i2CT..CV20198903-199007

sub16341-64021

16345GASKET, WATER OUTLET PIPE

main16345-64020i2CT..CV20198808-198903

sub16345-64040

main16345-64040i2CT..CV20198903-199007

sub16345-64041

16361FAN

main16361-63040i3S#,4SFI..SV2#..5F198808-199007

main16361-64010i3S#,4SFI..SV2#..4FC198808-199007

main16361-64020i2CT..CV20..5F198808-199007

main16361-64030i1VZFE..VZV20198808-199007

main16361-64031i2CT..CV20..4FC198808-199007

16362FAN, NO.2

main16361-64040i2CT..CV20..4FC198808-199007

16363MOTOR, COOLING FAN

main16363-10010i3S#,4SFI..SV2#..5F198808-199007

main16363-16010i3S#,4SFI..SV2#..4FC198808-199007

main16363-16020i2CT..CV20..5F198808-199007

main16363-55010i1VZFE..VZV20198808-199007

main16363-64021i2CT..CV20..4FC198808-199007

main16363-64051i2CT..CV20..4FC198808-199007

16400RADIATOR ASSY

main16400-62011i1VZFE..VZV20..5F198808-199007

sub16400-62020

main16400-62020i1VZFE..VZV20..4FC198808-199007

main16400-64111i2CT..CV20..5F198808-199007

main16400-64540i2CT..CV20..4FC198808-199007

main16400-74200i3SFE..SV25..5F198808-199007

sub16400-74450

main16400-74430i3SFE..SV25..4FC198808-199007

sub16400-74400

main16400-74440i3S#,4SFI..SV21,22..5F198808-199007

sub16400-74450

main16400-74450i3S#,4SFI..SV21,22..4FC198808-199007

16470TANK ASSY, RADIATOR RESERVE

main16470-62011i1VZFE..VZV20198808-198811

sub16470-62021

main16470-62021i1VZFE..VZV20198811-199007

main16470-64070i2CT..CV20198808-199007

main16470-74041i3S#,4SFI..SV2#198808-199007

16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)

main90445-12078i2CT..CV20198808-199007

main90445-12078i3S#,4SFI..SV2#198808-199007

main90445-12078i3S#,4SFI..SV2#198808-198811

main90445-12078i2CT..CV20198808-199007

main90445-12897i1VZFE..VZV20198811-199007

16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)

main90467-11085i2CT..CV20198808-199007

16471CAP SUB-ASSY, RESERVE TANK

main16405-62011i1VZFE..VZV20198808-199007

main16405-64010i2CT..CV20198808-199007

main16405-74031i3S#,4SFI..SV2#198808-199007

sub16405-62011

16472HOSE, BREATHER

main85338-74040i3S#,4SFI..SV2#198808-199007

main85338-95A01i2CT..CV20198808-199007

16472APROTECTOR, HOSE

main16472-70070i2CT..CV20198808-199007

16533SUPPORT, RADIATOR, UPPER

main16533-64071i1VZFE..VZV20198808-199007

main16533-74040i3SFE..SV25..5F;3S#,4SFI..SV21,22198808-199007

main16533-74110i3SFE..SV25..4FC198808-199007

16571HOSE, RADIATOR, INLET

main16571-62010i1VZFE..VZV20198808-199007

main16571-64120i2CT..CV20198808-199007

main16571-74050i3S#,4SFI..SV2#198808

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90467-33002i2CT..CV20198808-199007

sub90467-34003

main90467-37001i1VZFE..VZV20198808-198903

sub90467-37003

main90467-37004i1VZFE..VZV20198904-199007

sub90467-37005

16572HOSE, RADIATOR, OUTLET

main16572-62010i1VZFE..VZV20198808-199007

main16572-64150i2CT..CV20198808-199007

main16572-74030i3SGE..SV21198808-199007

main16572-74050i3SFE,4SFI..SV2#198808

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90467-33002i2CT..CV20198808-199007

sub90467-34003

main90467-34003i1VZFE..VZV20198808-199007

sub90467-34004

main90467-37001i2CT..CV20198808-199007

INLET SIDE

sub90467-37003

16611BRACKET, RADIATOR RESERVE TANK

main16402-64010i2CT..CV20198808-199007

main16611-74030i3S#,4SFI..SV2#198808-199007

16701SHROUD SUB-ASSY, FAN

main16711-62020i1VZFE..VZV20198808-199007

main16711-64071i2CT..CV20..5F198808-199007

main16711-64092i2CT..CV20..4FC198808-199007

main16711-74070i3S#,4SFI..SV2#..5F198808-199007

main16711-74110i3S#,4SFI..SV2#..4FC198808-199007

16712SHROUD, FAN, NO.2

main16712-64031i2CT..CV20..4FC198808-199007

9009905164

main90099-05164

9011906056

main90119-06056

9011906311

main90119-06311

9017906115

main90179-06115

9017908040

main90179-08040

9046400459

main90464-00459

9048020014

main90480-20014

9092901017

main90929-01017

9111150625

main91111-50625

9165140816

main91651-40816

9165160814

main91651-60814

9331514010

main93315-14010

9331515010

main93315-15010

9331516014

main93315-16014
