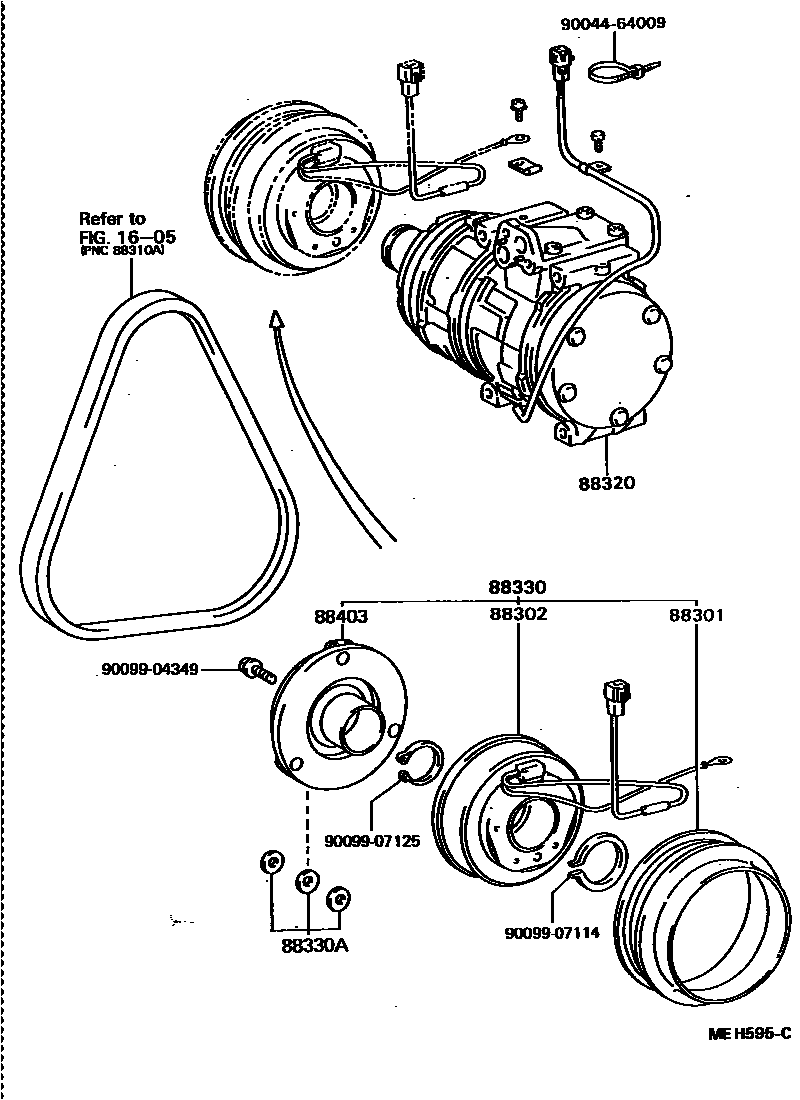

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

1605

88301ROTOR SUB-ASSY, MAGNET CLUTCH

main88412-20090iCV20,SV2#198608-198808

sub88412-2B030

main88412-32030iVZV20198704-198808

88302STATOR SUB-ASSY, MAGNET CLUTCH

main88411-32020iCV20,SV2#198608-198709

sub88411-32021

main88411-32021iCV20,SV2#198709-198808

main88411-32031iVZV20198704-198808

sub88411-35050

88320COMPRESSOR ASSY, COOLER

main88320-32080iCV20..5F198608-198808

sub88320-32081

main88320-32090iVZV20198704-198808

sub88320-32091

88330CLUTCH ASSY, MAGNET

main88410-32030iCV20..4FC198608-198808

sub88410-32060

main88410-32040iVZV20198704-198808

sub88410-32050

88330AWASHER (FOR MAGNET CLUTCH)

main88335-14020iCV20,SV2#,VZV20198608-198808

88403HUB SUB-ASSY, MAGNET CLUTCH

main88403-16011iCV20,SV2#,VZV20198608-198808

9004464009

main90044-64009

9009904349

main90099-04349

9009907114

main90099-07114

9009907125

main90099-07125

11 parts on this diagram · 3 diagrams in section
