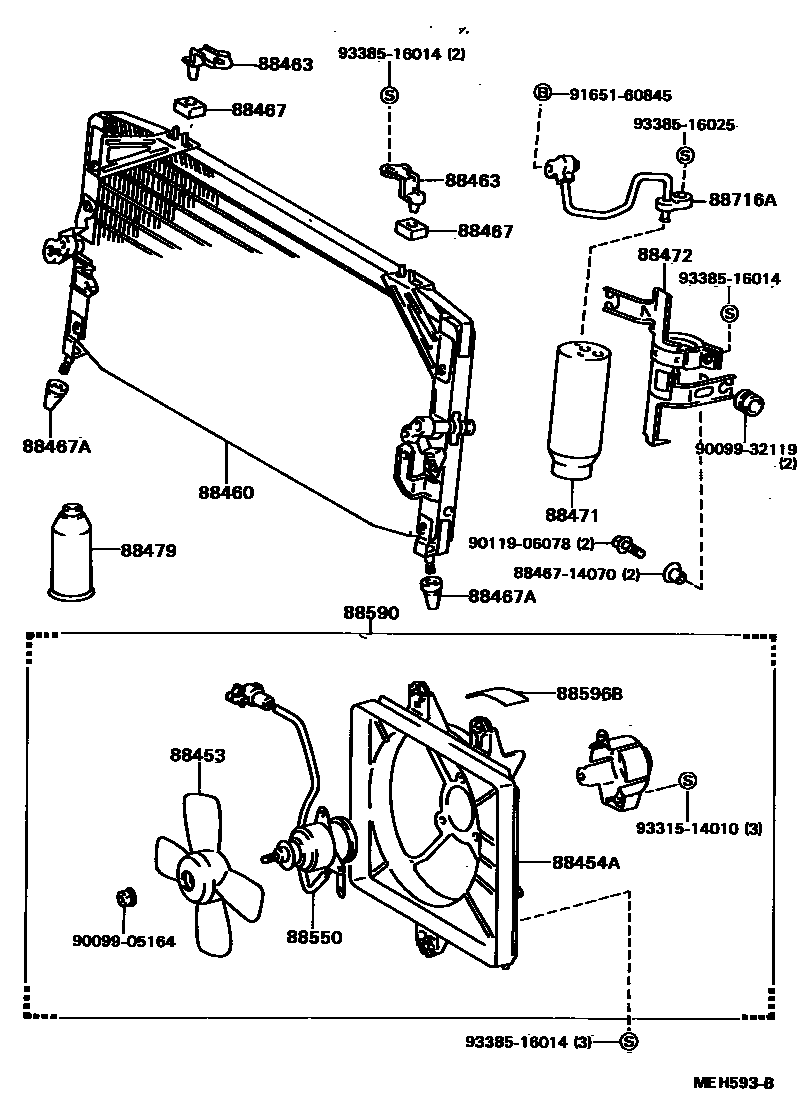

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

88453FAN, COOLING (FOR CONDENSER)

main16361-64040iCV20..5F198608-198808

main88453-32030iSV2#198608-198808

main88453-32040iVZV20198704-198808

88454ASHROUD, FAN

main16712-64031iCV20..5F198608-198808

main88454-32040iSV2#198608-198808

main88454-32050iVZV20198704-198808

88460CONDENSER ASSY, COOLER

main88460-32050iVZV20198704-198710

sub88460-32090

main88460-32070iSV20,21..ZT198608-198808

main88460-32080iCV20..4FC..ZT198608-198808

sub88460-32070

main88460-32090iVZV20198710-198808

88463BRACKET, COOLER CONDENSER, NO.1

main88463-32020iSV20..HT..VL;SV20..VE,VR,ZE;SV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX198608-198808

sub88463-32021

88467CUSHION, COOLER CONDENSER, NO.1

main88467-32030iCV20,SV2#198608-198808

88467ACUSHION, COOLER CONDENSER, NO.2

main88467-32020iCV20..5F..(VE,VL,XT)198608-198808

88471TANK, RECEIVER AIR CONDITIONER

main88471-10030iCV20,SV2#,VZV20198608-198808

sub88471-12040

88472BRACKET, RECEIVER TANK, NO.1

main88473-32020iCV20,SV2#,VZV20198608-198808

88479FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT)

main90986-02001iCV20..4FC..ZT198608-198808

sub90986-02004

sub90986-02005

88550MOTOR ASSY, BLOWER (FOR CONDENSER)

main16363-64021iCV20..5F198608-198808

main88550-32050iSV2#198608-198808

sub88550-32080

main88550-32060iVZV20198704-198808

88590BLOWER ASSY, W/SHROUD

main88590-32090iSV20..ZT198608-198808

sub88590-32081

main88590-32100iSV21,25..GT,VE,VL,VR,VX,XT,ZE,ZX198608-198808

sub88590-32081

main88590-32110iVZV20198704-198808

88596BPLATE, CAUTION, NO.1

main88596-14010iCV20..5F198608-198808

main88596-24010iSV2#198608-198808

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-32230iSV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198608-198808

8846714070CUSHION, COOLER CONDENSER, NO.1

main88467-14070

9009905164

main90099-05164

9009932119

main90099-32119

9011906078

main90119-06078

9165160845

main91651-60845

9331514010

main93315-14010

9338516014

main93385-16014

9338516025

main93385-16025
