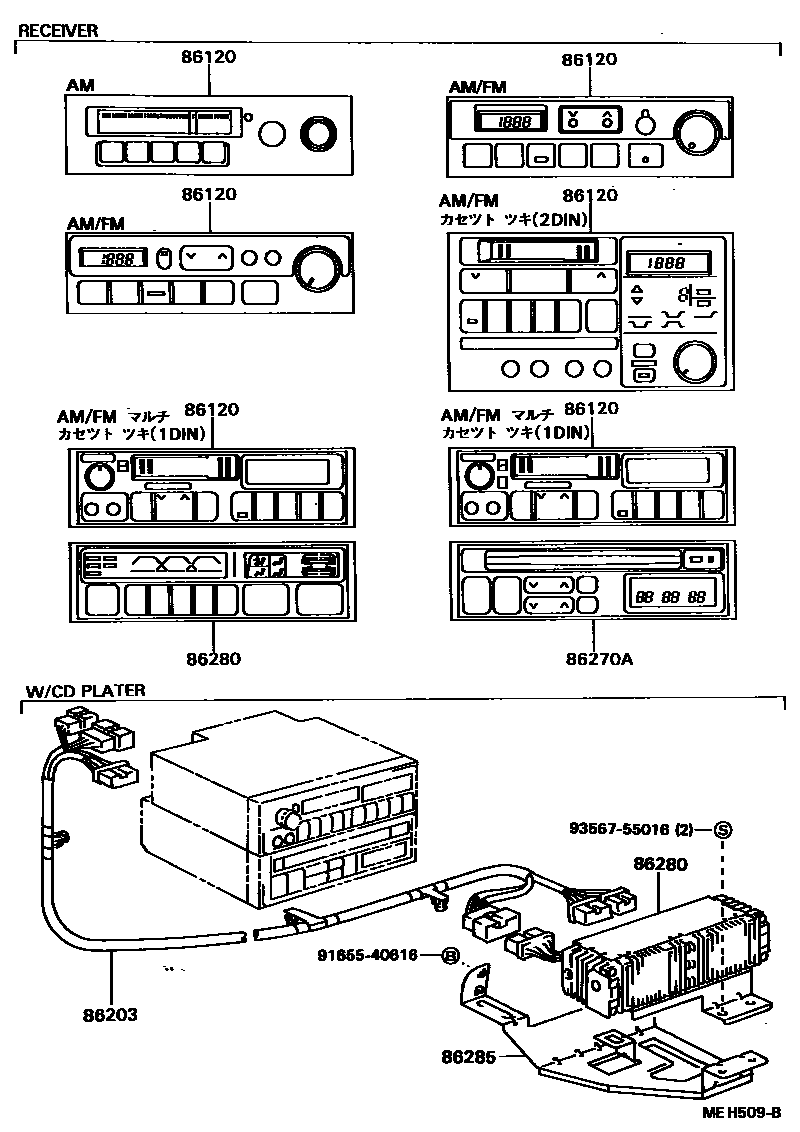

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1

86120RECEIVER ASSY, RADIO

main86120-14720iSV20..VR,ZE198701-198808

AM/FM

main86120-16350iSV20..LT,VC198608-198808

sub86120-10290

main86120-32120iCV20,SV20,21..VE,ZT198608-198808

AM/FM

main86120-32170iSV20..VR,ZE198608-198701

AM/FM

sub86120-14720

main86120-32180iCV20,SV2#..VE,VR,ZE,ZT198710-198808

main86120-32180iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

AM/FM W/CASSETTE

main86120-32190iCV20,SV20..VL,XT198608-198808

main86120-32200iSV21..GT,VX,ZX198710-198808

main86120-32200iSV21,VZV20..GT,PRO,VX,ZX198608-198710

AM/FM MULTIPLEX W/CASSETTE

86203WIRE, RADIO

main86203-32010iSV21,VZV20..GT,PRO,VX,ZX198608-198808

86270ADISC PLAYER ASSY

main86270-32010iSV21,VZV20..GT,PRO,VX,ZX198608-198805

sub86270-32011

main86270-32011iSV21,VZV20..GT,PRO,VX,ZX198805-198808

sub86270-14041

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-32030iSV21..HT..VX198804-198806

main86280-32030iVZV20198704-198710

W/O CD PLAYER

main86280-32030iVZV20198710-198808

main86280-32050iSV21,VZV20..GT,PRO,VX,ZX198608-198710

W/CD-PLAYER

main86280-32050iSV21,VZV20..GT,PRO,VX,ZX198710-198808

86285BRACKET, AMPLIFIER, NO.1

main86285-32010iSV21,VZV20..GT,PRO,VX,ZX198608-198808

9165540616

main91655-40616

9356755016

main93567-55016

7 parts on this diagram · 2 diagrams in section
