OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

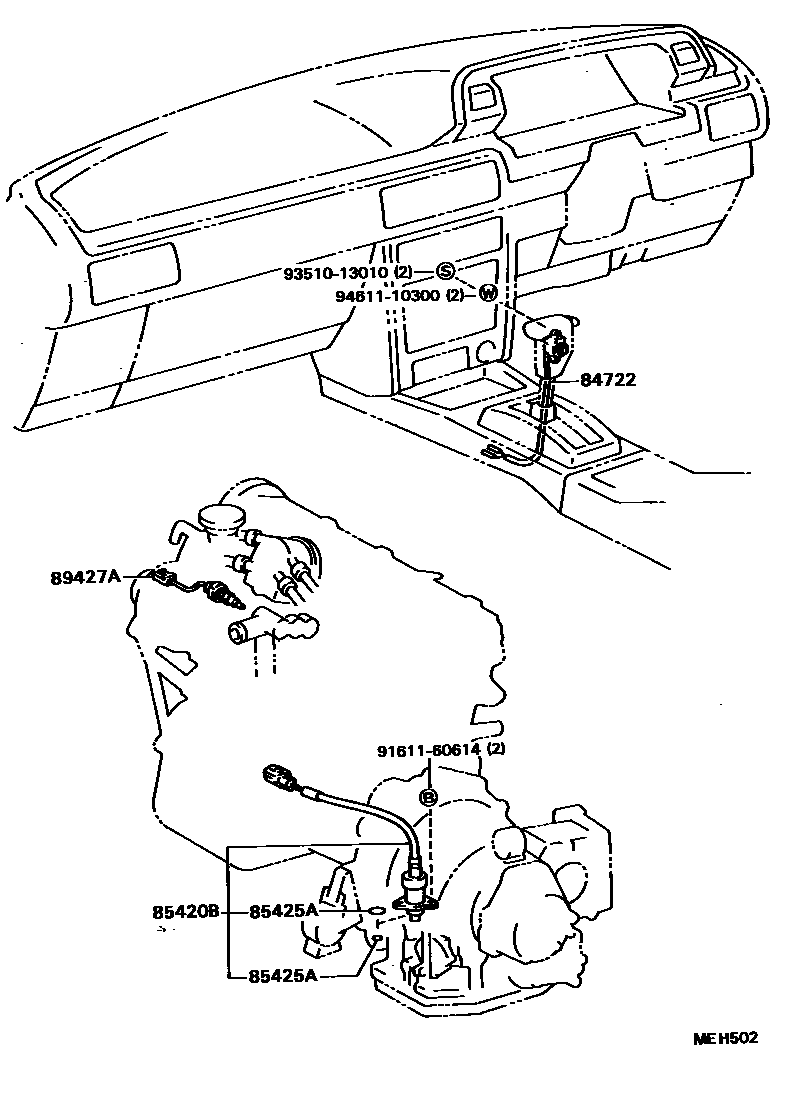

Parts diagram
84722SWITCH, TRANSMISSION CONTROL
main84722-32020-02i198710-198807
MAROON,TRIM3#
sub84722-32020
sub84722-12020
main84722-32020-02i198608-198710
MAROON,MAROON,TRIM3#
sub84722-32020
sub84722-12020
main84722-32020-04i198608-198710
BLUE,DARK BLUE,TRIM8#
sub84722-32020
sub84722-12020
main84722-32020-04i198710-198807
DARK BLUE,TRIM8#
sub84722-32020
sub84722-12020
main84722-32020-05i198608-198710
BEIGE,DARK BEIGE,TRIM4#
sub84722-32020
sub84722-12020
main84722-32020-05i198710-198808
DARK BEIGE,TRIM4#
sub84722-32020
sub84722-12020
main84722-32020-D0i198807-198808
MAROON,MAROON,TRIM3#
sub84722-32020
sub84722-12020
main84722-32020-J0i198807-198808
DARK BLUE,DARK BLUE,TRIM8#
sub84722-32020
sub84722-12020
85420SOLENOID ASSY, TRANSMISSION
main85420-32020i198710-198808
AISIN,NO.1
sub85420-32021
main85420-32020i198608-198710
NO.1,AISIN
sub85420-32021
main85420-32030i198608-198710
NO.1,DENSO
sub85420-32020
main85420-32030i198710-198801
DENSO,NO.1
sub85420-32020
main85420-32040i198608-198710
NO.2,AISIN
sub85420-32041
main85420-32040i198710-198808
AISIN,NO.2
sub85420-32041
main85420-32050i198608-198710
NO.2,DENSO
sub85420-32040
main85420-32050i198710-198801
DENSO,NO.2
sub85420-32040
main85420-32071i198608-198710
NO.3
sub85420-32061
main85420-32071i198710-198808
sub85420-32061
main85420-32130i198710-198801
TOYOTA,NO.1
sub85420-32020
main85420-32140i198710-198801
TOYOTA,NO.2
sub85420-32041
85420BSOLENOID ASSY, TRANSMISSION
main85420-32081i198608-198808
85425ARING, O (FOR OVERDRIVE SOLENOID)
main90301-06005i198608-198808
ID=7
main96721-19017i198608-198808
ID=17
89427ASWITCH, TEMPERATURE
main89427-32010i198608-198808
9161160614
main91611-60614
9351013010
main93510-13010
9461110300
main94611-10300

8 parts on this diagram · 2 diagrams in section
