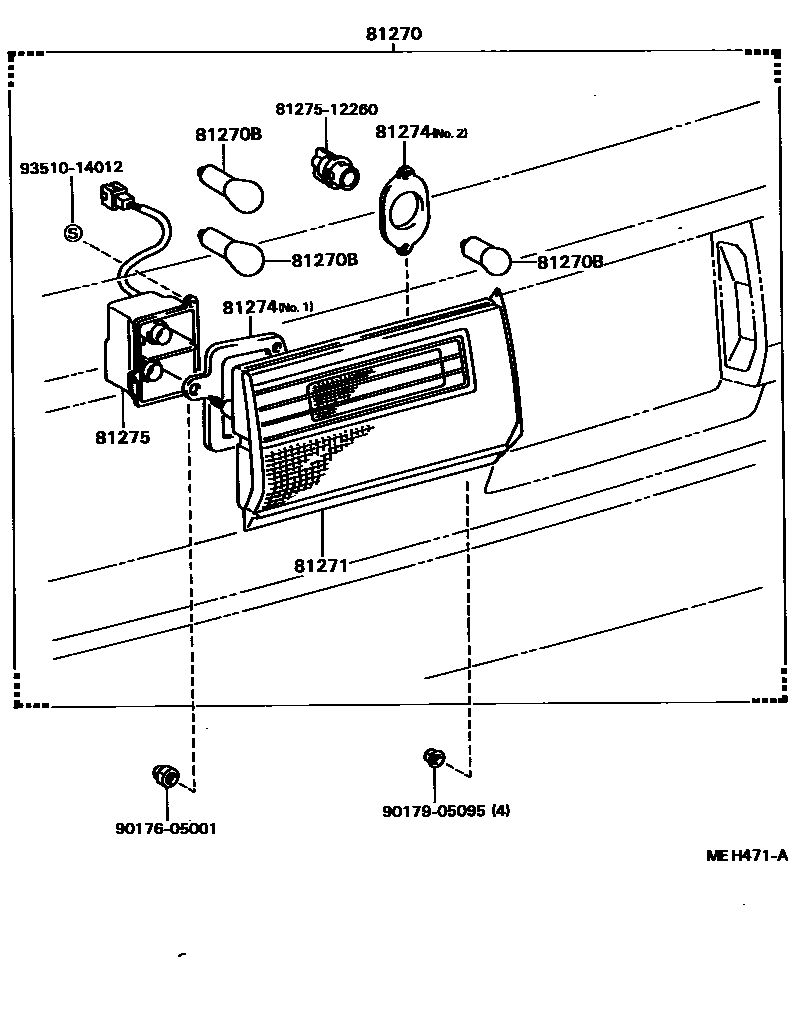

REAR LICENSE PLATE LAMP

0001 1 0002 1 0003 1

81270LAMP ASSY, LICENSE PLATE

main81270-32060iCV20,SV2#..CAM198608-198710

RH

main81270-32060iCV20,SV2#..CAM198710-198808

main81270-32110iCV20,SV2#..VIS..SED198608-198710

RH

main81270-32110iCV20,SV2#..VIS..SED198710-198808

main81270-32150iSV2#..HT198608-198808

main81270-32160iVZV20198710-198808

main81270-32160iVZV20198704-198710

RH

main81690-32030iCV20,SV2#..CAM198710-198808

main81690-32030iCV20,SV2#..CAM198608-198710

LH

main81690-32080iCV20,SV2#..VIS..SED198608-198710

LH

main81690-32080iCV20,SV2#..VIS..SED198710-198808

main81690-32090iVZV20198710-198808

main81690-32090iVZV20198704-198710

LH

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012iCV20,SV2#,VZV20..SED198608-198710

sub90981-12026

main90981-12012iCV20,SV2#,VZV20..SED198710-198808

sub90981-12026

main90981-12019iCV20,SV2#,VZV20..CAM198608-198710

sub99132-21210

main90981-12019iCV20,SV2#,VZV20..CAM198710-198808

sub99132-21210

main99132-11100iSV2#..HT198710-198808

main99132-11100iSV2#..HT198608-198710

main99132-11210iVZV20198704-198710

main99132-11210iVZV20198710-198808

main99132-11230iCV20,SV2#..SED198608-198710

main99132-11230iCV20,SV2#..SED198710-198808

main99132-21210iCV20,SV2#..VIS..SED198608-198710

main99132-21210iCV20,SV2#..VIS..SED198710-198808

81271LENS, LICENSE PLATE LAMP

main81271-16151iSV2#..HT198608-198808

main81271-32060iCV20,SV2#..CAM198608-198710

RH

main81271-32060iCV20,SV2#..CAM198710-198808

main81271-32110iCV20,SV2#..VIS..SED198608-198710

RH

main81271-32110iCV20,SV2#..VIS..SED198710-198808

main81271-32160iVZV20198704-198710

RH

main81271-32160iVZV20198710-198808

main81691-32030iCV20,SV2#..CAM198710-198808

main81691-32030iCV20,SV2#..CAM198608-198710

LH

main81691-32080iCV20,SV2#..VIS..SED198608-198710

LH

main81691-32080iCV20,SV2#..VIS..SED198710-198808

main81691-32090iVZV20198704-198710

LH

main81691-32090iVZV20198710-198808

81274GASKET, LICENSE PLATE LAMP BODY

main81272-32060iCV20,SV2#,VZV20..CAM198608-198710

NO.1

main81272-32060iCV20,SV2#,VZV20..CAM198710-198808

main81272-32110iCV20,SV2#..VIS..SED198608-198710

NO.1

main81272-32110iCV20,SV2#..VIS..SED198710-198808

main81274-32060iCV20,SV2#,VZV20..CAM198710-198808

main81274-32060iCV20,SV2#,VZV20..CAM198608-198710

NO.2

main81274-32110iCV20,SV2#..VIS..SED198710-198808

main81274-32110iCV20,SV2#..VIS..SED198608-198710

NO.2

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-32060iCV20,SV2#,VZV20..CAM198608-198710

RH

main81275-32060iCV20,SV2#,VZV20..CAM198710-198808

main81275-32110iCV20,SV2#..VIS..SED198710-198808

main81275-32110iCV20,SV2#..VIS..SED198608-198710

NO.2

main81278-32110iCV20,SV2#..VIS..SED198608-198808

RH,NO.1

main81695-32030iCV20,SV2#,VZV20..CAM198608-198710

LH

main81695-32030iCV20,SV2#,VZV20..CAM198710-198808

main81698-32080iCV20,SV2#..VIS..SED198608-198808

LH,NO.1

8127512260SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12260

9017605001

main90176-05001

9017905095

main90179-05095

9351014012

main93510-14012

9 parts on this diagram · 3 diagrams in section
