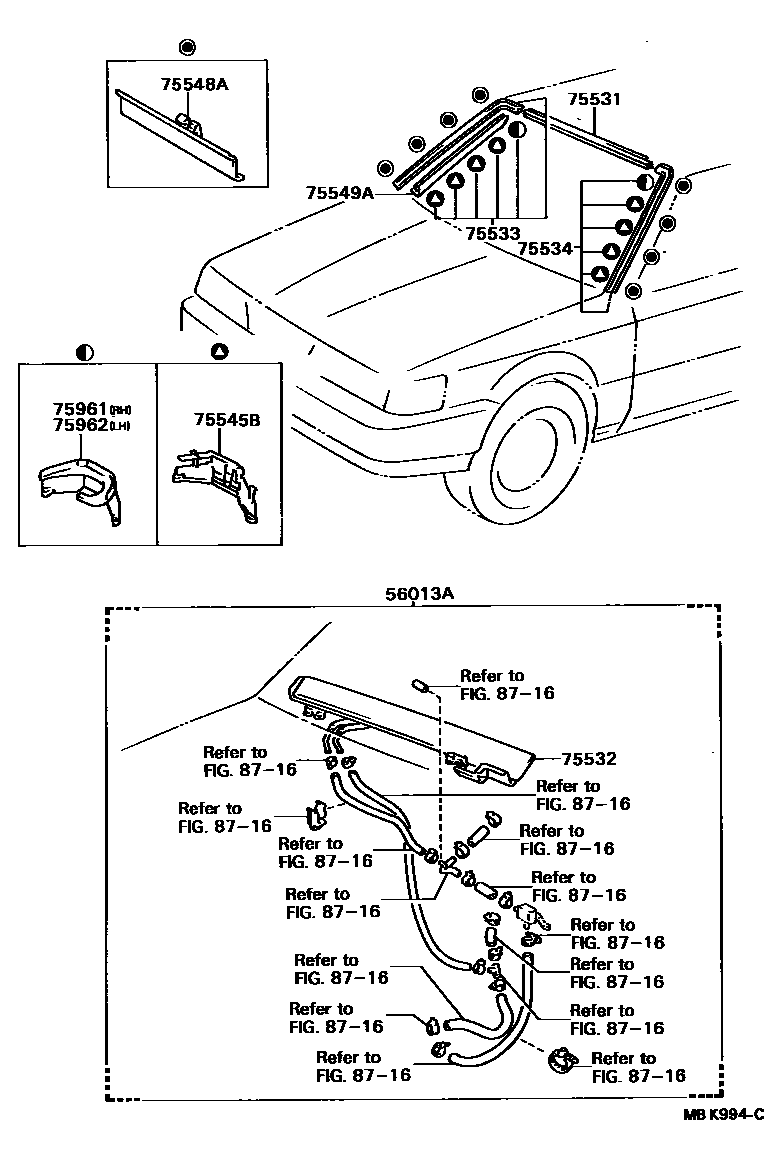

FRONT MOULDING

0001 1 0002 1

56013AMOULDING SUB-ASSY, FRONT WINDOW, INNER CENTER

main56013-32010iCV20,SV20198612-198710

COLD SPEC

main56013-32010iCV20,SV20,VZV20198710-198808

main56013-32020iSV21,25198710-198808

main56013-32020iSV21198612-198710

COLD SPEC

75531MOULDING, WINDSHIELD, OUTER UPPER

main75531-32030iCV20,SV2#,VZV20..SED198608-198808

sub75531-32031

main75531-32050iSV2#..HT198608-198808

sub75531-32110

75532MOULDING, WINDSHIELD, LOWER

main75504-32010iCV20,SV2#198612-198710

COLD SPEC

main75504-32010iCV20,SV2#198710-198808

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75533-32030iCV20,SV2#,VZV20..SED198608-198808

main75533-32040iSV2#..HT198608-198808

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75534-32030iCV20,SV2#,VZV20..SED198608-198808

main75534-32040iSV2#..HT198608-198808

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-32020iCV20,SV2#,VZV20..SED198703-198808

75548AFASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1

main75548-20060iCV20,SV2#,VZV20..SED198608-198808

75549AMOULDING, WINDSHIELD OUTSIDE SUB

main75549-32020iSV2#..HT198710-198808

main75549-32020iSV2#..HT198608-198710

COLD SPEC

main75549-32040iCV20,SV2#,VZV20..SED198608-198710

COLD SPEC

main75549-32040iCV20,SV20,21,VZV20..SED198710-198808

75961CLIP, WINDSHIELD OUTSIDE MOULDING, NO.4

main75961-32010iCV20,SV2#,VZV20..SED198703-198808

main75961-32020iSV2#..HT198608-198808

75962CLIP, WINDSHIELD OUTSIDE MOULDING, NO.5

main75961-32020iSV2#..HT198608-198808

main75962-32010iCV20,SV2#,VZV20..SED198703-198808

8716

11 parts on this diagram · 2 diagrams in section
