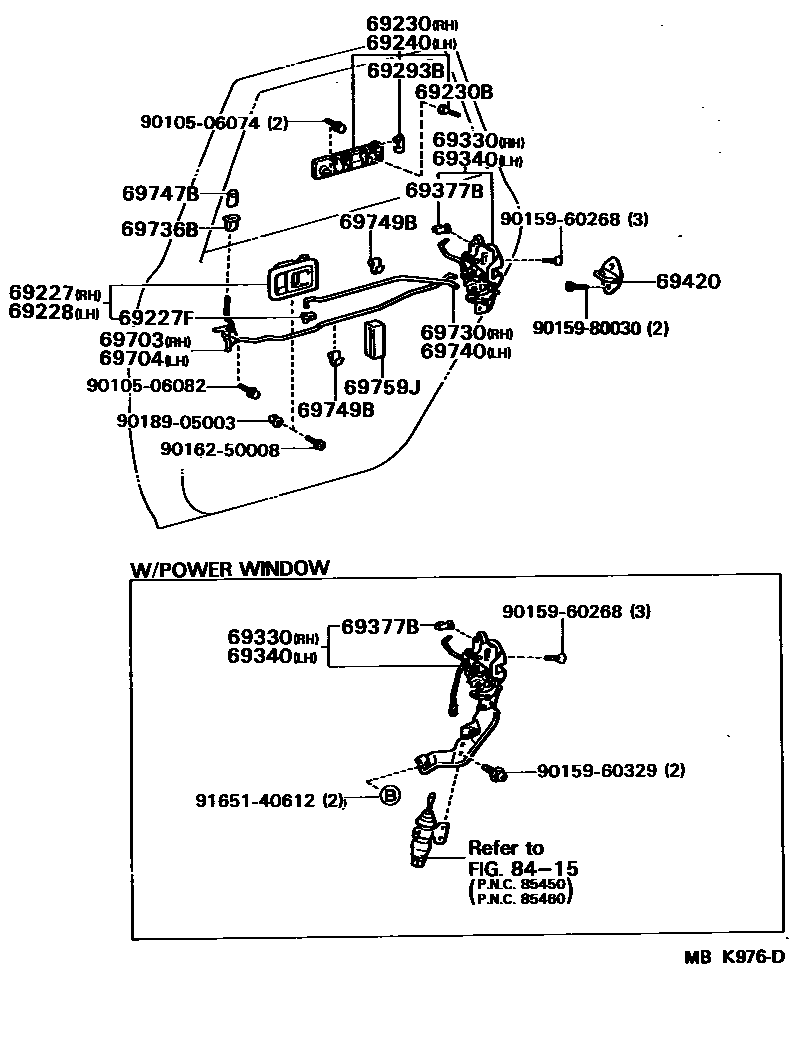

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69227HANDLE, REAR DOOR INSIDE, RH

main69205-32020-02iSV20..SED..(LT,VC,VL,XT)198608-198710

MAROON,MAROON,TRIM3#

sub69205-32020

main69205-32020-02iSV20..SED..(LT,VC,VL,XT)198710-198808

MAROON,TRIM3#

sub69205-32020

main69205-32020-04iSV20..SED..(LT,VC,VL,XT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub69205-32020

main69205-32020-04iSV20..SED..(LT,VC,VL,XT)198710-198808

DARK BLUE,TRIM8#

sub69205-32020

main69205-32020-05iSV20..SED..(LT,VC,VL,XT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69205-32020

main69205-32020-05iSV20..SED..(LT,VC,VL,XT)198710-198808

DARK BEIGE,TRIM4#

sub69205-32020

main69205-32030-02iSV20..XT198710-198808

sub69205-32030

main69205-32030-02iSV20..XT198710-198808

MAROON,TRIM3#

sub69205-32030

main69205-32030-02iSV20..SED..VL198710-198808

sub69205-32030

main69205-32030-02iSV20..SED..(VL,XT)198608-198710

MAROON,MAROON,TRIM3#

sub69205-32030

main69205-32030-02iSV20..SED..(VL,XT)198608-198710

SALOON,EXTRA,ETOILE,MAROON,MAROON,TRIM3#

sub69205-32030

main69205-32030-04iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-04iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

SALOON,EXTRA,ETOILE,BLUE,DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-04iSV20..SED..VL198710-198808

sub69205-32030

main69205-32030-04iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub69205-32030

main69205-32030-04iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

sub69205-32030

main69205-32030-05iCV20..VL,XT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69205-32030

main69205-32030-05iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198608-198710

SALOON,EXTRA,ETOILE,BEIGE,DARK BEIGE,TRIM4#

sub69205-32030

main69205-32030-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub69205-32030

main69205-32030-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

sub69205-32030

main69205-32030-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

sub69205-32030

main69205-32040-02iSV2#..HT198710-198808

MAROON,TRIM3#

main69205-32040-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main69205-32040-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main69205-32040-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main69205-32040-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main69205-32040-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

69227FSNAP(FOR REAR DOOR INSIDE HANDLE)

main69759-14050iSV2#..HT198710-198808

main69759-14050iSV2#..HT198710-198808

main69759-14050iSV20..SED..(LT,VC,VL,XT)198608-198710

RH

main69759-14050iSV2#..HT198608-198710

LH

main69759-24010iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

main69759-24010iSV20..XT198710-198808

main69759-24010iSV20..XT198710-198808

main69759-24010iCV20..VL,XT198608-198710

RH

main69759-24010iCV20..VL,XT198608-198710

SALOON,EXTRA,ETOILE,RH

main69759-24020iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

LH

main69759-24020iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

SALOON,EXTRA,ETOILE,LH

main69759-24020iSV20..SED..VL198710-198808

main69759-24020iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

main69759-24020iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

main69759-24070iSV2#..HT198710-198808

main69759-24070iSV2#..HT198710-198808

main69759-24070iSV2#..HT198608-198710

RH

main69759-24070iSV20..SED..(LT,VC,VL,XT)198608-198710

LH

69228HANDLE, REAR DOOR INSIDE, LH

main69206-32020-02iSV20..SED..(LT,VC,VL,XT)198608-198710

MAROON,MAROON,TRIM3#

sub69206-32020

main69206-32020-02iSV20..SED..(LT,VC,VL,XT)198710-198808

MAROON,TRIM3#

sub69206-32020

main69206-32020-04iSV20..SED..(LT,VC,VL,XT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub69206-32020

main69206-32020-04iSV20..SED..(LT,VC,VL,XT)198710-198808

DARK BLUE,TRIM8#

sub69206-32020

main69206-32020-05iSV20..SED..(LT,VC,VL,XT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69206-32020

main69206-32020-05iSV20..SED..(LT,VC,VL,XT)198710-198808

DARK BEIGE,TRIM4#

sub69206-32020

main69206-32030-02iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

MAROON,TRIM3#

sub69206-32030

main69206-32030-02iSV20..SED..VL198710-198808

sub69206-32030

main69206-32030-02iSV20..SED..(VL,XT)198608-198710

SALOON,EXTRA,ETOILE,MAROON,MAROON,TRIM3#

sub69206-32030

main69206-32030-02iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

MAROON,MAROON,TRIM3#

sub69206-32030

main69206-32030-02iSV20..XT198710-198808

sub69206-32030

main69206-32030-04iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-04iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

SALOON,EXTRA,ETOILE,BLUE,DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-04iSV20..SED..VL198710-198808

sub69206-32030

main69206-32030-04iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub69206-32030

main69206-32030-04iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

sub69206-32030

main69206-32030-05iCV20..VL,XT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69206-32030

main69206-32030-05iCV20,SV2#..SED..(GT,VE,VR,VX,ZE,ZT,ZX)198608-198710

SALOON,EXTRA,ETOILE,BEIGE,DARK BEIGE,TRIM4#

sub69206-32030

main69206-32030-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub69206-32030

main69206-32030-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

sub69206-32030

main69206-32030-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

sub69206-32030

main69206-32040-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main69206-32040-02iSV2#..HT198710-198808

MAROON,TRIM3#

main69206-32040-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main69206-32040-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main69206-32040-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main69206-32040-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-32030iCV20,SV2#,VZV20..SED198608-198808

main69230-32020iSV2#..HT198608-198808

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03021iCV20,SV2#,VZV20198608-198710

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-32030iCV20,SV2#,VZV20..SED198608-198808

main69240-32020iSV2#..HT198608-198808

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iCV20,SV2#,VZV20198608-198710

RH

main69293-12050iCV20,SV2#..SED198710-198808

main69293-12060iCV20,SV2#,VZV20..SED198710-198808

main69293-12060iCV20,SV2#,VZV20198608-198710

LH

69330LOCK ASSY, REAR DOOR, RH

main69330-32090iCV20,SV20,25..SED..(LT,VC,VL,XT)198608-198808

main69330-32100iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198808

sub69330-32180

main69330-32100iCV20,SV20..SED..VL198708-198710

ETOILE

sub69330-32180

main69330-32100iCV20,SV20..SED..VL198710-198808

sub69330-32180

main69330-32150iSV20,25..HT..VL198608-198808

main69330-32160iSV2#..HT..(GT,VE,VR,VX)198710-198808

main69330-32160iSV20..HT..VL198708-198710

ETOILE

main69330-32160iSV2#..HT..(GT,VE,VR,VX)198608-198710

69340LOCK ASSY, REAR DOOR, LH

main69340-32090iCV20,SV20,25..SED..(LT,VC,VL,XT)198608-198808

main69340-32100iCV20,SV20..SED..VL198708-198710

ETOILE

sub69340-32180

main69340-32100iCV20,SV20..SED..VL198710-198808

sub69340-32180

main69340-32100iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198808

sub69340-32180

main69340-32150iSV20..HT..VL198608-198808

main69340-32160iSV20..HT..VL198710-198808

main69340-32160iSV2#..HT..(GT,VE,VR,VX)198608-198710

main69340-32160iSV20..HT..VL198708-198710

ETOILE

69377BSNAP, REAR DOOR LOCK CONTROL ROD

main69759-22030iSV2#..HT198608-198808

main69759-24050iCV20,SV2#,VZV20..SED198608-198710

LH

main69759-24050iCV20,SV20..SED..VL198710-198808

main69759-24060iCV20,SV20..SED..VL198710-198808

main69759-24060iCV20,SV2#,VZV20..SED198608-198710

RH

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-87001iCV20,SV2#,VZV20198608-198808

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69737-32040iSV2#..HT198608-198808

main69770-32030iCV20,SV2#,VZV20..SED198608-198808

sub69770-32040

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69738-32040iSV2#..HT198608-198808

main69780-32030iCV20,SV2#,VZV20..SED198608-198808

sub69780-32040

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69713-32020iCV20,SV2#,VZV20..SED198608-198808

main69713-32030iSV2#..HT198608-198808

69736BGUIDE, REAR DOOR LOCK LINK

main69736-12030iCV20,SV2#,VZV20..SED198608-198808

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69714-32020iCV20,SV2#,VZV20..SED198608-198808

main69714-32030iSV2#..HT198608-198808

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69741-32020-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub69741-32020

main69741-32020-02iCV20,SV2#,VZV20..SED198608-198710

MAROON,MAROON,TRIM3#

sub69741-32020

main69741-32020-04iCV20,SV2#,VZV20..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub69741-32020

main69741-32020-04iCV20,SV2#,VZV20..SED198710-198808

DARK BLUE,TRIM8#

sub69741-32020

main69741-32020-05iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub69741-32020

main69741-32020-05iCV20,SV2#..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub69741-32020

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30020iCV20,SV2#,VZV20..SED198608-198808

main69749-32010iSV2#..HT198608-198808

69759JSILENCER, DOOR LOCK LINK

main69759-30021iCV20,SV2#,VZV20..SED198608-198808

8415

9010506074

main90105-06074

9010506082

main90105-06082

9015960268

main90159-60268

9015960329

main90159-60329

9015980030

main90159-80030

9016250008

main90162-50008

9018905003

main90189-05003

9165140612

main91651-40612

28 parts on this diagram · 2 diagrams in section
