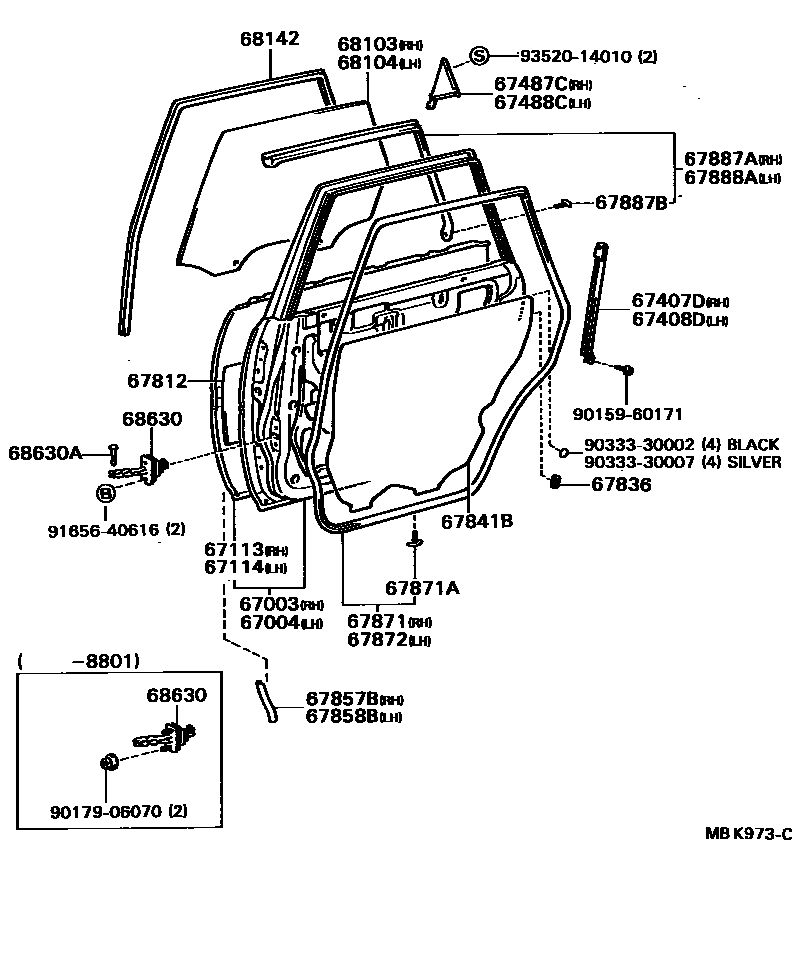

REAR DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67003PANEL SUB-ASSY, REAR DOOR, RH

main67003-32130iCV20,SV2#,VZV20..SED198608-198808

main67003-32200iSV2#..HT198608-198808

sub67003-32280

sub90541-09069

sub90950-01682

67004PANEL SUB-ASSY, REAR DOOR, LH

main67004-32130iCV20,SV2#,VZV20..SED198608-198808

main67004-32200iSV2#..HT198608-198808

sub67004-32280

sub90541-09069

sub90950-01682

67113PANEL, REAR DOOR, OUTER RH

main67113-32040iCV20,SV2#,VZV20..SED198608-198808

main67113-32060iSV2#..HT198608-198808

67114PANEL, REAR DOOR, OUTER LH

main67114-32040iCV20,SV2#,VZV20..SED198608-198808

main67114-32060iSV2#..HT198608-198808

67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH

main67407-32030iCV20,SV2#,VZV20..SED198608-198808

main67407-32040iSV2#..HT198608-198808

sub67407-32050

67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH

main67408-32030iCV20,SV2#,VZV20..SED198608-198808

main67408-32040iSV2#..HT198608-198808

sub67408-32050

67487CSEAL, REAR DOOR REAR GUIDE, RH

main67487-32030iCV20,SV2#,VZV20..SED198608-198808

67488CSEAL, REAR DOOR REAR GUIDE, LH

main67488-32030iCV20,SV2#,VZV20..SED198608-198808

67812PAD, REAR DOOR SILENCER

main67812-12010iCV20,SV2#,VZV20198608-198808

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-14010iCV20,SV2#,VZV20..SED198608-198808

main67836-32010iSV2#..HT198608-198808

67841BCOVER, REAR DOOR SERVICE HOLE

main67841-32050iCV20,SV2#,VZV20..SED198608-198808

main67841-32060iSV2#..HT198608-198808

67857BPROTECTOR, REAR DOOR PANEL, RH

main58741-12060iSV25198712-198808

67858BPROTECTOR, REAR DOOR PANEL, LH

main58741-12060iSV25198712-198808

67871WEATHERSTRIP, REAR DOOR, RH

main67871-32050iCV20,SV2#,VZV20..SED198608-198808

main67871-32060iSV2#..HT198608-198808

67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)

main67867-20010iCV20,SV2#,VZV20..SED198608-198710

RH

main67867-20010iSV2#..HT198710-198808

main67868-20010iCV20,SV2#,VZV20..SED198608-198710

LH

sub67867-20010

main67868-20010iCV20,SV2#,VZV20..SED198710-198808

sub67867-20010

67872WEATHERSTRIP, REAR DOOR, LH

main67872-32050iCV20,SV2#,VZV20..SED198608-198808

main67872-32060iSV2#..HT198608-198808

67887AWEATHERSTRIP, REAR DOOR, NO.2 RH

main67887-32010iCV20,SV2#,VZV20..SED198608-198808

67887BCLIP(FOR REAR DOOR WEATHERSTRIP)

main67869-30020iCV20,SV2#,VZV20..SED198608-198808

67888AWEATHERSTRIP, REAR DOOR, NO.2 LH

main67888-32010iCV20,SV2#,VZV20..SED198608-198808

68103GLASS SUB-ASSY, REAR DOOR, RH

main68113-32050iCV20,SV2#,VZV20..SED198608-198710

main68113-32050iCV20,SV2#,VZV20..SED198710-198808

main68113-32060iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

main68113-32060iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main68113-32060iCV20,SV20..SED..VL198708-198710

main68113-32070iSV2#..HT198710-198808

main68113-32070iSV2#..HT198608-198710

main68113-32080iSV20,21..HT;SV25..HT..VR198710-198808

main68113-32080iSV20..HT..VL198708-198710

main68113-32080iSV2#..HT..(GT,VE,VR,VX)198608-198710

68104GLASS SUB-ASSY, REAR DOOR, LH

main68114-32050iCV20,SV2#,VZV20..SED198710-198808

main68114-32050iCV20,SV2#,VZV20..SED198608-198710

main68114-32060iCV20,SV20..SED..VL198708-198710

main68114-32060iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX)198710-198808

main68114-32060iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main68114-32070iSV2#..HT198710-198808

main68114-32070iSV2#..HT198608-198710

main68114-32080iSV20,21..HT;SV25..HT..VR198710-198808

main68114-32080iSV20..HT..VL198708-198710

main68114-32080iSV2#..HT..(GT,VE,VR,VX)198608-198710

68142RUN, REAR DOOR GLASS

main68142-32050iCV20,SV2#,VZV20..SED198710-198808

main68142-32050iCV20,SV2#,VZV20..SED198608-198710

RH

main68152-32010iCV20,SV2#,VZV20..SED198608-198710

LH

main68152-32010iCV20,SV2#,VZV20..SED198710-198808

68630CHECK ASSY, REAR DOOR

main68630-32020iCV20,SV2#,VZV20198608-198710

main68630-32030iCV20,SV2#,VZV20198710-198801

sub68630-32031

main68630-32031iCV20,SV2#,VZV20198801-198808

68630APIN(FOR REAR DOOR CHECK)

main68617-32010iCV20,SV2#,VZV20198608-198808

9015960171

main90159-60171

9017906070

main90179-06070

9033330002

main90333-30002

9033330007

main90333-30007

9165640616

main91656-40616

9352014010

main93520-14010

30 parts on this diagram · 3 diagrams in section
