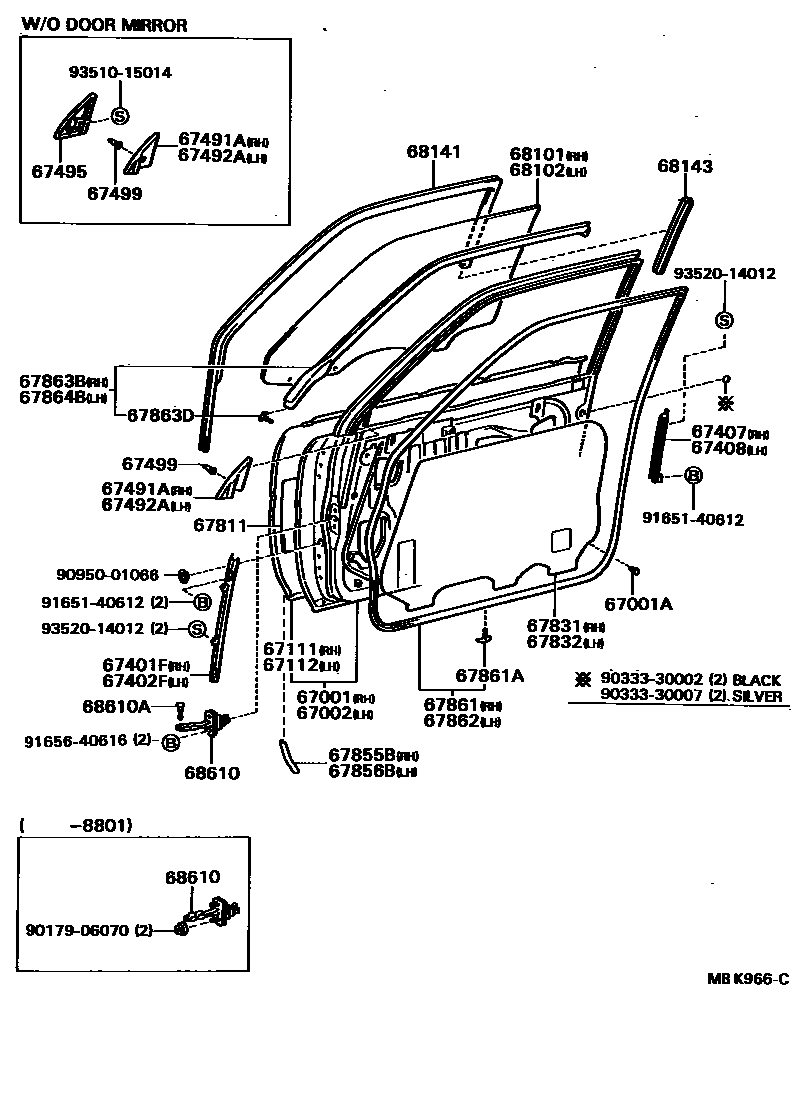

FRONT DOOR PANEL & GLASS

0001 1 0002 1 0003 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-32170iVZV20198704-198710

W/O DOOR MIRROR

main67001-32170iVZV20198710-198808

main67001-32190iVZV20198710-198808

main67001-32190iVZV20198704-198710

W/DOOR MIRROR

main67001-32200iCV20,SV2#..SED..(GT,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR

main67001-32200iCV20,SV2#..SED..(GT,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67001-32220iCV20,SV2#..SED198608-198710

W/O DOOR MIRROR

main67001-32220iSV20..LT,VC198710-198808

main67001-32230iSV2#..HT198608-198808

sub67001-32280

sub90950-01681

67001ACUSHION, FRONT DOOR PANEL

main90541-09006iCV20,SV2#,VZV20..SED198608-198808

main90541-09054iSV2#..HT198608-198808

sub90541-09006

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-32190iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67002-32190iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR

main67002-32220iSV2#..HT198608-198808

sub67002-32200

sub90950-01681

main67002-32230iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67002-32230iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR

67111PANEL, FRONT DOOR, OUTER RH

main67111-32040iCV20,SV2#,VZV20..SED198608-198808

main67111-32060iSV2#..HT198608-198808

67112PANEL, FRONT DOOR, OUTER LH

main67112-32040iCV20,SV2#,VZV20..SED198608-198808

main67112-32060iSV2#..HT198608-198808

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-32070iSV20..LT,VC198710-198808

main67401-32070iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR

main67401-32080iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67401-32080iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-32070iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR

main67402-32070iSV20..LT,VC198710-198808

main67402-32080iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR

main67402-32080iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

67407FRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-32020iCV20,SV2#,VZV20..SED198608-198808

67408FRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-32020iCV20,SV2#,VZV20..SED198608-198808

67491AGARNISH, FRONT DOOR LOWER FRAME BRACKET, RH

main67491-32060iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR

main67491-32060iSV20..LT,VC198710-198808

main67491-32070iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR

main67491-32070iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67491-32090iSV2#..HT198608-198808

67492AGARNISH, FRONT DOOR LOWER FRAME BRACKET, LH

main67492-32060iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67492-32060iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR

main67492-32070iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main67492-32070iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR

main67492-32090iSV2#..HT198608-198808

67495COVER, FRONT DOOR FRONT LOWER FRAME, UPPER

main67495-32030iSV20..LT,VC198710-198808

main67495-32030iCV20,SV2#,VZV20..SED198608-198710

RH

main67495-32050iSV2#..HT198608-198710

RH

main67495-32050iSV2#..HT198710-198808

main67496-32030iSV20..LT,VC198710-198808

main67496-32030iCV20,SV2#,VZV20..SED198608-198710

LH

main67496-32050iSV2#..HT198608-198710

LH

main67496-32050iSV2#..HT198710-198808

67499RETAINER, FRONT DOOR LOWER FRAME BRACKET GARNISH

main67499-32010iCV20,SV2#,VZV20..SED198608-198808

67811PAD, FRONT DOOR SILENCER

main67812-12010iCV20,SV2#,VZV20198608-198808

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-32050iCV20,SV2#,VZV20..SED198608-198808

main67831-32060iSV2#..HT198608-198808

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-32060iSV2#..HT198608-198808

main67832-32050iCV20,SV2#,VZV20..SED198608-198808

67855BPROTECTOR, FRONT DOOR PANEL, RH

main58741-12060iSV25198712-198808

67856BPROTECTOR, FRONT DOOR PANEL, LH

main58741-12060iSV25198712-198808

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-32090iCV20,SV2#,VZV20..SED198608-198808

main67861-32100iSV2#..HT198608-198808

67861ARETAINER(FOR FRONT DOOR WEATHERSTRIP)

main67868-30040iSV2#..HT198710-198808

main67868-30040iSV2#..HT198608-198710

RH

main67868-30050iSV2#..HT198808-198808

sub67867-12150

main67868-32010iSV2#..HT198710-198808

main67868-32010iSV2#..HT198608-198710

LH

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-32090iCV20,SV2#,VZV20..SED198608-198808

main67862-32100iSV2#..HT198608-198808

67863BWEATHERSTRIP, FRONT DOOR, NO.2 RH

main67863-32010iCV20,SV2#,VZV20..SED198608-198808

67863DRETAINER, RH(FOR FRONT DOOR NO.2 WEATHERSTRIP)

main67868-22010iCV20,SV2#,VZV20..SED198710-198808

main67868-22010iCV20,SV2#,VZV20..SED198608-198710

LH

main67868-30040iCV20,SV2#,VZV20..SED198608-198710

RH

main67868-30040iCV20,SV2#,VZV20..SED198710-198808

67864BWEATHERSTRIP, FRONT DOOR, NO.2 LH

main67864-32010iCV20,SV2#,VZV20..SED198608-198808

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68111-32090iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main68111-32090iCV20,SV2#,VZV20..SED198608-198710

main68111-32090iSV20..LT,VC198710-198808

main68111-32100iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

main68111-32100iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main68111-32110iCV20,SV20..SED..VL198708-198710

main68111-32110iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main68111-32110iCV20,SV20,21..ZT198710-198808

main68111-32110iCV20,SV20,21..ZT198710-198808

main68111-32120iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main68111-32120iCV20,SV20..SED..VL198710-198808

main68111-32120iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX)198710-198808

main68111-32130iSV2#..HT198710-198808

main68111-32130iSV2#..HT198608-198710

main68111-32140iSV2#..HT..(GT,VE,VR,VX)198608-198710

main68111-32140iSV20,21..HT;SV25..HT..VR198710-198808

main68111-32140iSV20..HT..VL198708-198710

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68112-32090iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main68112-32090iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main68112-32090iCV20,SV2#,VZV20..SED198608-198710

main68112-32100iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

main68112-32100iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

main68112-32110iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX)198710-198808

main68112-32110iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main68112-32110iCV20,SV20..SED..VL198708-198710

main68112-32110iCV20,SV20..SED..VL198710-198808

main68112-32120iCV20,SV20,21..ZT198710-198808

main68112-32120iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX)198710-198808

main68112-32120iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

main68112-32120iCV20,SV20..SED..VL198708-198710

main68112-32130iSV2#..HT198710-198808

main68112-32130iSV2#..HT198608-198710

main68112-32140iSV20..HT..VL198708-198710

main68112-32140iSV2#..HT..(GT,VE,VR,VX)198608-198710

main68112-32140iSV20,21..HT;SV25..HT..VR198710-198808

68141RUN, FRONT DOOR GLASS

main68141-32070iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR,RH

sub68141-32071

main68141-32070iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

sub68141-32071

main68141-32080iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

sub68141-32081

main68141-32080iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR,RH

sub68141-32081

main68141-32080iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

sub68141-32081

main68151-32010iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

W/DOOR MIRROR,LH

sub68151-32011

main68151-32010iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

sub68151-32011

main68151-32020iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

sub68151-32021

main68151-32020iCV20,SV2#,VZV20..SED198608-198710

W/O DOOR MIRROR,LH

sub68151-32021

main68151-32020iSV20..LT,VC198710-198808

sub68151-32021

68143RUN, FRONT DOOR GLASS, LOWER

main68143-32040iCV20,SV2#,VZV20..SED198608-198808

68610CHECK ASSY, FRONT DOOR

main68610-32040iCV20,SV2#,VZV20198608-198801

sub68610-32041

main68610-32041iCV20,SV2#,VZV20198801-198808

68610APIN(FOR FRONT DOOR CHECK)

main68617-32010iCV20,SV2#,VZV20198608-198808

9017906070

main90179-06070

9033330002

main90333-30002

9033330007

main90333-30007

9095001066

main90950-01066

9165140612

main91651-40612

9165640616

main91656-40616

9351015014

main93510-15014

9352014012

main93520-14012

38 parts on this diagram · 3 diagrams in section
