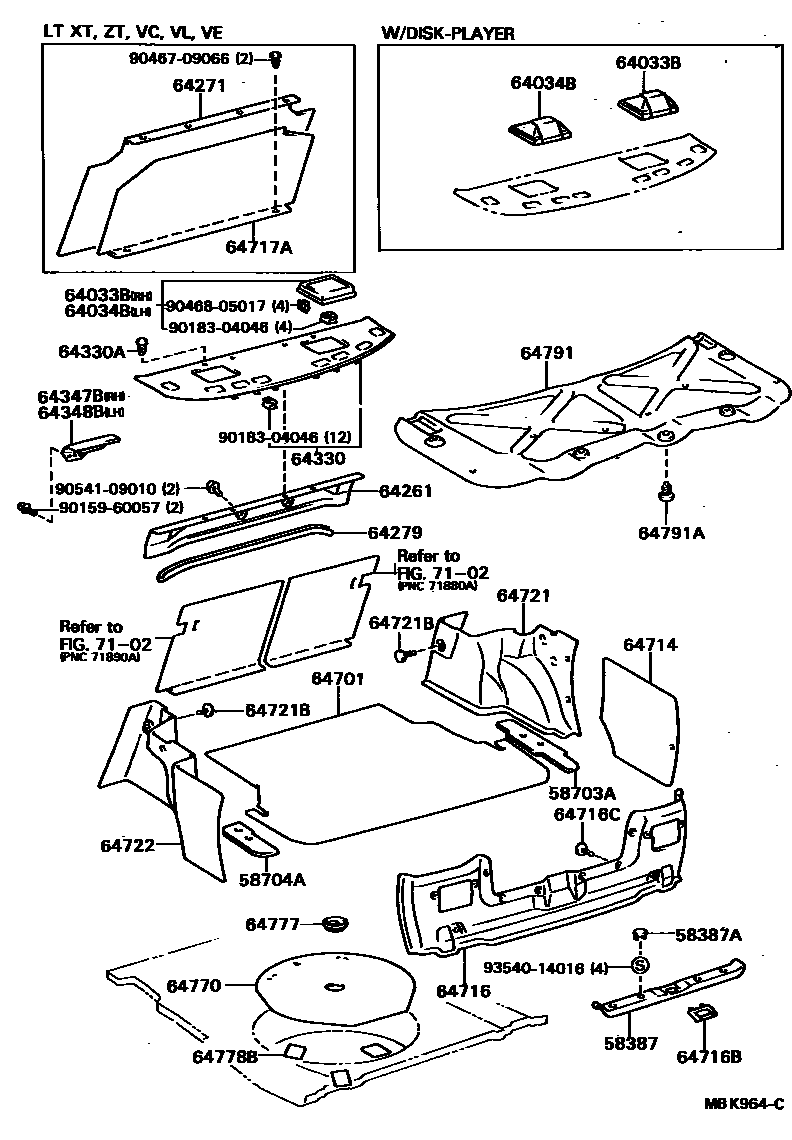

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1 0003 1 0004 1

58387PLATE, REAR FLOOR FINISH

main58387-32020-03iSV20..SED..(VL,XT)198608-198710

SALOON,EXTRA,ETOILE,GRAY,LIGHT GRAY

main58387-32020-03iCV20..VL,XT198608-198710

GRAY,LIGHT GRAY

main58387-32020-03iSV20..SED..VL198710-198710

main58387-32020-03iSV20..XT198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main58387-32020-03iSV20..XT198710-198808

58387APLUG, HOLE(FOR REAR FLOOR FINISH PLATE)

main90950-01503-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198807

sub90950-01503

main90950-01503-05iSV20..SED..VL198710-198710

sub90950-01503

main90950-01503-05iSV20..SED..VL198710-198807

DARK BEIGE,TRIM4#

sub90950-01503

main90950-01503-12iSV20..XT198710-198807

MAROON,TRIM3#

sub90950-01503

main90950-01503-12iSV20..SED..VL198710-198807

sub90950-01503

main90950-01503-12iSV20..SED..VL198710-198710

sub90950-01503

main90950-01503-14iSV20..XT198710-198807

DARK BLUE,TRIM8#

sub90950-01503

main90950-01503-14iSV20..SED..VL198710-198710

sub90950-01503

main90950-01503-14iSV20..XT198710-198807

sub90950-01503

main90950-01503-23iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

GRAY,LIGHT GRAY

sub90950-01503

main90950-01503-23iSV20..XT198710-198807

LIGHT GRAY,TRIM3#,4#,8#

sub90950-01503

main90950-01503-23iSV20..XT198710-198807

sub90950-01503

main90950-01503-23iSV20..SED..VL198710-198710

sub90950-01503

main90950-01503-23iSV20..SED..(VL,XT)198608-198710

SALOON,EXTRA,ETOILE,GRAY,LIGHT GRAY

sub90950-01503

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-32010iCV20,SV2#,VZV20198608-198808

main58703-32020iSV25198710-198808

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-32010iSV20,21,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198808

main58704-32020iSV2#..HT198608-198808

main58704-32030iCV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT)198610-198808

main58704-32040iSV25..SED198710-198808

64033BGRILLE SUB-ASSY, REAR SPEAKER, RH

main64033-22040-02iSV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX198710-198808

MAROON,TRIM3#

main64033-22040-02iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

MAROON,MEDIUM GRAY,TRIM3#

main64033-22040-04iSV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX198710-198808

DARK BLUE,TRIM8#

main64033-22040-04iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

BLUE,DARK BLUE,TRIM8#

main64033-22040-05iSV25..SED..(VR,ZE);SV20,21..GT,VR,VX,ZE,ZX198710-198808

DARK BEIGE,TRIM4#

main64033-22040-05iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

BEIGE,DARK BEIGE,TRIM4#

main86269-32010iSV21,VZV20..GT,PRO,VX,ZX198608-198710

W/DISC-PLAYER

main86269-32010iSV21,25..HT..(GT,VR,VX)198710-198808

64034BGRILLE SUB-ASSY, REAR SPEAKER, LH

main64033-22040-02iSV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX198710-198808

MAROON,TRIM3#

main64033-22040-02iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

MAROON,MEDIUM GRAY,TRIM3#

main64033-22040-04iSV25..SED..(VR,ZE);SV20,21,VZV20..GT,PRO,VR,VX,ZE,ZX198710-198808

DARK BLUE,TRIM8#

main64033-22040-04iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198710

BLUE,DARK BLUE,TRIM8#

main64033-22040-05iSV25..SED..(VR,ZE);SV20,21..GT,VR,VX,ZE,ZX198710-198808

DARK BEIGE,TRIM4#

main64033-22040-05iCV20,SV2#..GT,VE,VR,VX,ZE,ZT,ZX198608-198710

BEIGE,DARK BEIGE,TRIM4#

main86269-32010iSV21,VZV20..GT,PRO,VX,ZX198608-198710

W/DISC-PLAYER

main86269-32010iVZV20198710-198808

64261GARNISH, ROOM PARTITION

main64261-32010-02iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

MAROON,TRIM3#

sub64261-32010

main64261-32010-02iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

MAROON,MAROON,TRIM3#

sub64261-32010

main64261-32010-04iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-04iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub64261-32010

main64261-32010-05iSV2#..SED..(GT,VR,VX,ZE,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub64261-32010

main64261-32010-05iSV2#..SED..(GT,VR,VX,ZE,ZX)198710-198808

DARK BEIGE,TRIM4#

sub64261-32010

main64261-32020-02iSV2#..HT..(GT,VE,VR,VX)198608-198710

MAROON,MAROON,TRIM3#

main64261-32020-02iSV2#..HT..(GT,VE,VR,VX)198710-198808

MAROON,TRIM3#

main64261-32020-04iSV2#..HT..(GT,VE,VR,VX)198710-198808

DARK GRAY,TRIM8#

main64261-32020-04iSV2#..HT..(GT,VE,VR,VX)198608-198710

BLUE,DARK GRAY,TRIM8#

main64261-32020-05iSV2#..HT..(GT,VE,VR,VX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main64261-32020-05iSV2#..HT..(GT,VE,VR,VX)198710-198808

DARK BEIGE,TRIM4#

64271BOARD, ROOM PARTITION, NO.1

main64271-32030iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198808

64279PROTECTOR, ROOM PARTITION

main64279-32020-02iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

MAROON,MAROON,TRIM3#

main64279-32020-02iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

MAROON,TRIM3#

main64279-32020-04iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

DARK BLUE,TRIM8#

main64279-32020-04iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main64279-32020-05iSV2#..SED..(GT,VR,VX,ZE,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main64279-32020-05iSV2#..SED..(GT,VR,VX,ZE,ZX)198710-198808

DARK BEIGE,TRIM4#

main64279-32030-02iSV2#..HT..(GT,VE,VR,VX)198710-198808

MAROON,TRIM3#

sub64795-32010

main64279-32030-02iSV2#..HT..(GT,VE,VR,VX)198608-198710

MAROON,MAROON,TRIM3#

sub64795-32010

main64279-32030-04iSV2#..HT..(GT,VE,VR,VX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub64795-32010

main64279-32030-04iSV2#..HT..(GT,VE,VR,VX)198710-198808

DARK BLUE,TRIM8#

sub64795-32010

main64279-32030-05iSV2#..HT..(GT,VE,VR,VX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub64795-32010

main64279-32030-05iSV2#..HT..(GT,VE,VR,VX)198710-198808

DARK BEIGE,TRIM4#

sub64795-32010

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-32160-02iSV20..SED..(VL,XT)198608-198707

W/O SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32161

main64330-32160-02iCV20,SV2#..SED..(VE,ZT)198608-198707

SALOON,EXTRA,MAROON,MAROON,TRIM3#

sub64330-32161

main64330-32160-04iCV20,SV2#..SED..(VE,ZT)198608-198707

W/O SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32161

main64330-32160-04iCV20,SV2#..SED..(VE,ZT)198608-198707

SALOON,EXTRA,BLUE,DARK BLUE,TRIM8#

sub64330-32161

main64330-32160-05iCV20,SV2#..SED..(VE,ZT)198608-198707

W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

main64330-32160-05iSV20..SED..(VL,XT)198608-198707

SALOON,EXTRA,BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

main64330-32161-02iSV20..SED..VL198710-198808

sub64330-32161

main64330-32161-02iSV20..SED..VL198710-198808

sub64330-32161

main64330-32161-02iSV20..SED..VL198710-198808

MAROON,TRIM3#

sub64330-32161

main64330-32161-02iCV20,SV2#..SED..(VE,ZT)198707-198710

W/O SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32161

main64330-32161-02iCV20,SV2#..SED..(VE,ZT)198707-198710

SALOON,EXTRA,ETOILE,MAROON,MAROON,TRIM3#

sub64330-32161

main64330-32161-04iSV20..SED..VL198710-198808

sub64330-32161

main64330-32161-04iCV20,SV2#..SED..(VE,ZT)198707-198710

W/O SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-04iCV20,SV2#..SED..(VE,ZT)198707-198710

SALOON,EXTRA,BLUE,DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-04iSV20..SED..(VE,ZT);CV20,SV21,25..SED..(VE,VL,XT,ZT)198710-198808

DARK BLUE,TRIM8#

sub64330-32161

main64330-32161-04iSV20..SED..(VE,ZT);CV20,SV21,25..SED..(VE,VL,XT,ZT)198710-198808

sub64330-32161

main64330-32161-05iCV20,SV2#..SED..(VE,ZT)198707-198710

W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

main64330-32161-05iSV20..SED..(VL,XT)198707-198710

SALOON,EXTRA,BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

main64330-32161-05iSV20..SED..(VE,ZT);CV20,SV21,25..SED..(VE,VL,XT,ZT)198710-198808

sub64330-32161

main64330-32161-05iSV20..XT198710-198808

sub64330-32161

main64330-32161-05iSV20..SED..VL198710-198808

DARK BEIGE,TRIM4#

sub64330-32161

main64330-32190-02iSV20..SED..(LT,VC,VL,XT)198608-198708

W/O SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32191

main64330-32190-04iSV20..SED..(LT,VC,VL,XT)198608-198708

W/O SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32191

main64330-32190-05iSV20..SED..(LT,VC,VL,XT)198608-198707

W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32191

main64330-32191-02iSV20..SED..(LT,VC,VL,XT)198708-198710

W/O SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32161

sub64330-32191

main64330-32191-02iSV20..SED..(LT,VC,VL,XT)198710-198808

MAROON,TRIM3#

sub64330-32161

sub64330-32191

main64330-32191-04iSV20..SED..(LT,VC,VL,XT)198708-198710

W/O SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32161

sub64330-32191

main64330-32191-04iSV20..SED..(LT,VC,VL,XT)198710-198808

DARK BLUE,TRIM8#

sub64330-32161

sub64330-32191

main64330-32191-05iSV20..SED..(LT,VC,VL,XT)198707-198710

W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32161

sub64330-32191

main64330-32191-05iSV20..SED..(LT,VC,VL,XT)198710-198808

DARK BEIGE,TRIM4#

sub64330-32161

sub64330-32191

main64330-32210-02iCV20,SV2#..SED..(GT,VE,VR,ZE,ZT)198608-198707

W/SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32211

main64330-32210-04iCV20,SV2#..SED..(GT,VE,VR,ZE,ZT)198608-198707

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32211

main64330-32210-05iCV20,SV2#..SED..(GT,VE,VR,ZE,ZT)198608-198707

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32211

main64330-32211-02iSV2#..SED..(GT,VR,ZE)198710-198808

MAROON,TRIM3#

main64330-32211-02iSV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT)198710-198808

main64330-32211-02iCV20,SV2#..SED..(GT,VE,VR,ZE,ZT)198707-198710

W/SPEAKER,MAROON,MAROON,TRIM3#

main64330-32211-04iSV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT)198710-198808

DARK BLUE,TRIM8#

main64330-32211-04iCV20,SV2#..SED..(GT,VE,VR,ZE,ZT)198707-198710

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

main64330-32211-04iSV2#..SED..(GT,VR,ZE)198710-198808

main64330-32211-05iSV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT)198710-198808

DARK BEIGE,TRIM4#

main64330-32211-05iSV25..SED..(VL,XT);CV20,SV20,21..SED..(VE,ZT)198710-198808

main64330-32211-05iCV20,SV2#..SED..(GT,VE,VR,ZE,ZT)198707-198710

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

main64330-32220-02iSV21,VZV20..SED..(PRO,VX,ZX)198608-198707

W/SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32221

main64330-32220-04iSV21,VZV20..SED..(PRO,VX,ZX)198608-198708

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32221

main64330-32220-05iSV21..SED..(VX,ZX)198608-198707

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32221

main64330-32221-02iSV21,VZV20..SED..(PRO,VX,ZX)198707-198710

W/SPEAKER,MAROON,MAROON,TRIM3#

main64330-32221-02iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main64330-32221-04iSV21,VZV20..SED..(PRO,VX,ZX)198708-198710

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

main64330-32221-04iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main64330-32221-05iSV21..SED..(VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main64330-32221-05iSV21..SED..(VX,ZX)198707-198710

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

main64330-32270-02iSV2#..HT..(VE,VL)198710-198808

MAROON,TRIM3#

sub64330-32270

main64330-32270-02iSV2#..HT..(VE,VL)198608-198710

W/O SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32270

main64330-32270-04iSV2#..HT..(VE,VL)198608-198710

W/O SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32270

main64330-32270-04iSV2#..HT..(VE,VL)198710-198808

DARK BLUE,TRIM8#

sub64330-32270

main64330-32270-05iSV2#..HT..(VE,VL)198710-198808

DARK BEIGE,TRIM4#

sub64330-32270

main64330-32270-05iSV2#..HT..(VE,VL)198608-198710

W/O SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32270

main64330-32280-02iSV20,21..HT..(GT,VR,VX)198710-198808

MAROON,TRIM3#

sub64330-32280

main64330-32280-02iSV20,21..HT..(GT,VR,VX)198710-198808

sub64330-32280

main64330-32280-02iSV2#..HT..(GT,VE,VR,VX)198608-198710

W/SPEAKER,MAROON,MAROON,TRIM3#

sub64330-32280

main64330-32280-04iSV20,21..HT..(GT,VR,VX)198710-198808

sub64330-32280

main64330-32280-04iSV2#..HT..(GT,VE,VR,VX)198608-198710

W/SPEAKER,BLUE,DARK BLUE,TRIM8#

sub64330-32280

main64330-32280-04iSV25..HT..VR198710-198808

DARK BLUE,TRIM8#

sub64330-32280

main64330-32280-05iSV25..HT..VR198710-198808

DARK BEIGE,TRIM4#

sub64330-32280

main64330-32280-05iSV25..HT..VR198710-198808

sub64330-32280

main64330-32280-05iSV2#..HT..(GT,VE,VR,VX)198608-198710

W/SPEAKER,BEIGE,DARK BEIGE,TRIM4#

sub64330-32280

64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)

main90467-08046-05iCV20,SV20,21;SV25..SED..VR;SV25..VL,XT,ZE198710-198808

DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub90467-08046

sub90467-08037

main90467-08046-05iSV20..SED..VL198710-198710

sub90467-08046

sub90467-08037

main90467-08046-12iSV25..SED..VR;SV25..VL,XT,ZE;CV20,SV20,21,VZV20198710-198807

MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-12iSV20..SED..VL198710-198710

sub90467-08046

sub90467-08037

main90467-08046-12iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

sub90467-08046

sub90467-08037

main90467-08046-24iSV20..SED..VL198710-198710

sub90467-08046

sub90467-08037

main90467-08046-24iSV25..HT..VR198710-198807

DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

main90467-08046-24iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

sub90467-08046

sub90467-08037

64347RETAINER, PACKAGE TRAY TRIM EDGE SIDE

main64347-32010iSV20..HT..VL198710-198808

main64347-32010iSV2#..HT..(GT,VE,VR,VX)198608-198710

W/SPEAKER

main64347-32010iSV2#..HT..(GT,VE,VR,VX)198608-198710

W/O SPEAKER

main64347-32010iSV20..HT..VL198708-198710

ETOILE,W/O SPEAKER

64347BBRACKET, PACKAGE TRAY REINFORCEMENT, RH

main64347-32020iSV20..SED..VL198710-198710

main64347-32020iCV20,SV2#,VZV20..SED198608-198808

64348BBRACKET, PACKAGE TRAY REINFORCEMENT, LH

main64348-32010iCV20,SV2#,VZV20..SED198608-198808

sub64348-32020

main64348-32010iSV20..SED..VL198710-198710

sub64348-32020

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64711-32030-03iCV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32030-03iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198710

GRAY,LIGHT GRAY

main64711-32040-03iSV20,21,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32040-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

GRAY,LIGHT GRAY

main64711-32050-03iSV20..HT..VL198608-198710

GRAY,LIGHT GRAY

sub64711-32060

main64711-32050-03iSV20..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

sub64711-32060

main64711-32060-03iSV2#..HT..VE198608-198710

GRAY,LIGHT GRAY

main64711-32060-03iSV20,21..HT..VE198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32070-03iSV20,21..HT..(GT,VR,VX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32070-03iSV2#..HT..(GT,VR,VX)198608-198710

GRAY,LIGHT GRAY

main64711-32080-03iSV25..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32090-03iSV25..HT..VR198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32100-03iSV25..SED..(VL,XT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64711-32110-03iSV25..SED..(VR,ZE)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-32030-03iSV20..SED..VL198710-198710

main64714-32030-03iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198710

GRAY,LIGHT GRAY

main64714-32030-03iCV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64714-32040-03iSV20,21,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64714-32040-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

GRAY,LIGHT GRAY

main64714-32060-03iSV25..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64714-32080-03iSV20..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

sub64714-32090

main64714-32080-03iSV20..HT..VL198608-198710

GRAY,LIGHT GRAY

sub64714-32090

main64714-32090-03iSV20,21..HT..(GT,VE,VR,VX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64714-32090-03iSV2#..HT..(GT,VE,VR,VX)198608-198710

GRAY,LIGHT GRAY

main64714-32100-03iSV25..HT..VR198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64714-32110-03iSV25..SED..(VL,XT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64714-32120-03iSV25..SED..(VR,ZE)198710-198808

GRAY(TRIM3,4,8),GRAY

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-32040-03iCV20,SV2#..SED..(VE,ZT)198608-198710

SALOON,EXTRA,ETOILE,GRAY,LIGHT GRAY

sub64716-32050

main64716-32040-03iCV20..VL,XT198608-198710

GRAY,LIGHT GRAY

sub64716-32050

main64716-32040-03iSV20..SED..(VE,ZT);CV20,SV21..SED..(VE,VL,XT,ZT)198710-198808

sub64716-32050

main64716-32040-03iSV20..SED..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

sub64716-32050

main64716-32040-03iSV20..SED..VL198710-198710

sub64716-32050

main64716-32050-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

GRAY,LIGHT GRAY

main64716-32050-03iSV20,21,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64716-32080-03iSV20..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

sub64716-32090

main64716-32080-03iSV20..HT..VL198608-198710

GRAY,LIGHT GRAY

sub64716-32090

main64716-32090-03iSV2#..HT..(GT,VE,VR,VX)198608-198710

GRAY,LIGHT GRAY

main64716-32090-03iSV20,21..HT..(GT,VE,VR,VX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64716-32100-03iSV25..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

sub64716-32110

main64716-32110-03iSV25..HT..VR198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64716-32120-03iSV25..SED..(VL,XT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64716-32130-03iSV25..SED..(VR,ZE)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

64716BCOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-32010iSV20..SED..(LT,VC,VL,XT)198608-198808

main64749-32020-03iSV2#..HT198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64749-32020-03iSV2#..HT198608-198710

GRAY,LIGHT GRAY

64716CCLIP(FOR LUGGAGE COMPARTMENT TRIM REAR COVER)

main90467-05004-33iCV20,SV21,25,VZV20..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

GRAY,TRIM3#,4#,8#

sub90467-05004

main90467-05004-33iSV2#..HT198608-198710

GRAY,GRAY

sub90467-05004

main90467-05004-33iSV2#..HT198608-198710

GRAY

sub90467-05004

main90467-05004-33iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE,GRAY,GRAY

sub90467-05004

main90467-05004-33iSV20..SED..VL198710-198710

sub90467-05004

main90467-05004-33iSV2#..HT198710-198808

sub90467-05004

64717ACOVER, LUGGAGE COMPARTMENT TRIM, FRONT

main64717-32030-03iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198710

GRAY,LIGHT GRAY

main64717-32030-03iSV20..HT..VL;CV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64717-32030-03iSV20..SED..VL198710-198710

main64717-32040-03iSV25..VL,XT198710-198808

LIGHT GRAY,TRIM3#,4#,8#

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64721-32030-03iCV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32030-03iCV20,SV2#..SED..(LT,VC,VE,VL,XT,ZT)198608-198710

GRAY,LIGHT GRAY

main64721-32030-03iSV20..SED..VL198710-198710

main64721-32040-03iSV25..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32050-03iSV2#..SED..(GT,VR,ZE)198608-198710

GRAY,LIGHT GRAY

main64721-32050-03iSV20,21..SED..(GT,VR,ZE)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32060-03iSV20..HT..VL198608-198704

GRAY,LIGHT GRAY

main64721-32061-03iSV20..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32061-03iSV20..HT..VL198704-198710

GRAY,LIGHT GRAY

main64721-32070-03iSV2#..HT..(GT,VE,VR,VX)198608-198704

GRAY,LIGHT GRAY

main64721-32071-03iSV20,21..HT..(GT,VE,VR,VX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32071-03iSV2#..HT..(GT,VE,VR,VX)198704-198710

GRAY,LIGHT GRAY

main64721-32080-03iSV25..HT..VR198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32090-03iSV25..SED..(VL,XT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32100-03iSV25..SED..(VR,ZE)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64721-32110-03iSV21,VZV20..PRO,VE,ZX198708-198710

GRAY,LIGHT GRAY

main64721-32110-03iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1

main90467-07042-03iSV20,25..HT..VL198710-198807

GRAY,TRIM3#,4#,8#

sub90467-07042

sub90467-06175

main90467-07042-03iCV20,SV2#,VZV20..SED198608-198710

GRAY,GRAY

sub90467-07042

sub90467-06175

main90467-07042-03iSV20..SED..VL198710-198710

sub90467-07042

sub90467-06175

64722COVER, LUGGAGE COMPARTMENT TRIM, INNER LH

main64722-32030-03iSV2#..SED..(GT,VR,ZE)198608-198710

GRAY,LIGHT GRAY

main64722-32030-03iCV20,SV20,21..SED..(LT,VC,VE,VL,XT,ZT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32030-03iSV20..SED..VL198710-198710

main64722-32040-03iSV25..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32050-03iSV2#,VZV20..SED..(GT,PRO,VR,VX,ZE,ZX)198608-198710

GRAY,LIGHT GRAY

main64722-32050-03iSV20,21..SED..(GT,VR,ZE)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32060-03iSV20..HT..VL198608-198710

GRAY,LIGHT GRAY

main64722-32060-03iSV20..HT..VL198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32070-03iSV20,21..HT..(GT,VE,VR,VX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32070-03iSV2#..HT..(GT,VE,VR,VX)198608-198710

GRAY,LIGHT GRAY

main64722-32080-03iSV25..HT..VR198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32090-03iSV25..SED..(VL,XT)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32100-03iSV25..SED..(VR,ZE)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

main64722-32110-03iSV21,VZV20..PRO,VE,ZX198708-198710

GRAY,LIGHT GRAY

main64722-32110-03iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

LIGHT GRAY,TRIM3#,4#,8#

64770COVER ASSY, SPARE WHEEL

main64770-32050iSV25198710-198808

main64771-32040iCV20,SV20,21,VZV20198608-198808

64777CLAMP, SPARE WHEEL COVER

main64777-32020iCV20,SV2#198608-198612

sub64777-32030

main64777-32030iCV20,SV2#,VZV20198612-198808

64778BPROTECTOR, SPARE WHEEL

main64778-14020iCV20,SV2#,VZV20198608-198808

64791COVER, BACK DOOR TRIM

main64791-32020-03iCV20,SV2#,VZV20..SED198708-198710

GRAY,GRAY

main64791-32020-03iCV20,SV2#,VZV20..SED198710-198808

GRAY,TRIM3#,4#,8#

main64791-32030-03iSV2#..HT198708-198710

GRAY,GRAY

main64791-32030-03iSV2#..HT198710-198808

GRAY,TRIM3#,4#,8#

64791ACLIP(FOR BACK DOOR TRIM)

main90467-08056-23iSV2#..HT198708-198710

GRAY,GRAY

sub90467-08056

main90467-08056-23iSV2#..HT198710-198808

GRAY,TRIM3#,4#,8#

sub90467-08056

7102

9015960057

main90159-60057

9018304046

main90183-04046

9046709066

main90467-09066

9046805017

main90468-05017

9054109010

main90541-09010

9354014016

main93540-14016

35 parts on this diagram · 4 diagrams in section
