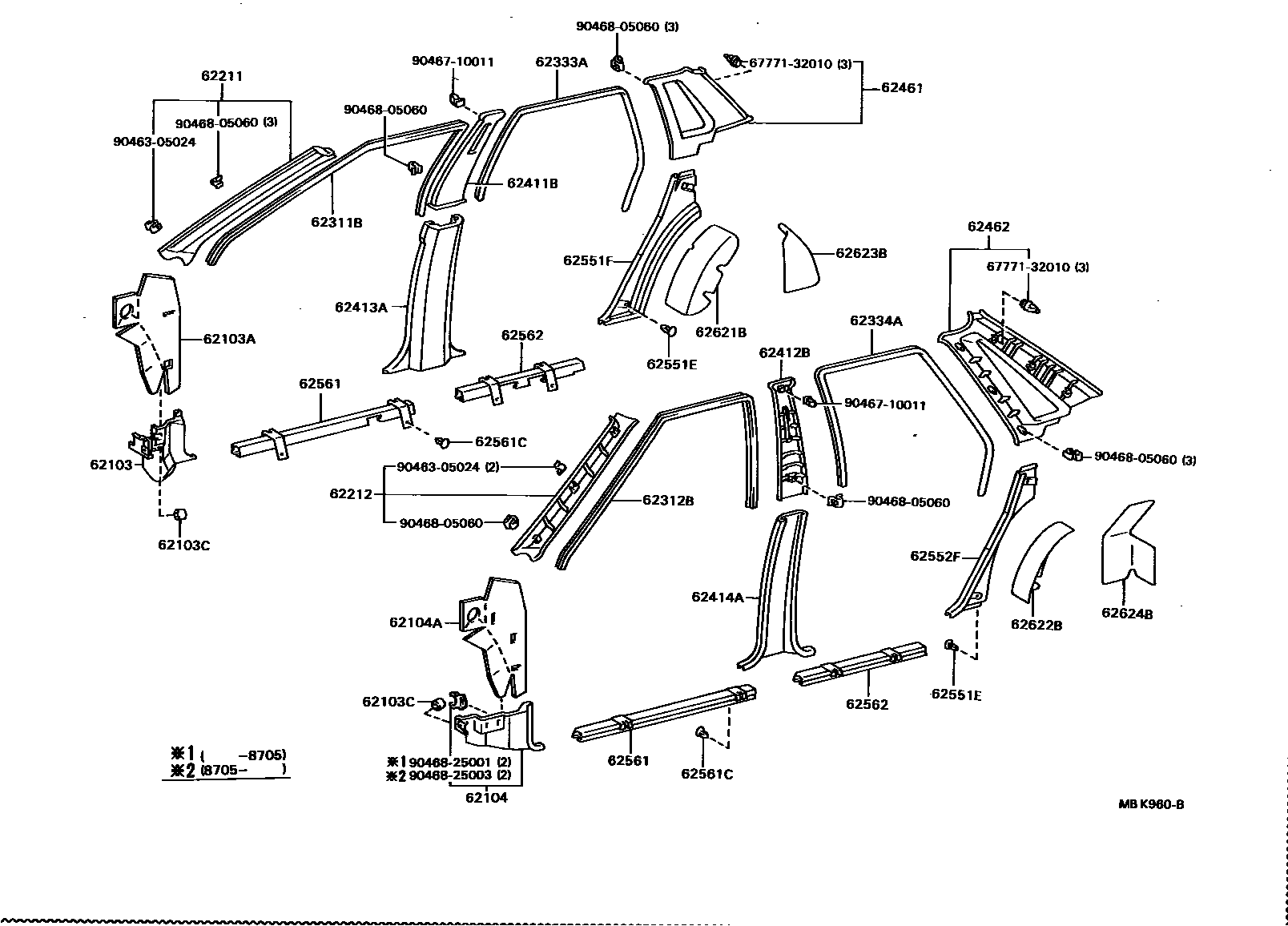

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-32030-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

main62101-32030-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

main62101-32030-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

main62101-32030-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

main62101-32030-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

main62101-32030-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-32030iCV20,SV2#,VZV20198608-198808

62103CCLIP, COWL SIDE TRIM BOARD SET

main90467-06074iCV20,SV2#,VZV20198608-198808

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-32060-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

main62102-32060-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

main62102-32060-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

main62102-32060-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

main62102-32060-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

main62102-32060-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-32030iCV20,SV2#,VZV20198608-198808

62211GARNISH, FRONT PILLAR, RH

main62210-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

main62210-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main62210-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main62210-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

main62210-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

main62210-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62210-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62210-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62210-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62210-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62210-32060-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62210-32060-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62210-32080-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62210-32080-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62210-32080-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62210-32080-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62210-32080-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62210-32080-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62220-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main62220-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

main62220-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main62220-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

main62220-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

main62220-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62220-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62220-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62220-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62220-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62220-32060-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62220-32060-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62220-32080-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62220-32080-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62220-32080-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62220-32080-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62220-32080-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main62220-32080-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

sub62311-32050

main62311-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

sub62311-32050

main62311-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub62311-32050

main62311-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub62311-32050

main62311-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62311-32050

main62311-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub62311-32050

main62311-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62311-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62311-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62311-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62311-32060-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62311-32060-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

sub62312-32050

main62312-32050-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

sub62312-32050

main62312-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub62312-32050

main62312-32050-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub62312-32050

main62312-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62312-32050

main62312-32050-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub62312-32050

main62312-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62312-32060-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62312-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62312-32060-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62312-32060-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62312-32060-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

62333ATRIM, REAR DOOR OPENING, RH

main62333-32030-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

sub62333-32030

main62333-32030-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

sub62333-32030

main62333-32030-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub62333-32030

main62333-32030-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub62333-32030

main62333-32030-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub62333-32030

main62333-32030-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62333-32030

main62333-32040-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62333-32040-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62333-32040-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62333-32040-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62333-32040-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62333-32040-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62333-32050-02iSV2#..HT..(VE,VL,VR)198710-198808

MAROON,TRIM3#

sub62313-32010

main62333-32050-02iSV2#..HT..(VE,VL,VR)198608-198710

MAROON,MAROON,TRIM3#

sub62313-32010

main62333-32050-04iSV2#..HT..(VE,VL,VR)198608-198710

BLUE,DARK BLUE,TRIM8#

sub62313-32010

main62333-32050-04iSV2#..HT..(VE,VL,VR)198710-198808

DARK BLUE,TRIM8#

sub62313-32010

main62333-32050-05iSV2#..HT..(VE,VL,VR)198710-198808

DARK BEIGE,TRIM4#

sub62313-32010

main62333-32050-05iSV2#..HT..(VE,VL,VR)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62313-32010

main62333-32060-02iSV21..HT..(GT,VX)198710-198808

MAROON,TRIM3#

main62333-32060-02iSV21..HT..(GT,VX)198608-198710

MAROON,MAROON,TRIM3#

main62333-32060-04iSV21..HT..(GT,VX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62333-32060-04iSV21..HT..(GT,VX)198710-198808

DARK BLUE,TRIM8#

main62333-32060-05iSV21..HT..(GT,VX)198710-198808

DARK BEIGE,TRIM4#

main62333-32060-05iSV21..HT..(GT,VX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

62334ATRIM, REAR DOOR OPENING, LH

main62333-32050-02iSV2#..HT..(VE,VL,VR)198710-198808

MAROON,TRIM3#

sub62313-32010

main62333-32050-02iSV2#..HT..(VE,VL,VR)198608-198710

MAROON,MAROON,TRIM3#

sub62313-32010

main62333-32050-04iSV2#..HT..(VE,VL,VR)198608-198710

BLUE,DARK BLUE,TRIM8#

sub62313-32010

main62333-32050-04iSV2#..HT..(VE,VL,VR)198710-198808

DARK BLUE,TRIM8#

sub62313-32010

main62333-32050-05iSV2#..HT..(VE,VL,VR)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62313-32010

main62333-32050-05iSV2#..HT..(VE,VL,VR)198710-198808

DARK BEIGE,TRIM4#

sub62313-32010

main62333-32060-02iSV21..HT..(GT,VX)198710-198808

MAROON,TRIM3#

main62333-32060-02iSV21..HT..(GT,VX)198608-198710

MAROON,MAROON,TRIM3#

main62333-32060-04iSV21..HT..(GT,VX)198710-198808

DARK BLUE,TRIM8#

main62333-32060-04iSV21..HT..(GT,VX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62333-32060-05iSV21..HT..(GT,VX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62333-32060-05iSV21..HT..(GT,VX)198710-198808

DARK BEIGE,TRIM4#

main62334-32010-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

sub62334-32010

main62334-32010-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

sub62334-32010

main62334-32010-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub62334-32010

main62334-32010-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub62334-32010

main62334-32010-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub62334-32010

main62334-32010-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62334-32010

main62334-32020-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62334-32020-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62334-32020-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62334-32020-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62334-32020-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62334-32020-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-32130-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main62411-32130-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

main62411-32130-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

main62411-32130-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main62411-32130-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62411-32130-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

main62411-32140-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62411-32140-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62411-32140-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62411-32140-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62411-32140-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62411-32140-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62411-32160-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62411-32160-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62411-32160-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62411-32160-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62411-32160-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main62411-32160-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-32130-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

main62412-32130-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main62412-32130-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main62412-32130-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

main62412-32130-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62412-32130-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

main62412-32140-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62412-32140-02iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62412-32140-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62412-32140-04iSV21,VZV20..SED..(GT,PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62412-32140-05iSV21..SED..(GT,VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62412-32140-05iSV21..SED..(GT,VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62412-32160-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62412-32160-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62412-32160-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62412-32160-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62412-32160-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62412-32160-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-32020-02iCV20,SV2#,VZV20..SED198608-198710

MAROON,MAROON,TRIM3#

sub62413-32020

main62413-32020-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub62413-32020

main62413-32020-04iCV20,SV2#,VZV20..SED198710-198808

DARK BLUE,TRIM8#

sub62413-32020

main62413-32020-04iCV20,SV2#,VZV20..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub62413-32020

main62413-32020-05iCV20,SV2#..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62413-32020

main62413-32020-05iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub62413-32020

main62413-32040-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62413-32040-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62413-32040-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62413-32040-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62413-32040-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main62413-32040-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-32020-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub62414-32020

main62414-32020-02iCV20,SV2#,VZV20..SED198608-198710

MAROON,MAROON,TRIM3#

sub62414-32020

main62414-32020-04iCV20,SV2#,VZV20..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub62414-32020

main62414-32020-04iCV20,SV2#,VZV20..SED198710-198808

DARK BLUE,TRIM8#

sub62414-32020

main62414-32020-05iCV20,SV2#..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62414-32020

main62414-32020-05iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub62414-32020

main62414-32040-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62414-32040-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62414-32040-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62414-32040-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62414-32040-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62414-32040-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

62461GARNISH, ROOF SIDE TRIM, RH

main62470-32140-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main62470-32140-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

main62470-32140-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

main62470-32140-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main62470-32140-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

main62470-32140-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62470-32150-02iSV21..SED..GT198608-198710

MAROON,MAROON,TRIM3#

main62470-32150-02iSV21..SED..GT198710-198808

MAROON,TRIM3#

main62470-32150-04iSV21..SED..GT198608-198710

BLUE,DARK BLUE,TRIM8#

main62470-32150-04iSV21..SED..GT198710-198808

DARK BLUE,TRIM8#

main62470-32150-05iSV21..SED..GT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62470-32150-05iSV21..SED..GT198710-198808

DARK BEIGE,TRIM4#

main62470-32170-02iSV21,VZV20..SED..(PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62470-32170-02iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62470-32170-04iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62470-32170-04iSV21,VZV20..SED..(PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62470-32170-05iSV21..SED..(VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62470-32170-05iSV21..SED..(VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62470-32180-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62470-32180-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62470-32180-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62470-32180-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62470-32180-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62470-32180-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

62462GARNISH, ROOF SIDE TRIM, LH

main62480-32140-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

main62480-32140-02iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

main62480-32140-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main62480-32140-04iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

main62480-32140-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62480-32140-05iCV20,SV2#..SED..(LT,VC,VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

main62480-32150-02iSV21..SED..GT198608-198710

MAROON,MAROON,TRIM3#

main62480-32150-02iSV21..SED..GT198710-198808

MAROON,TRIM3#

main62480-32150-04iSV21..SED..GT198608-198710

BLUE,DARK BLUE,TRIM8#

main62480-32150-04iSV21..SED..GT198710-198808

DARK BLUE,TRIM8#

main62480-32150-05iSV21..SED..GT198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62480-32150-05iSV21..SED..GT198710-198808

DARK BEIGE,TRIM4#

main62480-32170-02iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

MAROON,TRIM3#

main62480-32170-02iSV21,VZV20..SED..(PRO,VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

main62480-32170-04iSV21,VZV20..SED..(PRO,VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main62480-32170-04iSV21,VZV20..SED..(PRO,VX,ZX)198710-198808

DARK BLUE,TRIM8#

main62480-32170-05iSV21..SED..(VX,ZX)198710-198808

DARK BEIGE,TRIM4#

main62480-32170-05iSV21..SED..(VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main62480-32180-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

main62480-32180-02iSV2#..HT198710-198808

MAROON,TRIM3#

main62480-32180-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

main62480-32180-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

main62480-32180-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

main62480-32180-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

62551ECLIP(FOR REAR SEAT SIDE GARNISH)

main90467-06018-01iCV20,SV2#,VZV20198710-198808

BLACK,TRIM3#,4#,8#

sub90467-06018

main90467-06018-01iCV20,SV2#,VZV20198608-198710

BLACK,BLACK

sub90467-06018

62551FGARNISH, REAR SEAT SIDE, RH

main62551-32020-02iCV20,SV2#,VZV20..SED198608-198710

MAROON,MAROON,TRIM3#

sub62551-32020

main62551-32020-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub62551-32020

main62551-32020-04iCV20,SV2#,VZV20..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub62551-32020

main62551-32020-04iCV20,SV2#,VZV20..SED198710-198808

DARK BLUE,TRIM8#

sub62551-32020

main62551-32020-05iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub62551-32020

main62551-32020-05iCV20,SV2#..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62551-32020

main62551-32030-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

sub62551-32030

main62551-32030-02iSV2#..HT198710-198808

MAROON,TRIM3#

sub62551-32030

main62551-32030-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

sub62551-32030

main62551-32030-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

sub62551-32030

main62551-32030-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

sub62551-32030

main62551-32030-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62551-32030

62552FGARNISH, REAR SEAT SIDE, LH

main62552-32020-02iCV20,SV2#,VZV20..SED198710-198808

MAROON,TRIM3#

sub62552-32020

main62552-32020-02iCV20,SV2#,VZV20..SED198608-198710

MAROON,MAROON,TRIM3#

sub62552-32020

main62552-32020-04iCV20,SV2#,VZV20..SED198608-198710

BLUE,DARK BLUE,TRIM8#

sub62552-32020

main62552-32020-04iCV20,SV2#,VZV20..SED198710-198808

DARK BLUE,TRIM8#

sub62552-32020

main62552-32020-05iCV20,SV2#..SED198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62552-32020

main62552-32020-05iCV20,SV2#..SED198710-198808

DARK BEIGE,TRIM4#

sub62552-32020

main62552-32030-02iSV2#..HT198608-198710

MAROON,MAROON,TRIM3#

sub62552-32030

main62552-32030-02iSV2#..HT198710-198808

MAROON,TRIM3#

sub62552-32030

main62552-32030-04iSV2#..HT198710-198808

DARK BLUE,TRIM8#

sub62552-32030

main62552-32030-04iSV2#..HT198608-198710

BLUE,DARK BLUE,TRIM8#

sub62552-32030

main62552-32030-05iSV2#..HT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub62552-32030

main62552-32030-05iSV2#..HT198710-198808

DARK BEIGE,TRIM4#

sub62552-32030

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-32020iCV20,SV2#,VZV20198608-198710

RH

main62561-32020iCV20,SV2#,VZV20198710-198808

main62562-32020iCV20,SV2#,VZV20198608-198710

LH

main62562-32020iCV20,SV2#,VZV20198710-198808

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-11021-01iCV20,SV2#,VZV20198608-198710

BLACK,BLACK

sub90467-11068

main90467-11021-01iCV20,SV2#,VZV20198710-198808

BLACK,TRIM3#,4#,8#

sub90467-11068

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-32020iCV20,SV2#,VZV20198710-198808

main62563-32020iCV20,SV2#,VZV20198608-198710

RH

main62564-32020iCV20,SV2#,VZV20198608-198710

LH

main62564-32020iCV20,SV2#,VZV20198710-198808

62621BPAD, QUARTER WHEEL HOUSE, INNER FRONT RH

main67812-12010iCV20,SV2#,VZV20198608-198808

62622BPAD, QUARTER WHEEL HOUSE, INNER FRONT LH

main67812-12010iCV20,SV2#,VZV20198608-198808

62623BPAD, QUARTER WHEEL HOUSE, INNER REAR RH

main62623-32010iCV20,SV2#,VZV20198608-198808

62624BPAD, QUARTER WHEEL HOUSE, INNER REAR LH

main62624-20030iSV25198710-198808

main62624-32010iCV20,SV2#,VZV20198608-198808

6777132010WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-32010

9046305024

main90463-05024

9046710011

main90467-10011

9046805060

main90468-05060

9046825001

main90468-25001

9046825003

main90468-25003

33 parts on this diagram · 2 diagrams in section
