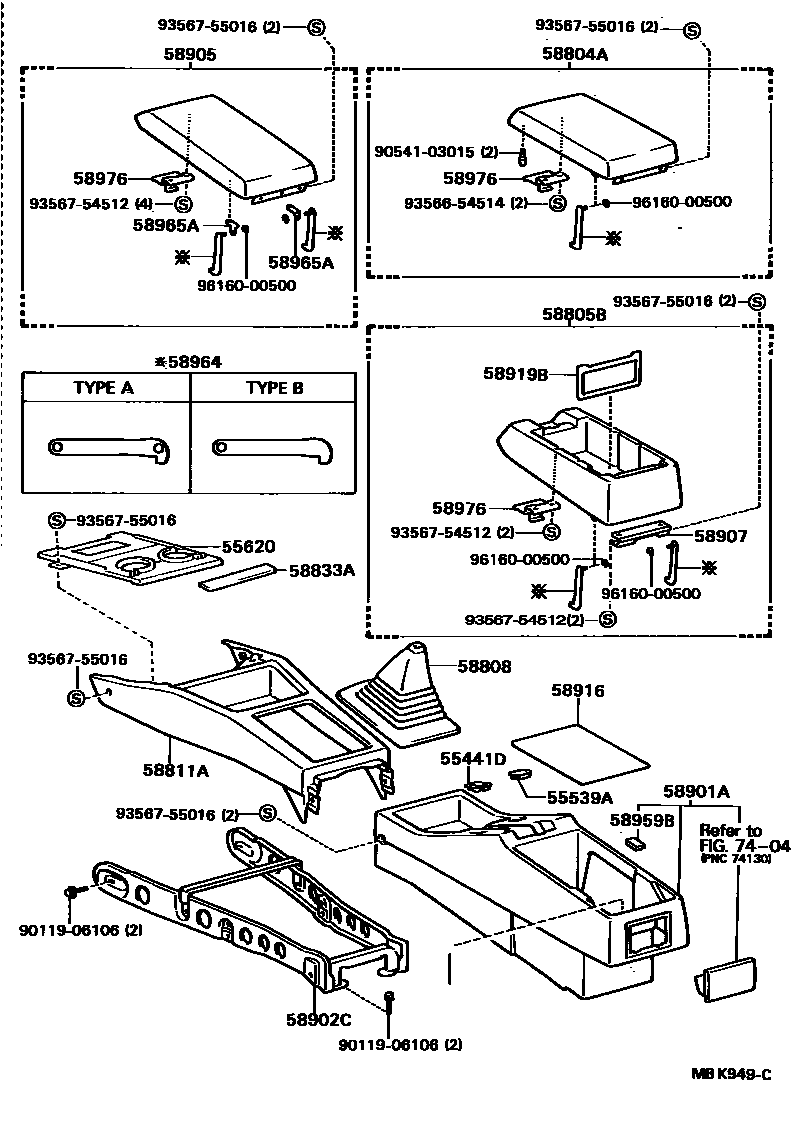

CONSOLE BOX & BRACKET

0001 1 0002 1

55441DBOX, INSTRUMENT PANEL COIN

main55539-20020-05iCV20,SV2#198710-198808

BEIGE,TRIM4#

sub55539-20020

main55539-20020-05iCV20,SV2#198608-198710

BEIGE,BEIGE,TRIM4#

sub55539-20020

main55539-20020-22iCV20,SV2#,VZV20198710-198807

MAROON,TRIM3#

sub55539-20020

main55539-20020-22iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

sub55539-20020

main55539-20020-34iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

sub55539-20020

main55539-20020-34iCV20,SV2#,VZV20198710-198807

DARK BLUE,TRIM8#

sub55539-20020

55539ACOVER, SPARE SWITCH HOLE

main55539-20030-05iCV20,SV2#198608-198708

BEIGE,DARK BEIGE,TRIM4#

sub55539-32010

sub55539-20030

main55539-20030-05iSV21..5F;CV20,SV20,25198710-198808

DARK BEIGE,TRIM4#

sub55539-32010

sub55539-20030

main55539-20030-12iCV20,SV2#,VZV20198608-198708

MAROON,MAROON,TRIM3#

sub55539-32010

sub55539-20030

main55539-20030-12iCV20,SV20,25;SV21,VZV20..5F198710-198808

MAROON,TRIM3#

sub55539-32010

sub55539-20030

main55539-20030-14iCV20,SV2#,VZV20198608-198708

BLUE,DARK BLUE,TRIM8#

sub55539-32010

sub55539-20030

main55539-20030-14iCV20,SV20,25;SV21,VZV20..5F198710-198808

DARK BLUE,TRIM8#

sub55539-32010

sub55539-20030

55620HOLDER ASSY, INSTRUMENT PANEL CUP

main55620-32010iCV20,SV2#,VZV20..GT,PRO,VE,VR,VX,ZE,ZT,ZX198608-198808

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-32030-02iSV2#,VZV20..5F..(PRO,VR,VX,ZE,ZX)198608-198710

MAROON,MAROON,TRIM3#

sub58804-32030

main58804-32030-02iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198710-198808

MAROON,TRIM3#

sub58804-32030

main58804-32030-04iSV21..GT198608-198710

BLUE,DARK BLUE,TRIM8#

sub58804-32030

main58804-32030-04iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198710-198808

DARK BLUE,TRIM8#

sub58804-32030

main58804-32030-05iSV2#..5F..(VR,VX,ZE,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58804-32030

main58804-32030-05iSV21..4FC..GT;SV2#..5F..(GT,VR,VX,ZE,ZX)198710-198808

DARK BEIGE,TRIM4#

sub58804-32030

main58804-32040-02iCV20,SV20,21..4FC..(VE,VL,VR,XT,ZE,ZT)198710-198808

MAROON,TRIM3#

sub58804-32051

sub58804-32050

main58804-32040-02iCV20,SV2#..4FC..(VE,VL,VR,XT,ZE,ZT)198608-198710

MAROON,MAROON,TRIM3#

sub58804-32051

sub58804-32050

main58804-32040-04iCV20,SV2#..4FC..(VE,VL,VR,XT,ZE,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

sub58804-32051

sub58804-32050

main58804-32040-04iCV20,SV20,21..4FC..(VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BLUE,TRIM8#

sub58804-32051

sub58804-32050

main58804-32040-05iCV20,SV2#..4FC..(VE,VL,VR,XT,ZE,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58804-32051

sub58804-32050

main58804-32040-05iCV20,SV20,21..4FC..(VE,VL,VR,XT,ZE,ZT)198710-198808

DARK BEIGE,TRIM4#

sub58804-32051

sub58804-32050

main58804-32050-02iSV21..4FC..(VX,ZX)198608-198710

MAROON,MAROON,TRIM3#

sub58804-32051

main58804-32050-02iSV21..4FC..(VX,ZX)198710-198808

MAROON,TRIM3#

sub58804-32051

main58804-32050-04iSV21..4FC..(VX,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub58804-32051

main58804-32050-04iSV21..4FC..(VX,ZX)198710-198808

DARK BLUE,TRIM8#

sub58804-32051

main58804-32050-05iSV21..4FC..(VX,ZX)198710-198808

DARK BEIGE,TRIM4#

sub58804-32051

main58804-32050-05iSV21..4FC..(VX,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58804-32051

main58804-32060-02iVZV20..4FC198710-198808

MAROON,TRIM3#

sub58804-32061

main58804-32060-02iVZV20..4FC198704-198710

MAROON,MAROON,TRIM3#

sub58804-32061

main58804-32060-04iVZV20..4FC198704-198710

BLUE,DARK BLUE,TRIM8#

sub58804-32061

main58804-32060-04iVZV20..4FC198710-198808

DARK BLUE,TRIM8#

sub58804-32061

58805BPANEL SUB-ASSY, CONSOLE, LOWER

main58805-32020-02iSV21..GT198608-198710

MAROON,MAROON,TRIM3#

sub58805-32021

sub58964-30030

main58805-32020-02iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198710-198808

MAROON,TRIM3#

sub58805-32021

sub58964-30030

main58805-32020-04iSV21..GT198608-198710

BLUE,DARK BLUE,TRIM8#

sub58805-32021

sub58964-30030

main58805-32020-04iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198710-198808

DARK BLUE,TRIM8#

sub58805-32021

sub58964-30030

main58805-32020-05iSV2#..5F..(VR,VX,ZE,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58805-32021

sub58964-30030

main58805-32020-05iSV21..4FC..GT;SV2#..5F..(GT,VR,VX,ZE,ZX)198710-198808

DARK BEIGE,TRIM4#

sub58805-32021

sub58964-30030

main58805-32030-02iCV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

MAROON,TRIM3#

sub58805-32031

main58805-32030-02iCV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

MAROON,MAROON,TRIM3#

sub58805-32031

main58805-32030-04iCV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

sub58805-32031

main58805-32030-04iCV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

DARK BLUE,TRIM8#

sub58805-32031

main58805-32030-05iCV20,SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

DARK BEIGE,TRIM4#

sub58805-32031

main58805-32030-05iCV20,SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58805-32031

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-32020-02iCV20,SV2#,VZV20..5F198710-198808

MAROON,TRIM3#

sub58808-32020

main58808-32020-02iCV20,SV2#,VZV20..5F198608-198710

MAROON,MAROON,TRIM3#

sub58808-32020

main58808-32020-04iCV20,SV2#,VZV20..5F198710-198808

DARK BLUE,TRIM8#

sub58808-32020

main58808-32020-04iCV20,SV2#,VZV20..5F198608-198710

BLUE,DARK BLUE,TRIM8#

sub58808-32020

main58808-32020-05iCV20,SV2#..5F198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58808-32020

main58808-32020-05iCV20,SV2#..5F198710-198808

DARK BEIGE,TRIM4#

sub58808-32020

58811ABOX, CONSOLE, FRONT

main58811-32050-02iCV20,SV2#,VZV20198710-198808

MAROON,TRIM3#

main58811-32050-02iCV20,SV2#,VZV20198608-198710

MAROON,MAROON,TRIM3#

main58811-32050-04iCV20,SV2#,VZV20198608-198710

BLUE,DARK BLUE,TRIM8#

main58811-32050-04iCV20,SV2#,VZV20198710-198808

DARK BLUE,TRIM8#

main58811-32050-05iCV20,SV2#198608-198710

BEIGE,DARK BEIGE,TRIM4#

main58811-32050-05iCV20,SV2#198710-198808

DARK BEIGE,TRIM4#

58833ACOVER, CONSOLE, UPPER

main58833-32010iCV20,SV20..LT,VC,VL,XT198608-198808

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-32010-02iSV21..4FC..GT198608-198710

MAROON,MAROON,TRIM3#

sub58901-32011

sub55539-20030

main58901-32010-02iSV21..4FC..GT;CV20,SV20,21,VZV20..5F198710-198802

MAROON,TRIM3#

sub58901-32011

sub55539-20030

main58901-32010-04iSV21..4FC..GT198608-198710

BLUE,DARK BLUE,TRIM8#

sub58901-32011

sub55539-20030

main58901-32010-04iSV21..4FC..GT;CV20,SV20,21,VZV20..5F198710-198802

DARK BLUE,TRIM8#

sub58901-32011

sub55539-20030

main58901-32010-05iSV21..4FC..GT;CV20,SV20,21..5F198710-198802

DARK BEIGE,TRIM4#

sub58901-32011

sub55539-20030

main58901-32010-05iSV21..4FC..GT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub58901-32011

sub55539-20030

main58901-32011-02iSV21..4FC..GT;CV20,SV20,21,VZV20..5F198802-198808

MAROON,TRIM3#

sub58901-32011

main58901-32011-04iSV21..4FC..GT;CV20,SV20,21,VZV20..5F198802-198808

DARK BLUE,TRIM8#

sub58901-32011

main58901-32011-05iSV21..4FC..GT;CV20,SV20,21..5F198802-198808

DARK GRAY,TRIM4#

sub58901-32011

main58901-32020-02iCV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

MAROON,TRIM3#

main58901-32020-02iCV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

MAROON,MAROON,TRIM3#

main58901-32020-04iCV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

BLUE,DARK BLUE,TRIM8#

main58901-32020-04iCV20,SV20,21,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

DARK BLUE,TRIM8#

main58901-32020-05iCV20,SV20,21..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198710-198808

DARK BEIGE,TRIM4#

main58901-32020-05iCV20,SV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main58901-32040-02iSV25198710-198802

NAROON,TRIM3#

sub58901-32041

sub55539-20030

main58901-32040-04iSV25198710-198802

DARK BLUE,TRIM8#

sub58901-32041

sub55539-20030

main58901-32040-05iSV25198710-198802

DARK BEIGE,TRIM4#

sub58901-32041

sub55539-20030

main58901-32041-02iSV25198802-198808

MAROON,TRIM3#

sub58901-32041

main58901-32041-04iSV25198802-198808

DARK BLUE,TRIM8#

sub58901-32041

main58901-32041-05iSV25198802-198808

DARK GRAY,TRIM4#

sub58901-32041

58902CBRACKET SUB-ASSY, CONSOLE BOX MOUNTING

main58902-32010iCV20,SV2#,VZV20198608-198808

sub58902-32011

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-32080-02iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198710-198808

MAROON,TRIM3#

main58905-32080-02iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

MAROON,MAROON,TRIM3#

main58905-32080-04iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198710-198808

DARK BLUE,TRIM8#

main58905-32080-04iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

BLUE,DARK BLUE,TRIM8#

main58905-32080-05iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

BEIGE,DARK BEIGE,TRIM4#

main58905-32080-05iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198710-198808

DARK BEIGE,TRIM4#

58907HINGE SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58907-89101iSV21..GT198608-198808

58916MAT, BOX BOTTOM

main58916-32040iCV20,SV2#,VZV20198608-198808

main58916-32070iSV25198710-198808

58919BPLATE, CONSOLE BOX

main58919-32010iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198608-198808

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-16010iSV21..4FC..GT;CV20,SV2#,VZV20..5F198802-198808

58964STOPPER, CONSOLE COMPARTMENT DOOR, NO.1

main58964-30030iCV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

LH

main58964-30030iCV20,SV2#,VZV20..4FC..(PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198710

TYPE A

main58964-30030iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198710-198808

main58964-30040iSV21..4FC..GT;SV2#,VZV20..5F..(GT,PRO,VR,VX,ZE,ZX)198711-198808

main58964-90K00iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

TYPE B

main58964-90K00iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

RH

main58964-90K00iSV21..4FC..GT;CV20,SV2#,VZV20..5F198710-198808

58965ASTOPPER, CONSOLE COMPARTMENT DOOR, NO.2

main58965-12010iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198710-198808

main58965-12010iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

RH

main58965-20020iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198710

LH

main58965-20020iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198710-198808

58976STRIKER, CONSOLE COMPARTMENT DOOR LOCK

main58976-22020iCV20,SV2#..5F..(LT,VC,VE,VL,XT,ZT)198608-198808

7404

9011906106

main90119-06106

9054103015

main90541-03015

9356654514

main93566-54514

9356754512

main93567-54512

9356755016

main93567-55016

9616000500

main96160-00500

25 parts on this diagram · 2 diagrams in section
