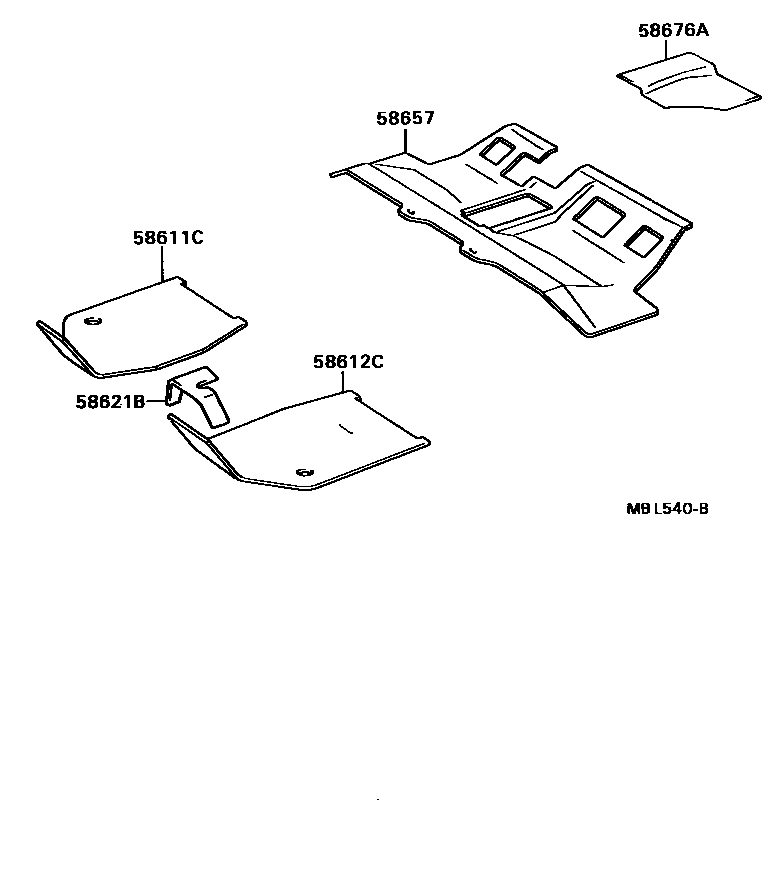

DASH SILENCER BOARD & FLOOR SILENCER PAD

58611CSHEET, FRONT FLOOR SILENCER, RH

main58611-32020iCV20,SV20,21,VZV20198608-198808

main58611-32040iSV25198710-198808

58612CSHEET, FRONT FLOOR SILENCER, LH

main58612-32020iCV20,SV2#,VZV20198608-198808

58621BPAD, FRONT FLOOR SILENCER

main58621-32020iCV20,SV20,21,VZV20..4FC198608-198808

58657PAD, UNDER REAR SEAT SILENCER

main58657-32020iSV25198710-198808

main58657-32030iCV20,SV2#,VZV20198608-198808

58676APAD, REAR FLOOR SILENCER

main58676-32010iSV21,VZV20..GT,PRO198710-198808

sub58676-20040

5 parts on this diagram · 1 diagram in section
