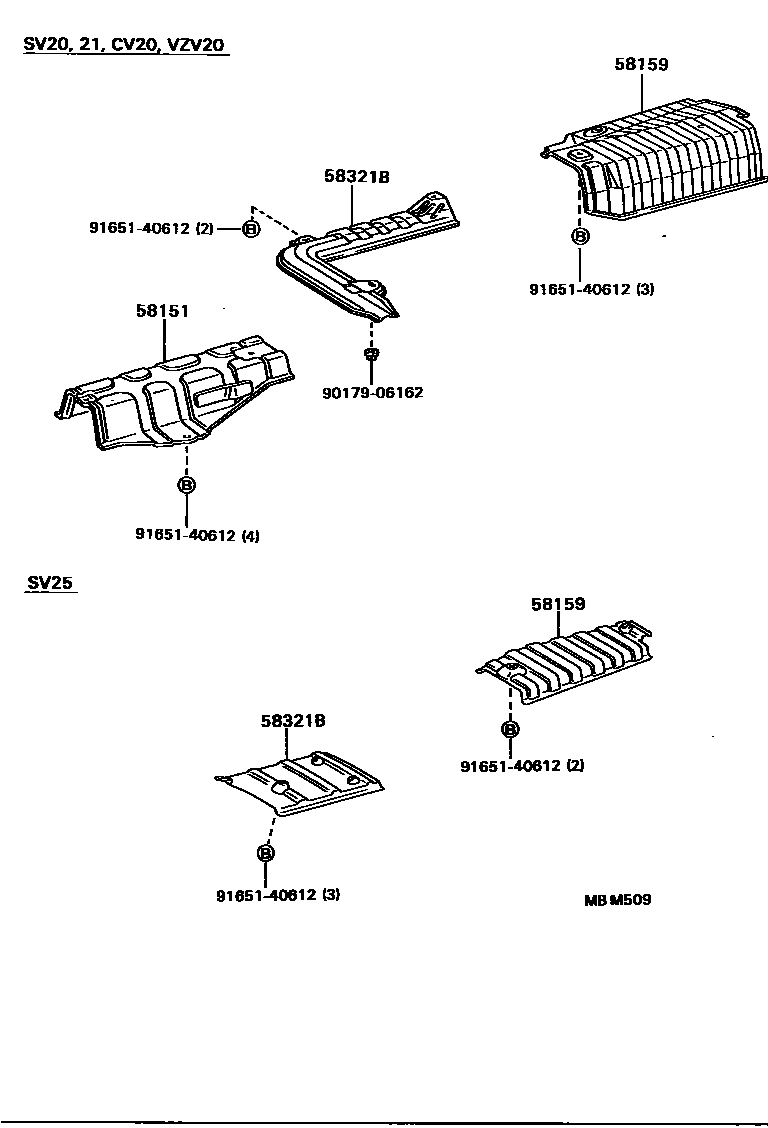

FLOOR INSULATOR

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58152-32020iSV21,VZV20..GT,PRO198608-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-32020iCV20,SV2#,VZV20198608-198808

main58327-32030iSV25198710-198808

58321BINSULATOR, REAR FLOOR HEAT, NO.1

main58321-20040iSV25198710-198808

main58321-32010iSV2#,VZV20198608-198808

9017906162

main90179-06162

9165140612

main91651-40612

5 parts on this diagram · 1 diagram in section
