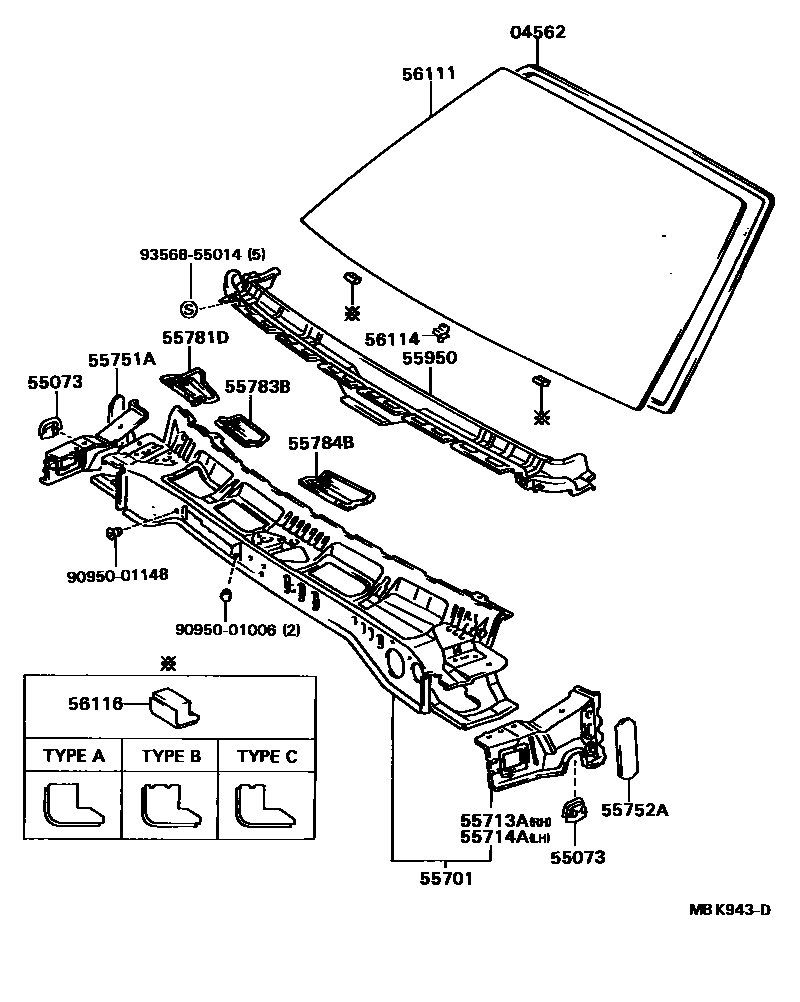

COWL PANEL & WINDSHIELD GLASS

04562DAM KIT, WINDSHIELD GLASS

main04562-30040iCV20,SV20,21,VZV20198608-198808

55073NOZZLE SUB-ASSY, COWL PANEL WATER EXTRACT

main55073-20020iCV20,SV2#198608-198701

main55073-32020iCV20,SV2#198701-198703

55701PANEL SUB-ASSY, COWL

main55700-32190iSV21..GT198608-198808

sub55700-32191

main55700-32200iSV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

sub55700-32201

main55700-32210iCV20198608-198808

sub55700-32140

main55700-32220iVZV20198704-198710

sub55700-32221

main55700-32221iVZV20198802-198808

sub55700-32222

55713APANEL, COWL TOP SIDE, RH

main55713-32020iCV20,SV2#,VZV20198608-198808

55714APANEL, COWL TOP SIDE, LH

main55714-32020iCV20,SV2#,VZV20198608-198808

55751ASHIELD, COWL VENTILATOR SPLASH, RH

main55751-32010iCV20,SV2#,VZV20198608-198808

55752ASHIELD, COWL VENTILATOR SPLASH, LH

main55751-32010iCV20,SV2#,VZV20198608-198808

55781DLOUVER, COWL TOP VENTILATOR, RH

main55781-32030iCV20,SV2#,VZV20198608-198710

COLD SPEC

main55781-32030iCV20,SV2#,VZV20198710-198808

main55781-32040iCV20,SV2#,VZV20198608-198808

55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1

main55783-32030iCV20,SV2#,VZV20198608-198710

COLD SPEC

main55783-32030iCV20,SV2#,VZV20198710-198808

main55783-32040iCV20,SV2#,VZV20198608-198808

55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2

main55784-32030iCV20,SV2#,VZV20198608-198710

COLD SPEC

main55784-32030iCV20,SV2#,VZV20198710-198808

main55784-32040iCV20,SV2#,VZV20198608-198808

55950NOZZLE ASSY, DEFROSTER

main55950-32030iCV20,SV2#,VZV20198608-198808

56111GLASS, WINDSHIELD

main56111-32120iCV20,SV20..SED..(LT,VC,VL,XT)198608-198710

sub56111-32130

main56111-32120iCV20,SV20,25..SED..(LT,VC,VL,XT)198710-198808

sub56111-32130

main56111-32130iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

sub56111-32131

main56111-32130iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198710-198808

sub56111-32131

main56111-32160iSV2#..HT..(GT,VE,VR,VX)198608-198710

sub56111-32170

main56111-32160iSV2#..HT..(GT,VE,VR,VX)198710-198808

sub56111-32170

main56111-32170iSV20..HT..VL198710-198808

sub56111-32240

main56111-32170iSV2#..HT..(GT,VE,VR,VX)198608-198710

sub56111-32240

main56111-32170iSV20..HT..VL198708-198710

sub56111-32240

main56111-32170iSV2#..HT..(GT,VE,VR,VX)198710-198808

sub56111-32240

main56111-32180iSV20..HT..VL198608-198710

main56111-32180iSV20,25..HT..VL198710-198808

main56111-32190iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZT,ZX)198608-198710

sub56111-32150

main56111-32190iCV20,SV2#,VZV20..SED..(GT,PRO,VE,VR,VX,ZE,ZX)198710-198808

sub56111-32150

main56111-32190iCV20,SV20..SED..VL198708-198710

sub56111-32150

main56111-32190iCV20,SV20..SED..VL198710-198808

sub56111-32150

main56111-32240iSV21..HT..VX198804-198808

56114RETAINER, WINDSHIELD GLASS

main56114-32010iCV20,SV2#,VZV20198608-198808

56116SPACER, WINDSHIELD GLASS

main56116-32040iCV20,SV2#,VZV20198710-198808

sub56116-32060

main56116-32040iCV20,SV2#,VZV20198608-198710

TYPE A

sub56116-32060

main56116-32050iCV20,SV2#,VZV20198608-198710

TYPE B

sub56116-32060

main56116-32050iCV20,SV2#,VZV20198710-198808

sub56116-32060

main56116-32060iCV20,SV2#,VZV20198710-198808

main56116-32060iCV20,SV2#,VZV20198608-198710

TYPE C

9095001006

main90950-01006

9095001148

main90950-01148

9356855014

main93568-55014

17 parts on this diagram · 1 diagram in section
