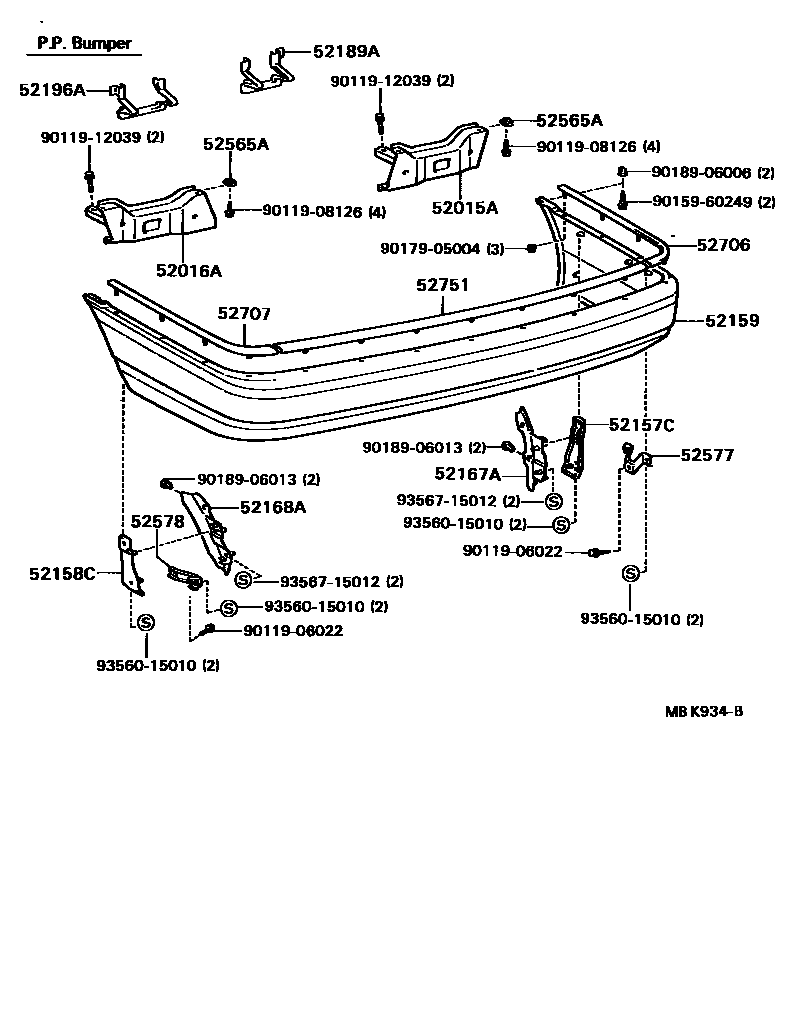

REAR BUMPER & BUMPER STAY

0001 1 0002 1 0003 1

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-32070iSV20..SED..(LT,VC,VL,XT)198608-198808

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-32010iSV20..SED..(LT,VC,VL,XT)198608-198808

52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH

main52157-32040iVZV20198704-198808

main52157-32050iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE

main52157-32050iSV20..SED..VL198710-198808

main52157-32050iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198608-198808

main52157-32050iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198710-198808

main52157-32060iSV20..SED..(LT,VC,VL,XT)198608-198808

52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH

main52158-32020iVZV20198704-198808

main52158-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198710-198808

main52158-32030iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE

main52158-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198608-198808

main52158-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198710-198808

main52158-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

52159COVER, REAR BUMPER

main52159-32130-02iVZV20198710-198808

DARK RED MC,3H3

sub52159-32910

main52159-32130-02iVZV20198704-198710

D-RED MAICA,DARK RED MC,3H3

sub52159-32910

main52159-32130-03iVZV20198704-198710

GRAY-M,GRAY M,167

sub52159-32910

main52159-32130-03iVZV20198710-198808

GRAY M,167

sub52159-32910

main52159-32130-04iVZV20198704-198710

BLUE MAICA,BLUE MC,8E3

sub52159-32910

main52159-32130-04iVZV20198710-198808

BLUE MC,8E3

sub52159-32910

main52159-32130-05iVZV20198710-198808

LIGHT BEIGE M,29C

sub52159-32910

main52159-32130-05iVZV20198704-198710

L-BEIGE-M,BEIGE M,29C

sub52159-32910

main52159-32130-08iVZV20198704-198710

SUPER WHITE,SUPER WHITE 2,040

sub52159-32910

main52159-32130-08iVZV20198710-198808

SUPER WHITE 2,040

sub52159-32910

main52159-32150-02iSV20..SED..(VE,VR,ZE,ZT)198608-198710

D-RED MAICA,DARK RED MICA,3H3

sub52159-32909

main52159-32150-02iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

DARK RED MICA,3H3

sub52159-32909

main52159-32150-02iSV20..XT198710-198808

sub52159-32909

main52159-32150-02iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,D-RED,DARK RED MICA,3H3

sub52159-32909

main52159-32150-02iSV20..SED..VL198710-198710

sub52159-32909

main52159-32150-03iSV20..SED..(VL,XT)198608-198710

GRAY-M,GRAY METALLIC,167

sub52159-32909

main52159-32150-03iSV20..SED..(VE,VR,ZE,ZT)198608-198710

SALOON,EXTRA,ETOILE,GRAY,GRAY METALLIC,167

sub52159-32909

main52159-32150-03iSV20..SED..VL198710-198808

sub52159-32909

main52159-32150-03iSV20..SED..VL198710-198808

GRAY METALLIC,167

sub52159-32909

main52159-32150-03iSV20..SED..VL198710-198710

sub52159-32909

main52159-32150-04iSV20..XT198710-198808

sub52159-32909

main52159-32150-04iSV20..SED..(VE,VR,ZE,ZT)198608-198710

BLUE MAICA,BLUE MICA,8E3

sub52159-32909

main52159-32150-04iSV20..SED..(VE,VR,ZE,ZT)198608-198710

SALOON,EXTRA,ETOILE,BLUE,BLUE MICA,8E3

sub52159-32909

main52159-32150-04iSV20..SED..VL198710-198808

BLUE MICA,8E3

sub52159-32909

main52159-32150-04iSV20..SED..VL198710-198710

sub52159-32909

main52159-32150-05iSV20..SED..VL198710-198808

LIGHT BEIGE,4G8

sub52159-32909

main52159-32150-05iCV20,SV21..SED198608-198710

L-BEIGE-M,BEIGE M,4G8 ,29C

sub52159-32909

main52159-32150-05iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,BEIGE,BEIGE M,4G8

sub52159-32909

main52159-32150-05iSV20..SED..VL198710-198710

sub52159-32909

main52159-32150-05iSV20..XT198710-198808

LIGHT BEIGE,4G8 ,29C

sub52159-32909

main52159-32150-05iSV20..XT198710-198808

sub52159-32909

main52159-32150-06iSV20..SED..(VL,XT)198608-198710

SALOON,EXTRA,ETOILE,BROWN,BROWN METALLIC,4H2

sub52159-32909

main52159-32150-06iSV20..SED..(VL,XT)198608-198710

BROWN-M,BROWN METALLIC,4H2

sub52159-32909

main52159-32150-08iSV20..SED..(VL,XT)198608-198710

SUPER WHITE,SUPER WHITE 2,040

sub52159-32909

main52159-32150-08iSV20..SED..(VE,VR,ZE,ZT)198608-198710

SALOON,EXTRA,ETOILE,WHITE,SUPER WHITE 2,040

sub52159-32909

main52159-32150-08iSV20..SED..VL198710-198710

sub52159-32909

main52159-32150-08iSV20..XT198710-198808

SUPER WHITE 2,040

sub52159-32909

main52159-32150-08iSV20..XT198710-198808

sub52159-32909

main52159-32150-13iSV20..SED..VL198710-198808

SILVER METALLIC,164

sub52159-32909

main52159-32150-13iSV20..XT198710-198808

sub52159-32909

main52159-32150-13iSV20..SED..VL198710-198710

sub52159-32909

main52159-32170iSV20..SED..(LT,VC,VL,XT)198608-198808

main52159-32190-02iSV2#..HT198608-198710

D-RED MAICA,DARK RED MICA,3H3

sub52159-32909

main52159-32190-02iSV2#..HT198710-198808

DARK RED MICA,3H3

sub52159-32909

main52159-32190-03iSV2#..HT198710-198808

GRAY METALLIC,167 ,29B

sub52159-32909

main52159-32190-03iSV2#..HT198608-198710

GRAY-M,GRAY METALLIC,167 ,29B

sub52159-32909

main52159-32190-04iSV2#..HT198608-198710

GRAISH BLUE-M,GRAYISH BLUE M,8D6

sub52159-32909

main52159-32190-04iSV2#..HT198710-198808

GRAYISH BLUE M,8D6

sub52159-32909

main52159-32190-05iSV2#..HT198608-198710

L-BEIGE-M,BEIGE M,4G8 ,29C

sub52159-32909

main52159-32190-05iSV2#..HT198710-198808

LIGHT BEIGE,4G8 ,29C

sub52159-32909

main52159-32190-08iSV2#..HT198710-198808

SUPER WHITE 2,040

sub52159-32909

main52159-32190-08iSV2#..HT198608-198710

SUPER WHITE,SUPER WHITE 2,040

sub52159-32909

main52159-32190-13iSV2#..HT198710-198808

SILVER METALLIC,164

sub52159-32909

main52159-32190-14iSV2#..HT198710-198808

BLUE MICA,8E3

sub52159-32909

main52159-32190-14iSV2#..HT198608-198710

BLUE MAICA,BLUE MICA,8E3

sub52159-32909

main52159-32190-18iSV21..HT..VX198804-198808

sub52159-32909

52167ASUPPORT, REAR BUMPER SIDE, NO.4 RH

main52167-32020iSV20..SED..VL198710-198710

main52167-32020iCV20,SV2#,VZV20198608-198808

52168ASUPPORT, REAR BUMPER SIDE, NO.4 LH

main52168-32020iSV20..SED..VL198710-198710

main52168-32020iCV20,SV2#,VZV20198608-198808

52189APROTECTOR, REAR BUMPER ARM EDGE, RH

main52189-32010iCV20,SV2#,VZV20..SED198608-198808

main52189-32020iSV2#..HT198608-198808

52196APROTECTOR, REAR BUMPER ARM EDGE, LH

main52196-32010iCV20,SV2#,VZV20..SED198608-198808

main52196-32020iSV2#..HT198608-198808

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040iSV20..SED..(LT,VC,VL,XT)198608-198808

main52565-32030iVZV20198704-198808

main52565-32040iSV25..HT198710-198808

main52565-32040iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE

main52565-32040iSV25..HT198710-198808

52577RETAINER, REAR BUMPER SIDE, NO.2 RH

main52577-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

52578RETAINER, REAR BUMPER SIDE, NO.2 LH

main52578-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

52706MOULDING SUB-ASSY, REAR BUMPER SIDE, RH

main52706-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198710-198808

main52706-32030iSV20..SED..VL198710-198808

main52706-32030iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE

main52706-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198608-198808

main52706-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

52707MOULDING SUB-ASSY, REAR BUMPER SIDE, LH

main52707-32030iSV20..XT198710-198808

main52707-32030iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE

main52707-32030iSV20..SED..VL198710-198808

main52707-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198608-198808

main52707-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

52751MOULDING, REAR BUMPER

main52751-32030iSV2#..HT198608-198710

SALOON,EXTRA,ETOILE

main52751-32030iSV20..XT198710-198808

main52751-32030iSV20..XT198710-198808

main52751-32030iCV20,SV21,25;SV20..HT..VL;SV20..VE,VR,ZE,ZT198608-198808

main52751-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

9011906022

main90119-06022

9011908126

main90119-08126

9011912039

main90119-12039

9015960249

main90159-60249

9017905004

main90179-05004

9018906006

main90189-06006

9018906013

main90189-06013

9356015010

main93560-15010

9356715012

main93567-15012

24 parts on this diagram · 3 diagrams in section
