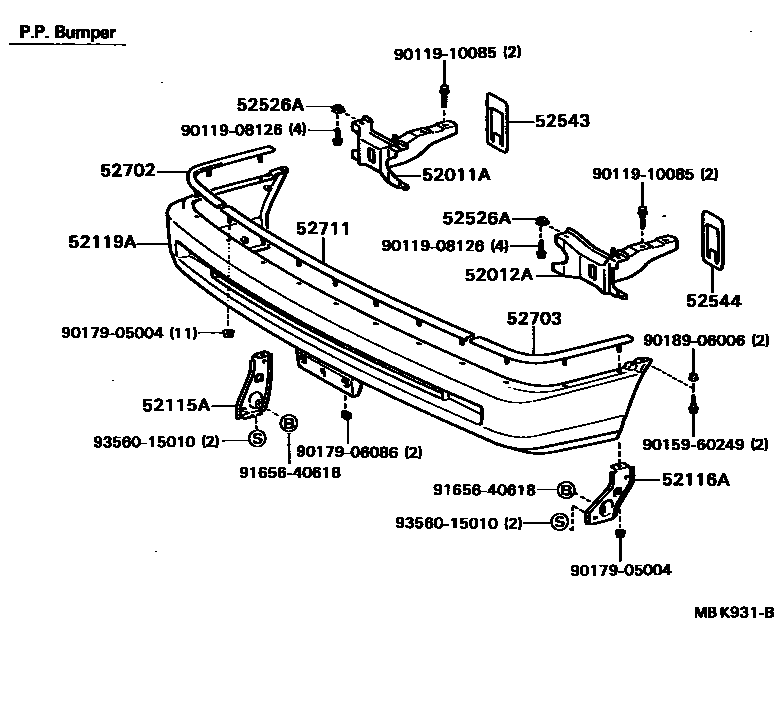

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-32070iSV20..SED..(LT,VC,VL,XT)198608-198808

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-32050iSV20..SED..(LT,VC,VL,XT)198608-198808

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-32020iVZV20198704-198808

main52115-32030iSV20..SED..(VL,XT)198608-198710

SALOON,EXTRA,ETOILE

main52115-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198608-198808

main52115-32030iSV20..SED..VL198710-198808

main52115-32030iSV20..XT198710-198808

main52115-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

main52115-32050iSV2#..HT198608-198808

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-32020iVZV20198704-198808

main52116-32030iSV20..XT198710-198808

main52116-32030iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE

main52116-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198608-198808

main52116-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

main52116-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

main52116-32050iSV2#..HT198608-198808

52119ACOVER, FRONT BUMPER

main52119-32170-02iVZV20198704-198710

D-RED MAICA,DARK RED MC,3H3

sub52119-32907

main52119-32170-02iVZV20198710-198808

DARK RED MC,3H3

sub52119-32907

main52119-32170-03iVZV20198710-198808

GRAY M,167

sub52119-32907

main52119-32170-03iVZV20198704-198710

GRAY-M,GRAY M,167

sub52119-32907

main52119-32170-04iVZV20198704-198710

BLUE MAICA,BLUE MC,8E3

sub52119-32907

main52119-32170-04iVZV20198710-198808

BLUE MC,8E3

sub52119-32907

main52119-32170-05iVZV20198710-198808

LIGHT BEIGE M,29C

sub52119-32907

main52119-32170-05iVZV20198704-198710

L-BEIGE-M,BEIGE M,29C

sub52119-32907

main52119-32170-08iVZV20198704-198710

SUPER WHITE,SUPER WHITE 2,040

sub52119-32907

main52119-32170-08iVZV20198710-198808

SUPER WHITE 2,040

sub52119-32907

main52119-32220-02iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,D-RED,DARK RED MICA,3H3

sub52119-32905

main52119-32220-02iSV20..SED..(VE,VR,ZE,ZT)198608-198710

D-RED MAICA,DARK RED MICA,3H3

sub52119-32905

main52119-32220-02iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

DARK RED MICA,3H3

sub52119-32905

main52119-32220-03iSV20..XT198710-198808

GRAY METALLIC,167

sub52119-32905

main52119-32220-03iCV20,SV21..SED198608-198710

GRAY-M,GRAY METALLIC,167

sub52119-32905

main52119-32220-03iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,GRAY,GRAY METALLIC,167

sub52119-32905

main52119-32220-04iSV20..SED..(VE,VR,ZE,ZT)198608-198710

SALOON,EXTRA,ETOILE,BLUE,BLUE MICA,8E3

sub52119-32905

main52119-32220-04iSV20..XT198710-198808

BLUE MICA,8E3

sub52119-32905

main52119-32220-04iSV20..SED..(VE,VR,ZE,ZT)198608-198710

BLUE MAICA,BLUE MICA,8E3

sub52119-32905

main52119-32220-05iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,BEIGE,BEIGE M,4G8

sub52119-32905

main52119-32220-05iCV20,SV21..SED198608-198710

L-BEIGE-M,BEIGE M,4G8 ,29C

sub52119-32905

main52119-32220-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

LIGHT BEIGE,4G8 ,29C

sub52119-32905

main52119-32220-05iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

LIGHT BEIGE,4G8

sub52119-32905

main52119-32220-06iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,BROWN,BROWN METALLIC,4H2

sub52119-32905

main52119-32220-06iSV20..SED..(VL,XT)198608-198710

BROWN-M,BROWN METALLIC,4H2

sub52119-32905

main52119-32220-08iSV20..SED..VL198710-198808

SUPER WHITE 2,040

sub52119-32905

main52119-32220-08iCV20,SV21..SED198608-198710

SUPER WHITE,SUPER WHITE 2,040

sub52119-32905

main52119-32220-08iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE,WHITE,SUPER WHITE 2,040

sub52119-32905

main52119-32220-13iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

SILVER METALLIC,164

sub52119-32905

main52119-32230iSV20..SED..(LT,VC,VL,XT)198608-198808

main52119-32260-02iSV2#..HT198608-198710

D-RED MAICA,DARK RED MICA,3H3

sub52119-32914

main52119-32260-02iSV2#..HT198710-198808

DARK RED MICA,3H3

sub52119-32914

main52119-32260-03iSV2#..HT198710-198808

GRAY METALLIC,167 ,29B

sub52119-32914

main52119-32260-03iSV2#..HT198608-198710

GRAY-M,GRAY METALLIC,167 ,29B

sub52119-32914

main52119-32260-04iSV2#..HT198608-198710

GRAISH BLUE-M,GRAYISH BLUE M,8D6

sub52119-32914

main52119-32260-04iSV2#..HT198710-198808

GRAYISH BLUE M,8D6

sub52119-32914

main52119-32260-05iSV2#..HT198608-198710

L-BEIGE-M,BEIGE M,4G8 ,29C

sub52119-32914

main52119-32260-05iSV2#..HT198710-198808

LIGHT BEIGE,4G8 ,29C

sub52119-32914

main52119-32260-08iSV2#..HT198608-198710

SUPER WHITE,SUPER WHITE 2,040

sub52119-32914

main52119-32260-08iSV2#..HT198710-198808

SUPER WHITE 2,040

sub52119-32914

main52119-32260-13iSV2#..HT198710-198808

SILVER METALLIC,164

sub52119-32914

main52119-32260-14iSV2#..HT198608-198710

BLUE MAICA,BLUE MICA,8E3

sub52119-32914

main52119-32260-14iSV2#..HT198710-198808

BLUE MICA,8E3

sub52119-32914

main52119-32330-08iSV21..HT..VX198804-198808

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-32040iVZV20198704-198808

52526ARETAINER, FRONT BUMPER, LOWER NO.1

main52526-32050iSV20..XT198710-198808

main52526-32050iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE

main52526-32050iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198608-198808

main52526-32050iSV20..SED..VL198710-198808

main52526-32060iSV2#..HT198608-198808

main52565-12040iSV20..SED..(LT,VC,VL,XT)198608-198808

52543SEAL, FRONT BUMPER SIDE, RH

main52543-32020iSV20..SED..(VL,XT)198610-198710

SALOON,EXTRA,ETOILE

main52543-32030iSV20..SED..(LT,VC,VL,XT)198610-198710

52544SEAL, FRONT BUMPER SIDE, LH

main52543-32020iCV20,SV21..SED198610-198710

SALOON,EXTRA,ETOILE

main52543-32030iSV20..SED..(LT,VC,VL,XT)198610-198710

52702MOULDING SUB-ASSY, FRONT BUMPER SIDE, RH

main52702-32030iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE

main52702-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198608-198808

main52702-32030iSV20..XT198710-198808

main52702-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198710-198808

main52702-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

main52702-32050iSV2#..HT198608-198808

52703MOULDING SUB-ASSY, FRONT BUMPER SIDE, LH

main52703-32030iSV20..XT198710-198808

main52703-32030iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE

main52703-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198608-198808

main52703-32030iSV20..XT198710-198808

main52703-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

sub52703-32030

main52703-32050iSV2#..HT198608-198808

52711MOULDING, FRONT BUMPER

main52711-32030iSV20..XT198710-198808

main52711-32030iCV20,SV21..SED198608-198710

SALOON,EXTRA,ETOILE

main52711-32030iSV20..SED..VL198710-198808

main52711-32030iCV20,SV21,25..SED;SV20..SED..(VE,VR,ZE,ZT)198608-198808

main52711-32040iSV20..SED..(LT,VC,VL,XT)198608-198808

main52711-32050iSV2#..HT198608-198808

9011908126

main90119-08126

9011910085

main90119-10085

9015960249

main90159-60249

9017905004

main90179-05004

9017906086

main90179-06086

9018906006

main90189-06006

9165640618

main91656-40618

9356015010

main93560-15010

20 parts on this diagram · 4 diagrams in section
