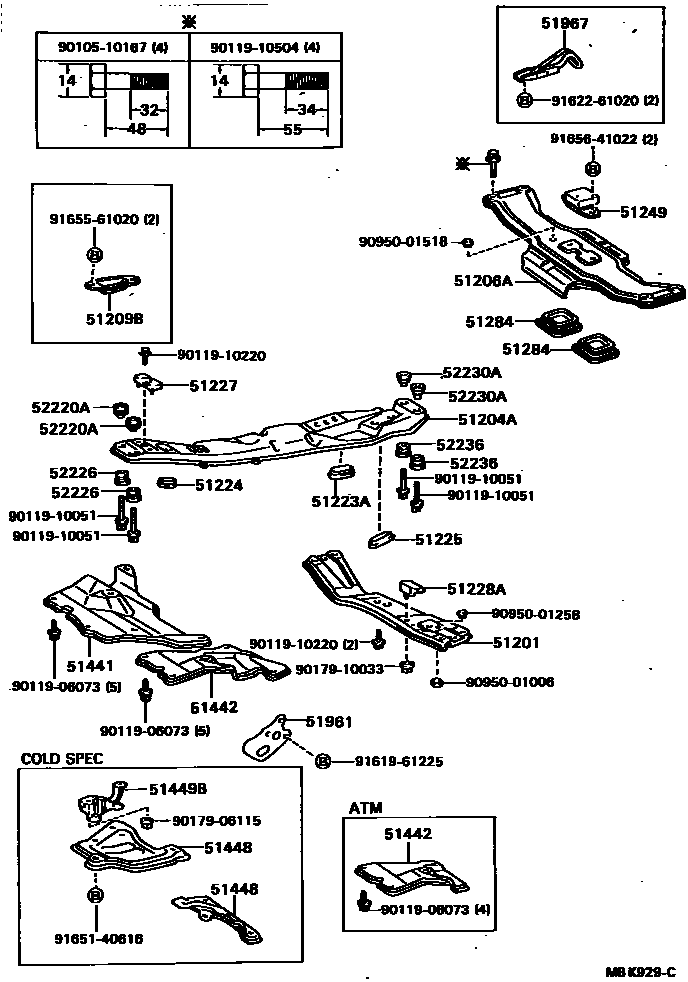

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-32010iCV20,SV2#,VZV20198608-198808

sub51201-32020

sub51248-32010

sub90950-06055

main51201-32030iSV25198710-198808

51204AMEMBER SUB-ASSY, ENGINE MOUNTING, CENTER

main51204-32020iCV20,SV2#,VZV20198608-198805

sub51204-32021

sub90119-10535

main51204-32021iCV20,SV20,21,VZV20198805-198808

sub51204-32022

main51204-32040iSV25198710-198805

sub51204-32041

sub90119-10535

main51204-32041iSV25198805-198808

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-20010iSV25198710-198801

sub51206-20011

main51206-20011iSV25198801-198808

main51206-32010iCV20,SV2#,VZV20198608-198808

51209BPROTECTOR SUB-ASSY, CENTER MEMBER, FRONT

main51209-32010iCV20,SV20..4FC198608-198808

main51209-32030iSV25198710-198808

51223ACOVER, ENGINE MOUNTING HOLE

main51223-32020iCV20,SV2#,VZV20198608-198808

51224COVER, ENGINE MOUNTING HOLE, NO.2

main51224-32010iCV20,SV2#,VZV20198608-198808

51225COVER, ENGINE MOUNTING HOLE, NO.3

main51225-32010iCV20,SV2#,VZV20198608-198808

main51225-32020iSV25198710-198808

51227WEIGHT, FRONT SUSPENSION MEMBER DAMPER

main51227-32010iCV20,SV2#,VZV20198608-198808

51228AWEIGHT, FRONT SUSPENSION MEMBER DAMPER, LH

main51228-32010iCV20,SV2#,VZV20198608-198808

51249DAMPER, REAR SUSPENSION MEMBER

main51249-32010iCV20,SV2#,VZV20198608-198808

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-32010iCV20,SV2#,VZV20198608-198808

51441COVER, ENGINE UNDER, NO.1

main51441-32030iCV20,SV2#,VZV20198608-198808

51442COVER, ENGINE UNDER, NO.2

main51442-32030iCV20,SV2#,VZV20..5F198608-198808

main51442-32040iCV20,SV2#,VZV20..4FC198608-198808

51448PROTECTOR, OIL PAN

main51447-32020iCV20,SV2#,VZV20198608-198710

RH

main51447-32020iCV20,SV2#,VZV20198710-198808

main51448-32020iCV20,SV2#,VZV20198710-198808

main51448-32020iCV20,SV2#,VZV20198608-198710

LH

51449BBRACKET, OIL PAN PROTECTOR

main51449-32020iCV20,SV2#,VZV20198608-198808

51961HOOK, NO.1

main51963-32020iCV20,SV2#,VZV20198608-198808

51967HOOK, TRANSPORT, REAR

main51095-32020iSV20..SED..(LT,VC,VL,XT)198608-198710

RH

main51095-32020iSV20..SED..(LT,VC,VL,XT)198710-198808

main51096-32010iSV20..SED..(LT,VC,VL,XT)198608-198710

LH

main51096-32010iSV20..SED..(LT,VC,VL,XT)198710-198808

52220ACUSHION ASSY, CENTER MEMBER MOUNTING, FRONT UPPER

main52220-32040iCV20,SV2#,VZV20198608-198808

52226CUSHION, CENTER MEMBER MOUNTING, FRONT LOWER

main52226-32010iCV20,SV2#,VZV20198608-198808

52230ACUSHION ASSY, CENTER MEMBER MOUNTING, REAR UPPER

main52230-32030iCV20,SV2#,VZV20198608-198808

52236CUSHION, CENTER MEMBER MOUNTING, REAR LOWER

main52236-32020iCV20,SV2#,VZV20198608-198808

9010510167

main90105-10167

9011906073

main90119-06073

9011910051

main90119-10051

9011910220

main90119-10220

9011910504

main90119-10504

9017906115

main90179-06115

9017910033

main90179-10033

9095001006

main90950-01006

9095001258

main90950-01258

9095001518

main90950-01518

9161961225

main91619-61225

9162261020

main91622-61020

9165140616

main91651-40616

9165561020

main91655-61020

9165641022

main91656-41022

36 parts on this diagram · 2 diagrams in section
