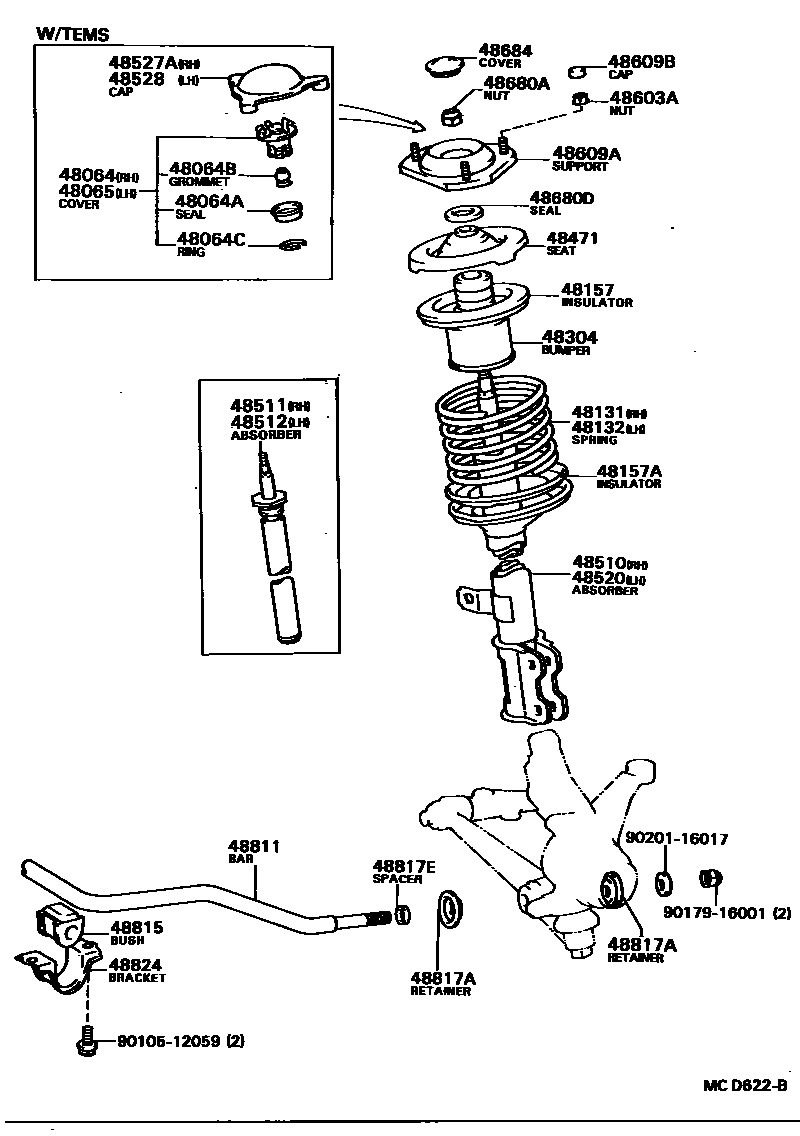

FRONT SPRING & SHOCK ABSORBER

48064COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, RH

main48064-16010iSV21,VZV20..GT,PRO¥1,510198710-198808

main48064-16010iSV21,VZV20..GT,PRO¥1,510198608-198710

W/TEMS

48064ASEAL, DUST(FOR FRONT SUSPENSION SUPPORT COVER)

main90304-26001iSV21,VZV20..GT,PRO¥310198710-198808

main90304-26001iSV21,VZV20..GT,PRO¥310198608-198710

W/TEMS

48064BGROMMET(FOR FRONT SUSPENSION SUPPORT COVER)

main90480-13019iSV21,VZV20..GT,PRO¥190198710-198808

main90480-13019iSV21,VZV20..GT,PRO¥190198608-198710

W/TEMS

48064CRING, SET(FOR FRONT SUSPENSION SUPPORT COVER)

main90522-24001iSV21,VZV20..GT,PRO¥180198608-198710

W/TEMS

main90522-24001iSV21,VZV20..GT,PRO¥180198710-198808

48065COVER SUB-ASSY, FRONT SUSPENSION SUPPORT, LH

main48065-16010iSV21,VZV20..GT,PRO¥1,510198710-198808

main48065-16010iSV21,VZV20..GT,PRO¥1,510198608-198710

W/TEMS

48131SPRING, FRONT COIL, RH

main48131-32380iSV21..5F..(VE,VX,ZT,ZX)¥10,000198608-198808

sub48131-32880¥10,000

main48131-32440iSV21..SED..5F..GT¥10,100198608-198808

main48131-32470iSV21..HT..5F..GT¥10,100198608-198808

main48131-32490iSV21..SED..4FC..GT¥10,500198608-198808

main48131-32510iSV25;SV21..HT..4FC..GT¥10,800198608-198808

main48131-32530iCV20..5F¥10,500198608-198808

main48131-32550iCV20..4FC¥10,800198608-198808

main48131-32590iSV20..LT,VC¥8,600198608-198808

main48131-32610iSV20..SED..5F..(VE,VL,VR,XT,ZE,ZT)¥9,100198608-198808

main48131-32620iSV20..HT..5F;SV20..SED..4FC¥10,000198608-198808

main48131-32640iSV20..HT..4FC¥10,100198608-198808

main48131-32680iVZV20..5F¥12,000198704-198808

main48131-32760iVZV20..4FC¥12,000198704-198808

sub48131-32780

48132SPRING, FRONT COIL, LH

main48131-32380iSV21..5F..(VE,VX,ZT,ZX)¥10,000198608-198808

sub48131-32880¥10,000

main48131-32440iSV21..SED..5F..GT¥10,100198608-198808

main48131-32470iSV21..HT..5F..GT¥10,100198608-198808

main48131-32490iSV21..SED..4FC..GT¥10,500198608-198808

main48131-32510iSV21..HT..4FC¥10,800198608-198808

main48131-32530iCV20..5F¥10,500198608-198808

main48131-32550iCV20,SV21..4FC..(VE,VL,VX,XT,ZT,ZX)¥10,800198608-198808

main48131-32590iSV20..LT,VC¥8,600198608-198808

main48131-32610iSV20..SED..5F..(VE,VL,VR,XT,ZE,ZT)¥9,100198608-198808

main48131-32620iSV20..HT..5F;SV20..SED..4FC¥10,000198608-198808

main48131-32640iSV20..HT..4FC¥10,100198608-198808

main48131-32680iVZV20..5F¥12,000198704-198808

main48131-32760iVZV20..4FC¥12,000198704-198808

sub48131-32780

48157INSULATOR, FRONT COIL SPRING, UPPER

main48157-32020iCV20,SV2#,VZV20¥1,290198608-198808

48157AINSULATOR, FRONT COIL SPRING, LOWER

main48158-32020iCV20,SV2#,VZV20¥1,180198608-198808

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-32030iCV20,SV2#,VZV20¥3,240198608-198808

48471SEAT, FRONT SPRING, UPPER

main48044-32020iCV20,SV2#,VZV20¥2,660198608-198808

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-32080iCV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX¥24,400198608-198801

sub48510-32081¥24,700

sub90561-17002¥530

main48510-32081iCV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX¥24,700198801-198808

sub48510-32082¥24,700

main48510-32090iSV21..GT¥24,400198608-198801

sub48510-32091¥24,700

sub90561-17002¥530

main48510-32091iSV21..GT¥24,700198801-198808

sub48510-32092¥24,300

main48510-32100iSV21,VZV20..GT,PRO¥49,800198710-198801

sub48510-32101¥50,000

sub90561-17002¥530

main48510-32100iSV21,VZV20..GT,PRO¥49,800198608-198710

W/TEMS

sub48510-32101¥50,000

sub90561-17002¥530

main48510-32101iSV21,VZV20..GT,PRO¥50,000198801-198808

main48510-32120iVZV20¥24,400198710-198801

sub48510-32121¥26,800

sub90561-17002¥530

main48510-32121iVZV20¥26,800198801-198808

sub48510-32091¥24,700

main48510-32130iSV25¥24,400198710-198801

sub48510-32131¥26,800

sub90561-17002¥530

main48510-32131iSV25¥26,800198801-198808

sub48510-32132¥24,700

48511ABSORBER, SHOCK FRONT, RH(FOR CARTRIDGE TYPE)

main48511-32030iSV21..VE,VX,ZT,ZX¥14,700198801-198808

W/O TEMS

main48511-32040iSV21..GT¥14,700198801-198808

W/O TEMS

sub48511-32030¥14,700

main48511-32050iVZV20¥14,700198801-198808

W/O TEMS

sub48511-32030¥14,700

main48511-32060iSV25¥14,700198801-198808

W/O TEMS

sub48511-32030¥14,700

48512ABSORBER, SHOCK FRONT, LH(FOR CARTRIDGE TYPE)

main48511-32030iSV21..VE,VX,ZT,ZX¥14,700198801-198808

W/O TEMS

main48511-32040iSV21..GT¥14,700198801-198808

W/O TEMS

sub48511-32030¥14,700

main48511-32050iVZV20¥14,700198801-198808

W/O TEMS

sub48511-32030¥14,700

main48511-32060iSV25¥14,700198801-198808

W/O TEMS

sub48511-32030¥14,700

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-32080iCV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX¥24,400198608-198801

sub48520-32081¥24,700

sub90561-17002¥530

main48520-32081iCV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX¥24,700198801-198808

sub48520-32082¥24,700

main48520-32090iSV21..GT¥24,400198608-198801

sub48520-32091¥24,700

sub90561-17002¥530

main48520-32091iSV21..GT¥24,700198801-198808

sub48520-32092¥24,300

main48520-32100iSV21,VZV20..GT,PRO¥49,800198608-198710

W/TEMS

sub48520-32101¥50,000

sub90561-17002¥530

main48520-32100iSV21,VZV20..GT,PRO¥49,800198710-198801

sub48520-32101¥50,000

sub90561-17002¥530

main48520-32101iSV21,VZV20..GT,PRO¥50,000198801-198808

main48520-32120iVZV20¥24,400198710-198801

sub48520-32121¥24,700

sub90561-17002¥530

main48520-32121iVZV20¥24,700198801-198808

sub48520-32091¥24,700

main48520-32130iSV25¥24,400198710-198801

sub48520-32131¥24,700

sub90561-17002¥530

main48520-32131iSV25¥24,700198801-198808

sub48520-32132¥24,700

48527ACAP, FRONT SHOCK ABSORBER, RH

main48527-32010iSV21,VZV20..GT,PRO¥820198608-198710

W/TEMS

main48527-32010iSV21,VZV20..GT,PRO¥820198710-198808

48528CAP, FRONT SHOCK ABSORBER, LH

main48528-32010iSV21,VZV20..GT,PRO¥820198608-198710

W/TEMS

main48528-32010iSV21,VZV20..GT,PRO¥820198710-198808

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90179-10095iCV20,SV2#,VZV20¥110198608-198808

48609ASUPPORT SUB-ASSY, FRONT SUSPENSION

main48609-32030iCV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX¥6,100198608-198808

main48609-32050iSV21..GT¥5,500198608-198710

main48609-32050iVZV20¥5,500198704-198808

48609BCAP(FOR FRONT SUSPENSION SUPPORT)

main90339-15002iCV20,SV2#,VZV20..LT,PRO,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX¥230198608-198808

48680ANUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER)

main90179-14029iSV21,VZV20..GT,PRO¥190198608-198710

W/TEMS

main90179-14029iSV21,VZV20..GT,PRO¥190198710-198808

main94182-11400iCV20,SV2#,VZV20¥310198608-198808

48680DSEAL, DUST(FOR FRONT SUSPENSION SUPPORT)

main90303-22049iCV20,SV2#,VZV20¥260198608-198808

48684COVER, BEARING DUST

main48684-32010iCV20,SV2#,VZV20¥590198608-198808

48811BAR, STABILIZER, FRONT

main48811-32080iCV20,SV20¥17,000198608-198808

main48811-32090iVZV20¥16,900198704-198808

sub48811-32200¥16,200

main48811-32120iSV21¥18,800198608-198808

sub48811-32220¥18,800

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-32040iVZV20¥1,000198704-198808

sub48815-32110¥1,000

main48815-32060iCV20,SV2#¥1,000198608-198808

sub48815-32120¥990

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02102iSV21,VZV20¥530198608-198710

LH

sub90948-02117¥410

main90948-02102iCV20,SV20¥530198608-198712

sub90948-02117¥410

main90948-02102iSV21,25,VZV20¥530198710-198712

sub90948-02117¥410

main90948-02106iSV21,VZV20¥1,080198608-198710

RH

sub90948-02118¥1,080

main90948-02106iSV21,25,VZV20¥1,080198710-198712

sub90948-02118¥1,080

main90948-02117iSV21,25,VZV20¥410198712-198808

LH

sub90948-02115¥400

main90948-02118iSV21,25,VZV20¥1,080198712-198808

RH

sub90948-02124¥1,070

48817ESPACER(FOR STABILIZER BAR)

main90560-16005iCV20,SV2#,VZV20¥300198608-198808

48824BRACKET, STABILIZER, FRONT

main48824-32030iCV20,SV2#,VZV20¥1,140198608-198808

sub48824-32040¥1,350

9010512059

main90105-12059¥300

9017916001

main90179-16001¥270

9020116017

main90201-16017¥190

31 parts on this diagram · 1 diagram in section
