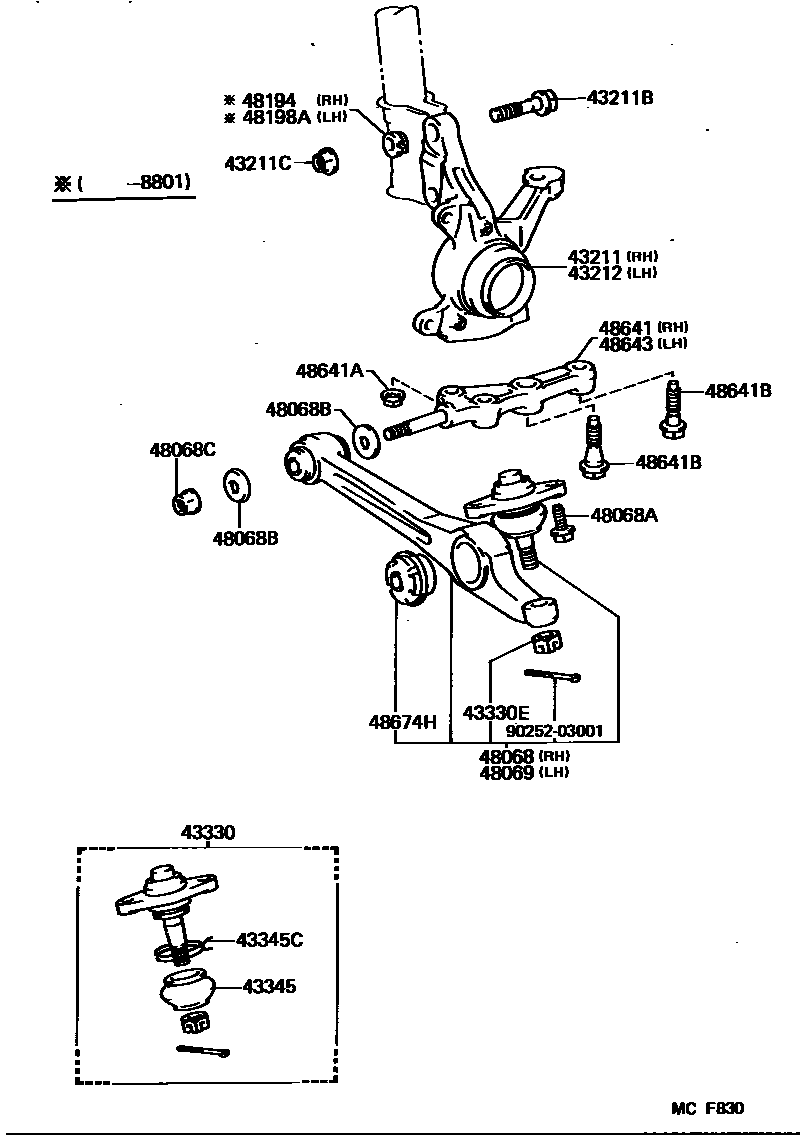

FRONT AXLE ARM & STEERING KNUCKLE
43211BBOLT (FOR ABSORBER SETTING)
43211CNUT (FOR ABSORBER SETTING)
43330JOINT ASSY, LOWER BALL, FRONT
sub43330-39275
43330ENUT, CASTLE (FOR FRONT LOWER BALL JOINT SETTING)
43345COVER, LOWER BALL JOINT DUST
43345CWIRE (FOR LOWER BALL JOINT DUST COVER)
48068ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH
48068ABOLT(FOR FRONT SUSPENSION LOWER ARM)
48068BRETAINER, CUSHION(FOR FRONT SUSPENSION LOWER ARM)
RR
FR
48068CNUT(FOR FRONT SUSPENSION LOWER ARM)
48069ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH
48194CAM, CAMBER ADJUST, RH
48198ACAM, CAMBER ADJUST, LH
48641SHAFT, LOWER ARM, RH
48641ANUT(FOR SUSPENSION LOWER ARM SHAFT)
48641BBOLT(FOR SUSPENSION LOWER ARM SHAFT)
48643SHAFT, LOWER ARM, LH
48674HCUSHION, STRUT BAR
9025203001
main90252-03001
21 parts on this diagram · 1 diagram in section
