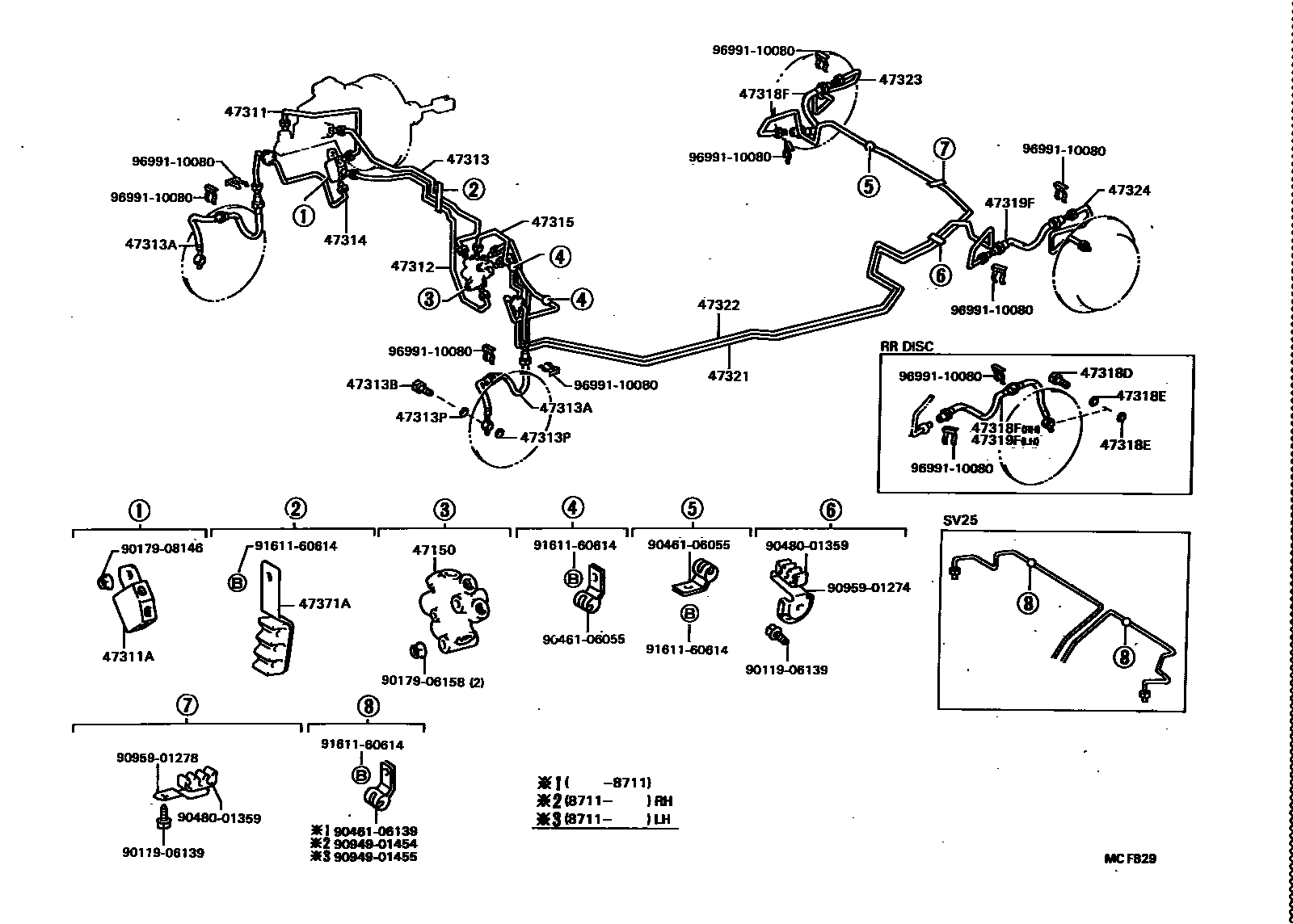

BRAKE TUBE & CLAMP

0001 1 0002 1W/ESC 0003 1W/ESC

47150VALVE ASSY, PROPORTIONING

main47150-12060iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

sub47150-12270

main47150-16040iSV25198710-198808

sub47150-12260

main47150-20130iSV21,VZV20..GT,PRO198608-198808

sub47150-12240

main47150-32040iSV21,VZV20..GT,PRO198704-198808

main47150-32060iSV25198710-198808

47311TUBE, FRONT BRAKE, NO.1

main47311-32070iCV20,SV20198608-198808

main47311-32080iSV21..VE,VX,ZT,ZX198608-198808

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10193iCV20,SV2#,VZV20198608-198808

47312TUBE, FRONT BRAKE, NO.2

main47312-32080iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main47312-32090iSV21,VZV20..GT,PRO198608-198808

47313TUBE, FRONT BRAKE, NO.3

main47313-32070iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main47313-32080iSV21,VZV20..GT,PRO198608-198808

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02496iCV20,SV2#,VZV20198608-198808

sub90947-02987

main90947-02540iSV21,VZV20..GT,PRO198704-198808

sub90947-02987

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015iCV20,SV2#,VZV20198608-198808

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074iCV20,SV2#,VZV20198608-198808

47314TUBE, FRONT BRAKE, NO.4

main47314-32070iCV20,SV20,21..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main47314-32080iSV21,VZV20..GT,PRO198608-198808

47315TUBE, FRONT BRAKE, NO.5

main47315-32060iCV20,SV2#,VZV20198608-198808

main47315-32080iSV21,VZV20..GT,PRO198704-198710

W/ESC

main47315-32080iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

47318TUBE, FRONT BRAKE, NO.8

main47318-32010iSV21,VZV20..GT,PRO198704-198710

W/ESC

main47318-32010iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015iSV21,VZV20..GT,PRO198608-198808

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074iSV21,VZV20..GT,PRO198608-198808

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02497iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main90947-02498iSV21,VZV20..GT,PRO198608-198808

main90947-02549iSV25198710-198808

sub90947-02939

47319TUBE, FRONT BRAKE, NO.9

main47319-32010iSV21,VZV20..GT,PRO198704-198710

W/ESC

main47319-32010iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02497iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main90947-02498iSV21,VZV20..GT,PRO198608-198808

main90947-02549iSV25198710-198808

sub90947-02939

47321TUBE, REAR BRAKE, NO.1

main47321-32050iCV20198608-198708

main47321-32100iSV25198710-198808

main47321-32110iCV20,SV20,21,VZV20198704-198808

47322TUBE, REAR BRAKE, NO.2

main47322-32040iCV20,SV2#198608-198708

main47322-32090iSV25198710-198805

main47322-32100iSV2#,VZV20198704-198808

47323TUBE, REAR BRAKE, NO.3

main47323-32030iSV21,VZV20..GT,PRO198704-198808

main47323-32040iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

47324TUBE, REAR BRAKE, NO.4

main47324-32030iSV21,VZV20..GT,PRO198704-198808

main47324-32040iCV20,SV2#..LT,VC,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

47371ACLAMP, BRAKE TUBE, NO.1

main47371-32010iCV20,SV2#,VZV20198608-198808

main47371-32020iSV21,VZV20..GT,PRO198704-198710

W/ESC

main47371-32020iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

9011906139

main90119-06139

9017906158

main90179-06158

9017908146

main90179-08146

9046106055

main90461-06055

9046106139

main90461-06139

9048001359

main90480-01359

9094901454

main90949-01454

9094901455

main90949-01455

9095901274

main90959-01274

9095901278

main90959-01278

9161160614

main91611-60614

9699110080

main96991-10080

33 parts on this diagram · 3 diagrams in section
