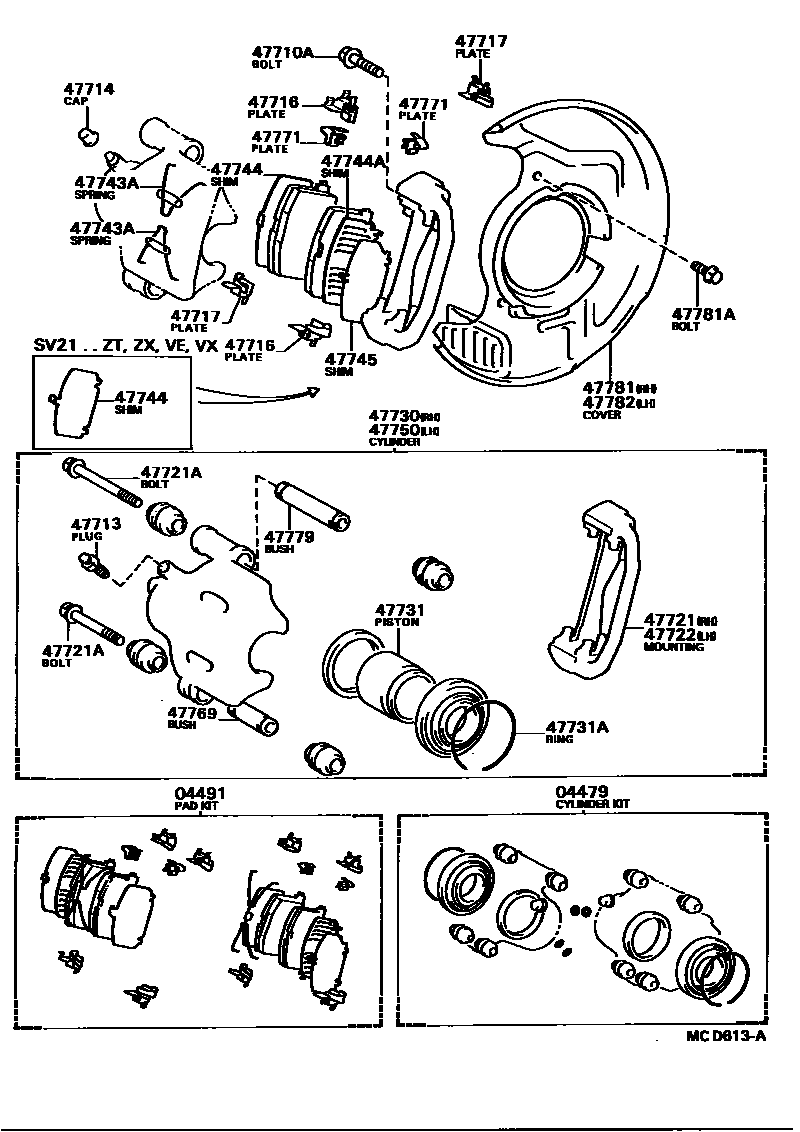

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 1

04479CYLINDER KIT, DISC BRAKE, FRONT

main04479-32021iCV20,SV20198608-198808

main04479-32030iSV21,25,VZV20198608-198808

04491PAD KIT, DISC BRAKE, FRONT

main04491-32120iCV20,SV20198608-198808

sub04491-32121

main04491-32130iSV21..GT198608-198609

sub04491-32131

main04491-32131iSV21..GT198609-198808

sub04491-32132

sub04491-32291

main04491-32170iSV21..VE,VX,ZT,ZX198608-198610

sub04491-32171

main04491-32171iSV21..VE,VX,ZT,ZX198610-198801

sub04491-32300

main04491-32200iSV25198608-198808

sub04491-32201

main04491-32300iSV21..VE,VX,ZT,ZX198801-198808

sub04491-32301

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90105-12131iCV20,SV2#,VZV20198608-198808

47713PLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010iCV20,SV2#,VZV20198608-198808

47714CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iCV20,SV2#,VZV20198608-198808

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-32030iCV20,SV20198608-198808

sub47716-32031

main47716-32040iSV21,VZV20198608-198808

sub47716-32041

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-32030iCV20,SV20198608-198808

sub47717-32031

main47717-32040iSV21,VZV20198608-198808

sub47717-32041

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-20140iVZV20198704-198808

main47721-32050iCV20,SV20198608-198808

main47721-32060iSV21198608-198808

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90119-09003iCV20,SV20198608-198710

main90119-09003iCV20,SV20198710-198808

main90119-09004iCV20,SV20198710-198808

main90119-09004iCV20,SV20198608-198710

main90119-10014iSV21,VZV20198608-198710

main90119-10014iSV21,25,VZV20198710-198808

main90119-10249iSV21,VZV20198608-198710

main90119-10249iSV21,25,VZV20198710-198808

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-20140iVZV20198704-198808

main47721-32050iCV20,SV20198608-198808

main47721-32060iSV21198608-198808

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-20240iVZV20198704-198808

main47730-32060iCV20,SV20198608-198808

sub47730-32090

main47730-32070iSV21198608-198808

47731PISTON, FRONT DISC BRAKE

main47731-32020iCV20,SV20198608-198808

main47731-32040iSV21,VZV20198608-198808

47731ARING, SET(FOR FRONT DISC BRAKE PISTON)

main90522-64003iCV20,SV20198608-198808

main90522-66001iSV21,25,VZV20198608-198808

47743ASPRING, ANTI-SQUEAL(FOR FRONT DISC BRAKE)

main47743-32020iSV21198608-198808

main47743-32030iSV25,VZV20198704-198808

47744SHIM, ANTI-SQUEAL, NO.1(FOR FRONT DISC BRAKE)

main47744-16010iCV20,SV20198608-198704

sub47744-16011

main47744-16011iCV20,SV20198704-198808

sub47744-32010

main47744-32040iSV21198608-198704

sub47744-32041

main47744-32041iSV21..VE,VX,ZT,ZX198704-198808

47744ASHIM, ANTI-SQUEAL, NO.3(FOR FRONT DISC BRAKE)

main47742-17010iCV20,SV20198608-198808

main47742-32020iSV21..GT198608-198704

sub47742-32021

main47742-32021iSV21,VZV20..GT,PRO198704-198808

47745SHIM, ANTI-SQUEAL, NO.2(FOR FRONT DISC BRAKE)

main47745-17020iCV20,SV20198608-198808

main47745-32020iSV21,VZV20..GT,PRO198608-198808

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-20230iVZV20198704-198808

main47750-32060iCV20,SV20198608-198808

sub47750-32090

main47750-32070iSV21198608-198808

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-32010iCV20,SV20198608-198808

main47769-40010iSV21,25,VZV20198608-198808

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-32010iCV20,SV2#,VZV20198608-198808

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47779-32010iCV20,SV20198608-198808

main47779-40010iSV21,VZV20198608-198808

47781COVER, DISC BRAKE DUST, FRONT RH

main47703-32010iSV21198608-198703

sub47703-32011

main47703-32011iSV21,VZV20198703-198808

sub47703-32040

main47703-32020iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

sub47703-32021

main47703-32020iSV21,VZV20..GT,PRO198704-198710

W/ESC

sub47703-32021

main47781-32020iCV20,SV20198608-198808

sub47703-32060

47781ABOLT(FOR DUST COVER TO STEERING KNUCKLE ARM SETTING)

main90119-06227iCV20,SV2#198608-198808

47782COVER, DISC BRAKE DUST, FRONT LH

main47704-32010iSV21198608-198703

sub47704-32011

main47704-32011iSV21,25,VZV20198703-198808

sub47704-32040

main47704-32020iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE198710-198808

sub47704-32021

main47704-32020iSV21,VZV20..GT,PRO198704-198710

W/ESC

sub47704-32021

main47782-32020iCV20,SV20198608-198808

sub47704-32060

24 parts on this diagram · 2 diagrams in section
