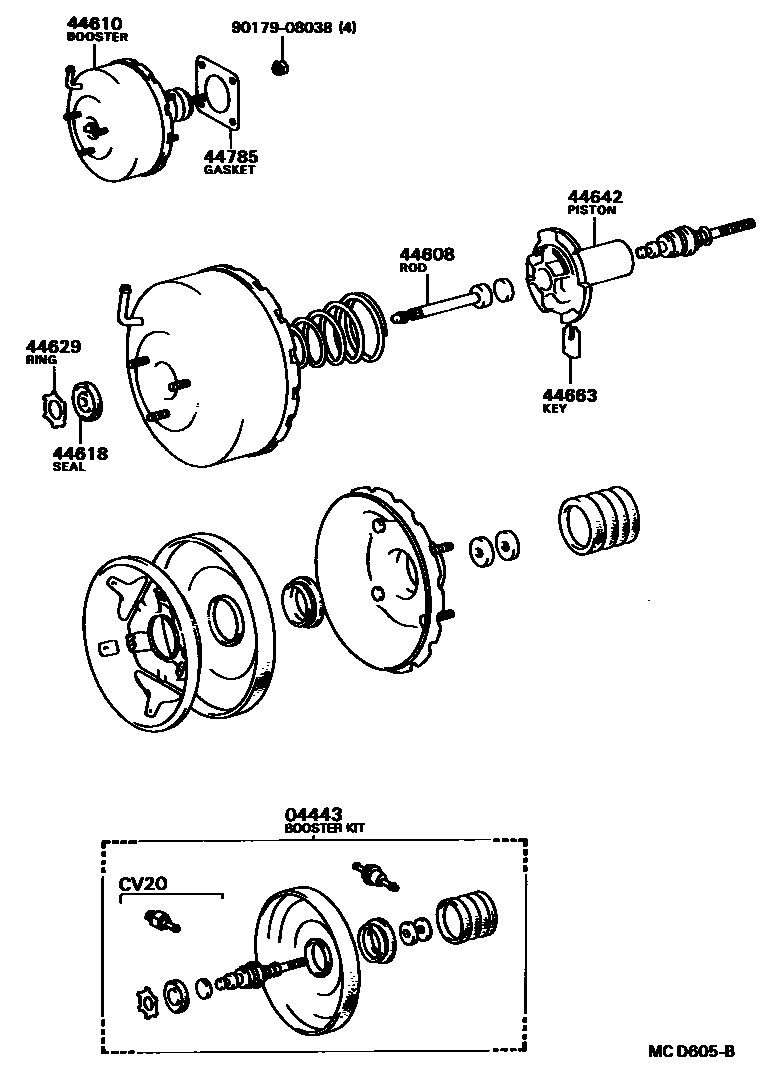

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0005 1 0007 1 0008 1

04443BOOSTER KIT, BRAKE

main04443-32150iSV21..VE,VX,ZT,ZX¥11,800198608-198711

main04443-32160iSV21,VZV20..GT,PRO¥15,500198608-198710

JKC

main04443-32180iSV20¥10,500198608-198710

main04443-32190iCV20¥10,500198608-198710

main04443-32240iSV21..GT¥14,000198710-198808

main04443-32240iSV21,VZV20..GT,PRO¥14,000198608-198710

AISIN

main04443-32290iSV20¥10,500198710-198808

main04443-32300iCV20¥10,500198710-198808

main04443-32310iSV25,VZV20¥13,200198710-198808

main04443-32320iSV21..VE,VX,ZT,ZX¥11,800198711-198808

main04443-32350iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE¥14,600198710-198808

JKC

main04443-32370iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE¥13,400198710-198808

AISIN

44608PUSH ROD SUB-ASSY, BOOSTER

main44606-12520iCV20,SV20¥2,660198608-198808

main44606-20800iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE¥1,260198608-198808

AISIN

main44608-17090iSV21,VZV20..GT,PRO¥2,010198708-198710

main44608-20810iSV21,VZV20..GT,PRO¥2,010198608-198708

JKC

main44608-32020iSV21..VE,VX,ZT,ZX¥2,670198608-198808

44610BOOSTER ASSY, BRAKE

main44610-32140iVZV20¥68,900198704-198710

W/ESC

main44610-32140iSV25,VZV20¥68,900198710-198808

main44610-32160iCV20,SV20¥42,300198608-198808

main44610-32170iSV21..VE,VX,ZT,ZX¥46,200198608-198711

sub44610-32171¥46,200

main44610-32171iSV21..VE,VX,ZT,ZX¥46,200198711-198808

main44610-32180iSV21,VZV20..GT,PRO¥63,100198608-198707

sub44610-32250¥63,300

main44610-32250iSV21..GT¥63,300198710-198808

main44610-32250iSV21,VZV20..GT,PRO¥63,300198707-198710

main44610-32440iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE¥63,200198710-198808

44618SEAL, BOOSTER BODY

main44621-14030iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE¥400198608-198808

main44621-28120iCV20,SV20¥590198608-198808

44629RING, CIRCULAR INTERNAL

main44628-28120iCV20,SV20¥390198608-198808

main44628-60010iSV21,VZV20..GT,PRO¥440198608-198808

44642PISTON, BRAKE BOOSTER

main44642-20800iSV21,25,VZV20..GT,PRO,VL,VR,XT,ZE¥2,740198608-198808

main44642-32010iCV20,SV20¥6,100198608-198708

main44642-32030iCV20,SV20¥5,900198708-198808

44663KEY, VALVE STOPPER

main44635-20800iSV21,VZV20..GT,PRO¥230198608-198808

main44635-28120iCV20,SV20¥370198608-198808

44785GASKET, BRAKE BOOSTER

main44785-32010iCV20,SV2#,VZV20¥220198608-198808

9017908038

main90179-08038¥130

9 parts on this diagram · 6 diagrams in section
