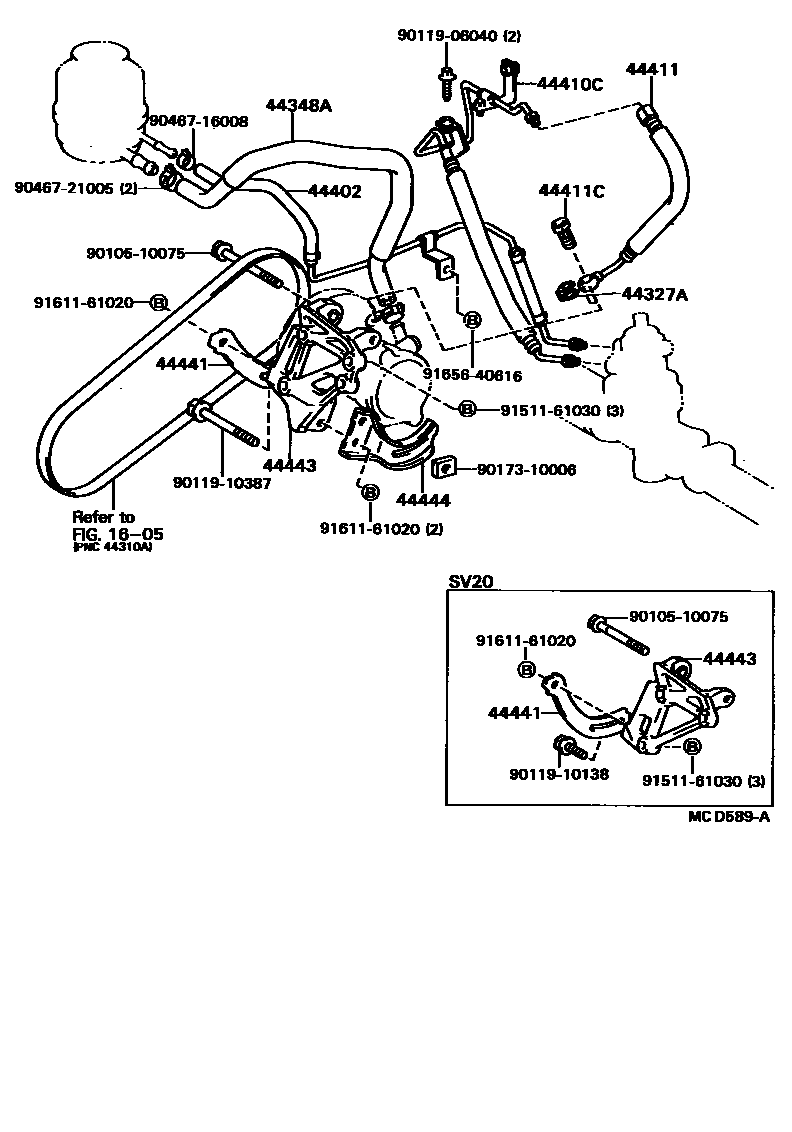

POWER STEERING TUBE

0001 1 0002 1PROGRESSIBLE TYPE 0003 1 0004 1 0005 1

1605

44327AGASKET, PRESSURE PORT, NO.1

main44327-12010iSV21..GT,VX,ZX198608-198612

GEAR SIDE

main44327-12010iCV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198710

VANE PUMP SIDE

main44327-12010iCV20,SV2#..GT,VE,VL,VR,XT,ZE,ZT198710-198808

main44327-12020iSV21,VZV20..GT,PRO,VX,ZX198612-198710

GEAR SIDE

44348AHOSE, OIL RESERVOIR TO PUMP, NO.1

main44348-32050iSV21,25198608-198808

main44348-32060iCV20198608-198808

main44348-32070iSV20..VE,VL,VR,XT,ZE,ZT198608-198808

main44348-32080iVZV20198704-198808

44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1

main44402-32010iSV2#..GT,VE,VL,VR,XT,ZE,ZT198608-198808

main44402-32021iSV21..GT,VX,ZX198608-198710

PROGRESSIBLE TYPE

main44402-32021iSV21..VX,ZX198710-198808

main44402-32070iVZV20198704-198808

sub44402-32130

main44402-32080iSV21,25..GT,VL,VR,XT,ZE198710-198808

main44402-32080iSV21198704-198710

W/ESC

main44402-32130iVZV20198808-198808

44410CTUBE ASSY, PRESSURE FEED, NO.1

main44410-32110iSV2#..GT,VE,VL,VR,XT,ZE,ZT198608-198808

main44410-32120iCV20198608-198808

main44410-32131iSV21..GT,VX,ZX198608-198710

main44410-32131iSV21..VX,ZX198710-198808

main44410-32190iVZV20198704-198808

sub44410-32191

44411HOSE, PRESSURE FEED

main44411-32030iSV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

main44411-32060iVZV20198704-198808

sub44411-32061

44411CBOLT, UNION(FOR PRESSURE FEED HOSE)

main90401-16008iSV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

44441BRACKET, PUMP, FRONT

main44441-32010iSV2#..GT,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

44443BRACKET, PUMP

main44443-20050iSV21..GT198608-198808

main44443-20060iSV20..VE,VL,VR,XT,ZE,ZT198608-198808

sub44443-20050

main44443-32040iVZV20198704-198710

sub44443-32041

44444STAY, PUMP, REAR

main44444-20030iSV21198608-198808

9010510075

main90105-10075

9011906040

main90119-06040

9011910138

main90119-10138

9011910387

main90119-10387

9017310006

main90173-10006

9046716008

main90467-16008

9046721005

main90467-21005

9151161030

main91511-61030

9161161020

main91611-61020

9165640616

main91656-40616

20 parts on this diagram · 5 diagrams in section
