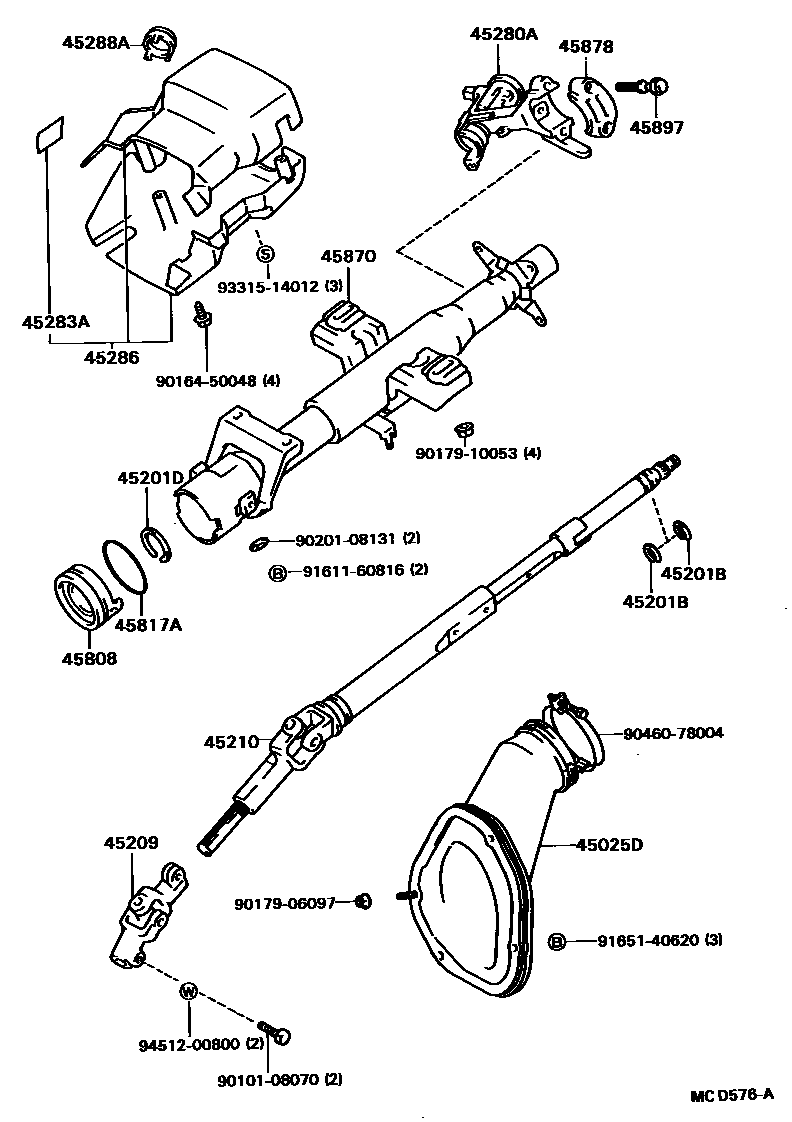

STEERING COLUMN & SHAFT

0001 1 0002 1 0003 1

45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1

main45025-32050iCV20,SV2#198608-198808

sub45025-32090

main45025-32070iVZV20198704-198808

sub45025-32110

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198710

main90520-17042iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198710-198808

main90520-17196iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198710

main90520-17196iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198710-198808

45201DRING(FOR STEERING MAIN SHAFT)

main90520-28061iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198808

main96152-00300iSV21,VZV20..GT,PRO,VX,ZX198608-198808

45209YOKE SUB-ASSY, STEERING SLIDING

main45209-32010iSV20..LT,VC198608-198808

sub45209-10020

main45209-32020iCV20,SV2#,VZV20..GT,PRO,VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

sub45209-16010

45210SHAFT ASSY, STEERING MAIN

main45210-32100iSV20..LT,VC198608-198808

main45210-32110iCV20,SV2#..VE,VL,VR,XT,ZE,ZT198608-198808

main45210-32150iSV21,VZV20..GT,PRO,VX,ZX198608-198808

sub45210-32151

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-20280iCV20,SV2#..LT,VC,VE,VL,XT,ZT198608-198808

sub45280-20330

main45280-20330iSV20,25..VR,ZE198608-198808

main45280-20330iCV20,SV20,21..ZT198712-198808

main45280-20351iSV21,VZV20..GT,PRO,VX,ZX198608-198808

45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION

main45283-22010iCV20,SV2#,VZV20198608-198808

45286COVER, STEERING COLUMN

main45286-32909-02iCV20,SV20,25198710-198808

MAROON,TRIM3#

sub45286-32909

main45286-32909-02iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198710

MAROON,MAROON,TRIM3#

sub45286-32909

main45286-32909-04iSV21..VE,ZT198710-198808

DARK BLUE,TRIM8#

sub45286-32909

main45286-32909-04iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198710

BLUE,DARK BLUE,TRIM8#

sub45286-32909

main45286-32909-05iCV20,SV20,21..LT,VC,VE,VL,VR,XT,ZE,ZT198710-198808

DARK BEIGE,DARK BEIGE,TRIM4#

sub45286-32909

main45286-32909-05iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub45286-32909

main45286-32909-05iCV20,SV20,25198710-198808

DARK BEIGE,TRIM4#

sub45286-32909

main45286-32912-02iSV21,VZV20..GT,PRO,VX,ZX198608-198710

MAROON,MAROON,TRIM3#

sub45286-32912

main45286-32912-02iSV21,VZV20..GT,PRO,VX,ZX198710-198808

MAROON,TRIM3#

sub45286-32912

main45286-32912-04iSV21,VZV20..GT,PRO,VX,ZX198608-198710

BLUE,DARK BLUE,TRIM8#

sub45286-32912

main45286-32912-04iSV21,VZV20..GT,PRO,VX,ZX198710-198808

DARK BLUE,TRIM8#

sub45286-32912

main45286-32912-05iSV21,VZV20..GT,PRO,VX,ZX198608-198710

BEIGE,DARK BEIGE,TRIM4#

sub45286-32912

main45286-32912-05iSV21..GT,VX,ZX198710-198808

DARK BEIGE,TRIM4#

sub45286-32912

45288ASPACER, COLUMN COVER

main45288-30010iCV20,SV2#..LT,VC,VE,VL,XT,ZT198608-198808

45808STOPPER SUB-ASSY, STEERING SHAFT THRUST

main45808-32010iCV20,SV2#,VZV20198608-198808

sub45808-32020

45817STOPPER, STEERING SHAFT THRUST

main45817-32020iSV21,VZV20..GT,PRO,VX,ZX198608-198808

45817ARING, O(FOR STEERING SHAFT THRUST STOPPER)

main90301-54002iCV20,SV2#,VZV20198608-198808

45870TUBE ASSY, STEERING COLUMN

main45870-32020iSV20..LT,VC198608-198808

sub45870-32021

main45870-32080iCV20,SV2#..VE,VL,VR,XT,ZE,ZT198608-198808

sub45870-32081

main45870-32090iSV21,VZV20..GT,PRO,VX,ZX198608-198808

main45870-32100iVZV20198710-198808

main45870-32100iSV21,VZV20..GT,PRO198608-198710

W/TEMS

main45870-32100iVZV20198710-198808

45878BRACKET, STEERING COLUMN UPPER SUPPORT

main45878-32030iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198808

45897BOLT, STEERING LOCK SET

main45897-12020iCV20,SV2#..LT,VC,VE,VL,VR,XT,ZE,ZT198608-198808

9010108070

main90101-08070

9016450048

main90164-50048

9017906097

main90179-06097

9017910053

main90179-10053

9020108131

main90201-08131

9046078004

main90460-78004

9161160816

main91611-60816

9165140620

main91651-40620

9331514012

main93315-14012

9451200800

main94512-00800

25 parts on this diagram · 3 diagrams in section
