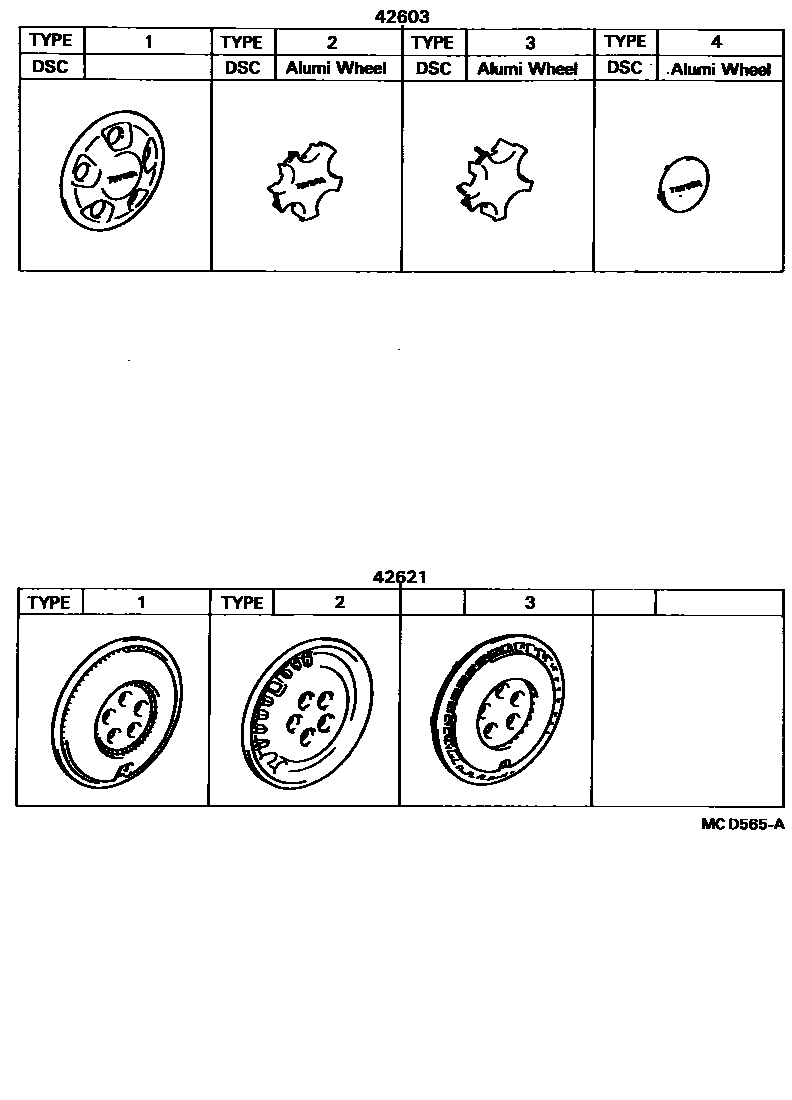

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-32040iCV20,SV20..LT,VC,VL,XT198608-198808

main42603-32060iCV20,SV20..VE,VL,VR,XT,ZE,ZT198710-198808

main42603-32060iCV20,SV20..VE,VL,VR,XT,ZE,ZT198608-198710

13 INCHS ALUMI WHEEL

main42603-32070iSV25198710-198808

main42603-32070iSV21,VZV20..PRO,VE,VX,ZT,ZX198608-198710

main42603-32080iSV21..GT198710-198808

main42603-32080iSV21..GT198710-198808

main42603-32080iSV21,VZV20..GT,PRO198608-198710

main42603-32120iSV21..HT..VX198804-198808

42621CAP, WHEEL

main42621-32020iSV20..VL198608-198808

TYPE 1

main42621-32020iCV20,SV20..VL198708-198710

main42621-32040iSV21,25..VE,VL,VR,VX,XT,ZE,ZT,ZX198608-198808

TYPE 2

main42621-32050iVZV20198704-198808

TYPE 3

2 parts on this diagram · 2 diagrams in section
