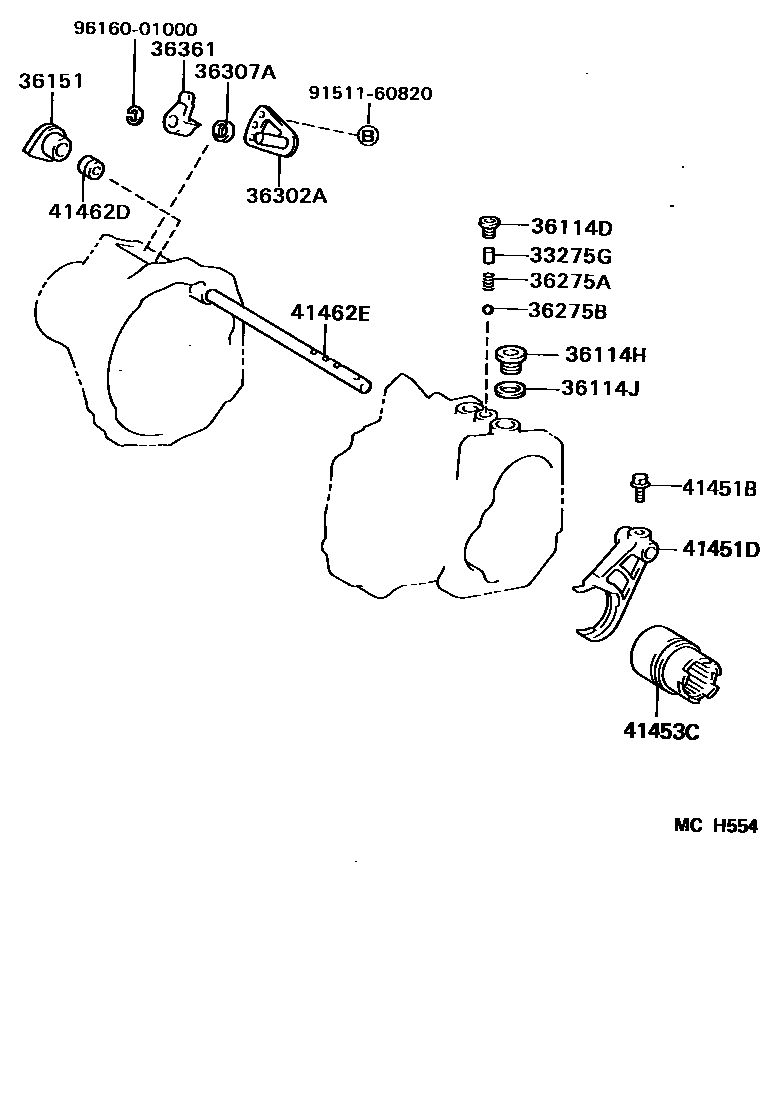

TRANSFER LEVER & SHIFT ROD
33275GSEAT, TRANSFER SHIFT DETENT BALL SPRING
36114DPLUG, W/HEAD STRAIGHT SCREW
36114HPLUG, NO.2 (FOR TRANSFER CASE)
36114JGASKET, NO.2 (FOR TRANSFER CASE)
36151BUSH, TRANSFER CASE UPPER COVER
36275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL)
36275BBALL, SHIFT DETENT
36302ALEVER SUB-ASSY, TRANSFER SHIFT, NO.1
36307ASEAL, OIL (FOR HIGH & LOW SHIFT INNER LEVER)
36361LEVER, TRANSFER SHIFT, INNER
41451BBOLT (FOR DIFFERENTIAL LOCK SHIFT FORK)
41451DFORK, DIFFERENTIAL LOCK SHIFT
41453CSLEEVE, DIFFERENTIAL LOCK
41462DSEAL, OIL (FOR DIFFERENTIAL LOCK SHIFT FORK SHAFT)
41462ESHAFT, DIFFERENTIAL LOCK SHIFT FORK
9151160820
main91511-60820
9616001000
main96160-01000
17 parts on this diagram · 2 diagrams in section
