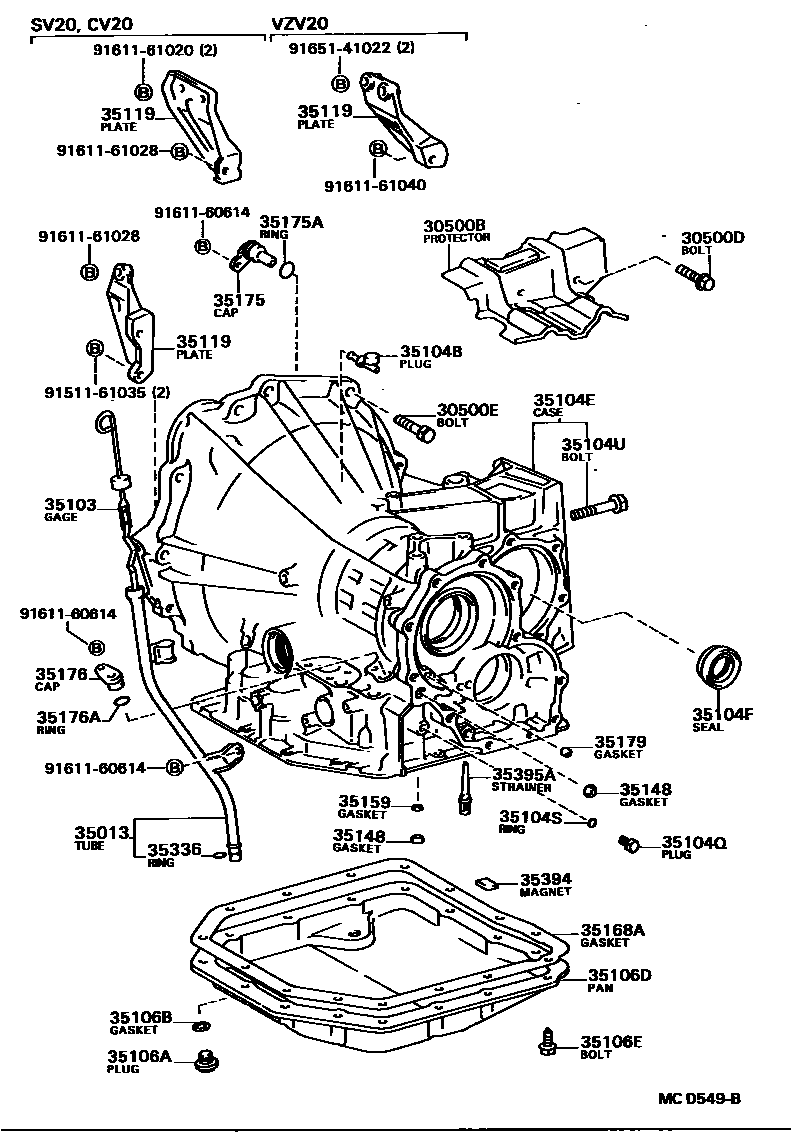

TRANSMISSION CASE & OIL PAN (ATM)
30500BPROTECTOR, TRANSAXLE CASE
30500DBOLT(FOR TRANSAXLE CASE PROTECTOR)
sub91641-H0820
35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER
35104BPLUG, BREATHER, NO.1 (ATM)
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
sub35104-20072
sub35104-32052
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
35104UBOLT (FOR TRANSAXLE CASE)
sub90105-12263
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35106EBOLT (FOR TRANSAXLE OIL PAN)
35119PLATE, STIFENER, LH (ATM)
35148GASKET, GOVERNOR APPLY, NO.1
35159GASKET, BRAKE DRUM
35168AGASKET, AUTOMATIC TRANSAXLE OIL PAN
35175CAP, TRANSAXLE CASE, NO.2
35175ARING, O (FOR TRANSAXLE CASE CAP)
35176CAP, WIRE HARNESS
35176ARING, O (FOR WIRE HARNESS CAP)
35179GASKET, OVERDRIVE BRAKE
35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
9151161035
main91511-61035
9161160614
main91611-60614
9161161020
main91611-61020
9161161028
main91611-61028
9161161040
main91611-61040
9165141022
main91651-41022
33 parts on this diagram · 1 diagram in section
