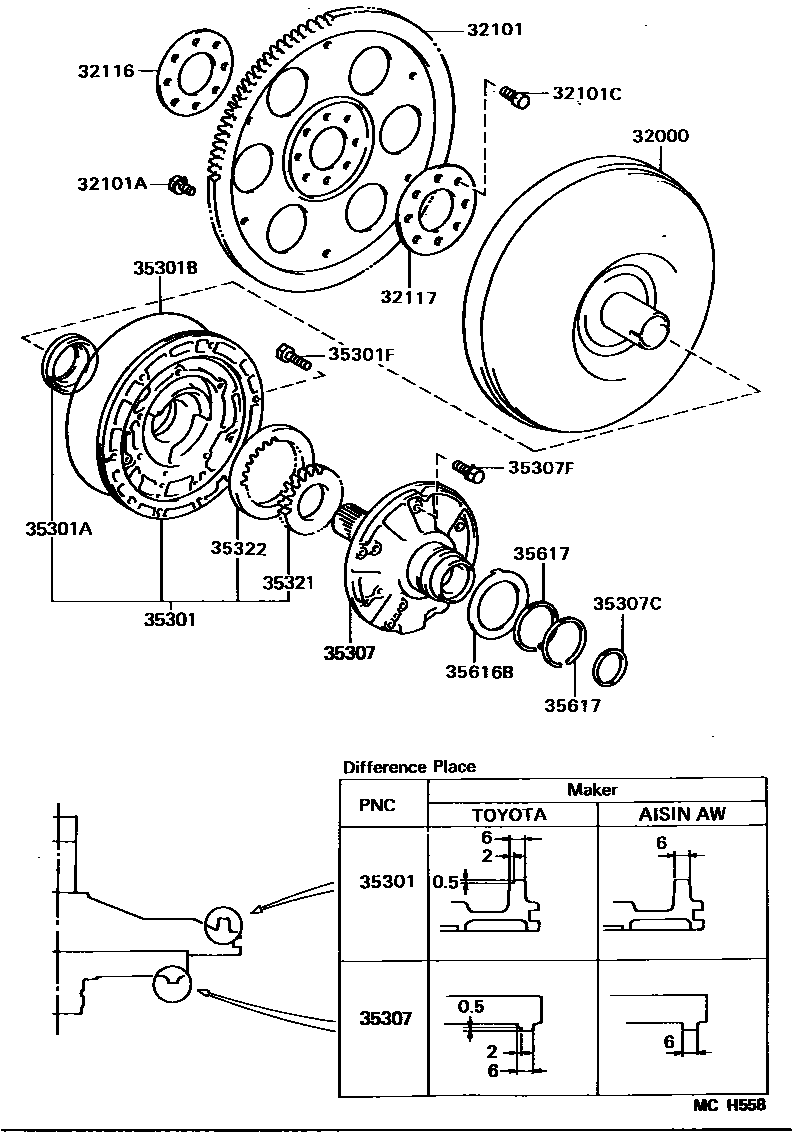

TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

32000CONVERTER ASSY, TORQUE

main32000-32012iCV20,SV2#..4FC198608-198702

sub32000-32020

main32000-32020iCV20,SV2#,VZV20..4FC198702-198802

sub32000-32040

main32000-32040iCV20,SV20,21,VZV20..4FC198802-198808

sub32000-32080

32101GEAR SUB-ASSY, DRIVE PLATE & RING

main32101-12070iCV20..4FC198608-198808

main32101-32010iSV20..4FC198608-198808

main32101-32021iSV21..4FC..GT198608-198808

main32101-32040iSV21..4FC..(VE,VX,ZT,ZX)198608-198808

sub32101-32041

main32101-32060iVZV20..4FC198704-198808

32101ABOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-08113iCV20,SV2#,VZV20..4FC198608-198808

main90119-08498iCV20,SV2#,VZV20..4FC198608-198710

main90119-08498iCV20,SV20,21,VZV20..4FC198710-198808

32101CBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10095iVZV20..4FC198704-198808

sub90105-10048

main90109-10037iCV20..4FC198608-198808

main90109-10054iSV2#..4FC198608-198808

32116SPACER, DRIVE PLATE, FRONT

main32116-14020iSV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198808

main32116-20030iCV20..4FC198608-198808

main32116-32011iSV21..4FC..GT198608-198808

main32116-32020iVZV20..4FC198704-198808

32117SPACER, DRIVE PLATE, REAR

main32117-14030iSV2#..4FC..(VE,VL,VR,VX,XT,ZE,ZT,ZX)198608-198808

main32117-20040iCV20..4FC198608-198808

main32117-32010iSV21..4FC..GT198608-198808

main32117-32020iVZV20..4FC198704-198808

35301BODY SUB-ASSY, FRONT OIL PUMP

main35035-32010iCV20,SV2#,VZV20..4FC198608-198808

AISIN WARNER

main35035-32020iCV20,SV20,21,VZV20..4FC198710-198808

sub35035-32H00

main35035-32020iCV20,SV2#,VZV20..4FC198608-198710

TOYOTA

sub35035-32H00

35301ASEAL, OIL (FOR FRONT OIL PUMP)

main90311-38020iCV20,SV20,21,VZV20..4FC198608-198808

35301BRING, O (FOR FRONT OIL PUMP BODY)

main90301-99024iCV20,SV20,21,VZV20..4FC198608-198808

35301FBOLT (FOR FRONT OIL PUMP SETTING)

main90105-08050iCV20,SV2#,VZV20..4FC198608-198808

35307SHAFT SUB-ASSY, STATOR

main35370-32022iCV20,SV2#,VZV20..4FC198608-198808

AISIN WARNER

sub35370-20H00

sub35370-32H01

main35370-32031iCV20,SV2#,VZV20..4FC198608-198710

TOYOTA

sub35370-32H00

main35370-32031iCV20,SV20,21,VZV20..4FC198710-198808

sub35370-32H00

35307CRACE, THRUST BEARING (FOR STATOR SHAFT)

main35789-32020iCV20,SV2#,VZV20..4FC198608-198808

main35789-32030iCV20,SV20,21,VZV20..4FC198608-198808

35307FBOLT (FOR STATOR SHAFT)

main90119-06180iCV20,SV20,21,VZV20..4FC198608-198808

35321GEAR, FRONT OIL PUMP DRIVE

main35321-32040iCV20,SV20,21,VZV20..4FC198608-198808

sub35321-12070

main35321-32040iCV20,SV20,21,VZV20..4FC198710-198808

sub35321-12070

main35321-32050iCV20,SV21,VZV20..4FC198710-198808

sub35321-12090

main35321-32050iCV20,SV21,VZV20..4FC198608-198808

sub35321-12090

main35321-32060iCV20,SV20,21,VZV20..4FC198608-198808

sub35321-12110

main35321-32060iCV20,SV20,21,VZV20..4FC198710-198808

sub35321-12110

35322GEAR, FRONT OIL PUMP DRIVEN

main35322-32040iCV20,SV21,VZV20..4FC198608-198808

sub35322-12060

main35322-32040iCV20,SV20,21,VZV20..4FC198710-198808

sub35322-12060

main35322-32050iCV20,SV21,VZV20..4FC198608-198808

sub35322-12080

main35322-32050iCV20,SV20,21,VZV20..4FC198710-198808

sub35322-12080

main35322-32060iCV20,SV2#,VZV20..4FC198608-198808

sub35322-12100

main35322-32060iCV20,SV20,21,VZV20..4FC198710-198808

sub35322-12100

35616BWASHER, CLUTCH DRUM THRUST (FOR STATOR SHAFT)

main35616-32010iCV20,SV2#,VZV20..4FC198608-198808

35617RING, CLUTCH DRUM OIL SEAL

main35617-32010iCV20,SV2#,VZV20..4FC198608-198708

main35617-32011iCV20,SV2#,VZV20..4FC198708-198808

17 parts on this diagram · 1 diagram in section
