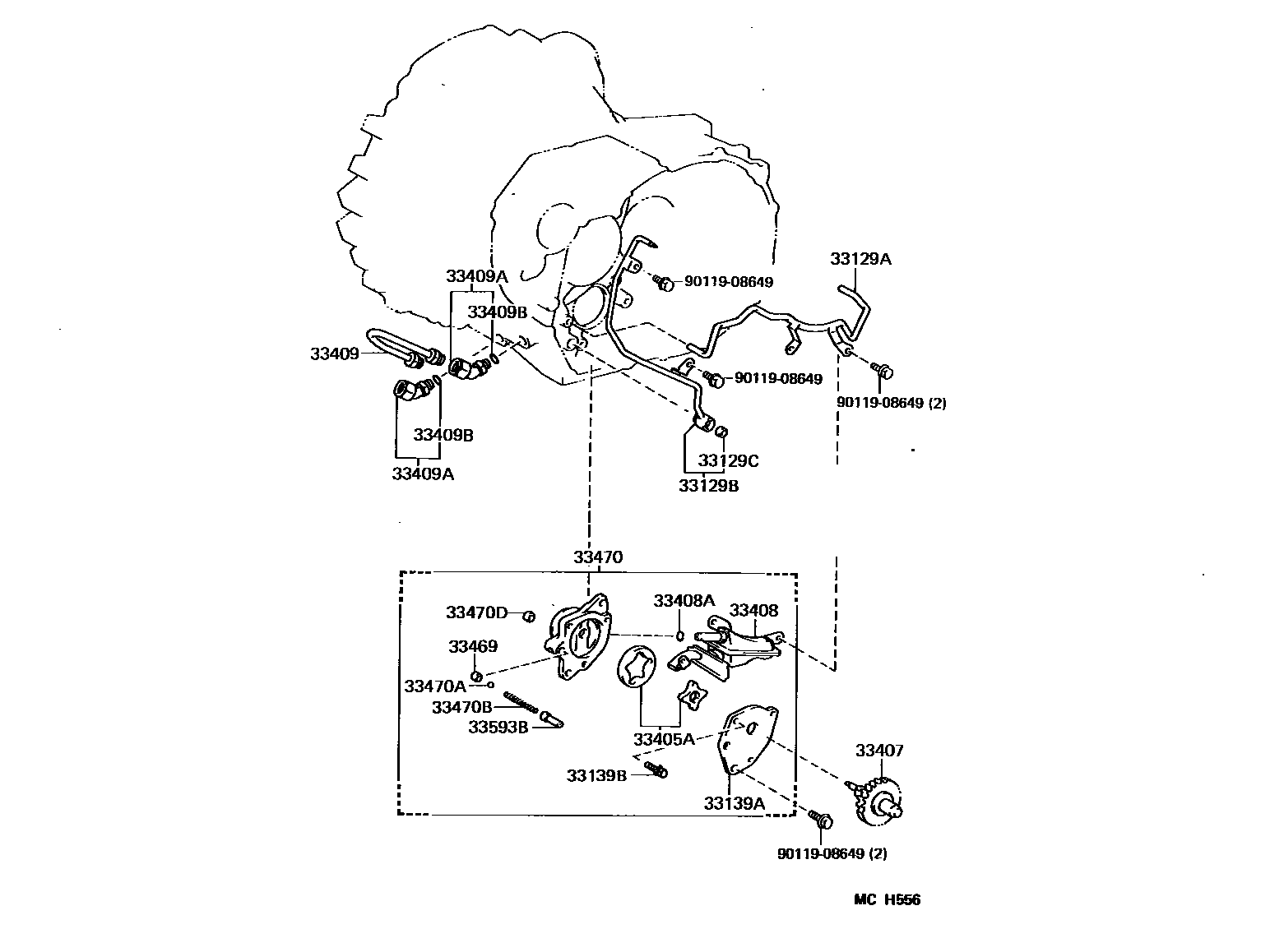

OIL PUMP, OIL COOLER & PIPE (MTM)
33129APIPE, MANUAL TRANSMISSION OIL, NO.1
33129CGASKET(FOR MANUAL TRANSMISSION OIL PIPE)
33139ACOVER, OIL PUMP(FOR MANUAL TRANSMISSION)
33139BBOLT(FOR MANUAL TRANSMISSION OIL PUMP COVER)
33405AROTOR SUB-ASSY, MANUAL TRANSMISSION OIL PUMP
33408STRAINER SUB-ASSY, MANUAL TRANSMISSION OIL
sub33408-20011
33408ARING, O (FOR MANUAL TRANSMISSION OIL STRAINER)
33409TUBE SUB-ASSY, MANUAL TRANSMISSION OIL COOLER
33409AELBOW (FOR MANUAL TRANSMISSION OIL COOLER TUBE)
33409BRING, O (FOR MANUAL TRANSMISSION OIL COOLER TUBE ELBOW)
33469SEAT, RELIEF VALVE (FOR MANUAL TRANSMISSION OIL PUMP)
33470PUMP ASSY, MANUAL TRANSMISSION OIL
sub33470-12010
33470ABALL (FOR MANUAL TRANSMISSION OIL PUMP)
33470BSPRING, COMPRESSION (FOR MANUAL TRANSMISSION OIL PUMP)
33470DGASKET (FOR MANUAL TRANSMISSION OIL PUMP)
33593BHOLDER, SPRING (FOR MANUAL TRANSMISSION OIL PUMP)
9011908649
main90119-08649
19 parts on this diagram · 1 diagram in section
