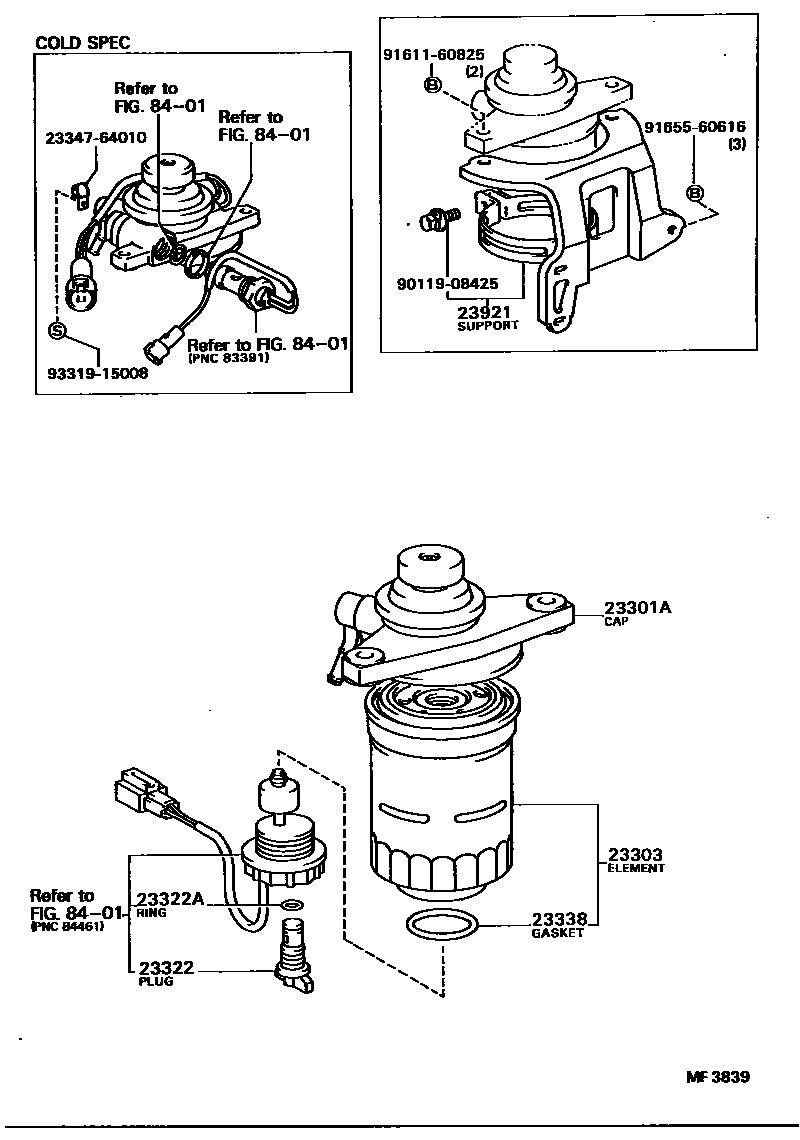

FUEL FILTER

23301ACAP ASSY, FUEL FILTER

main23301-64140i2CT..CV20198608-198808

main23301-64150i2CT..CV20198608-198710

COLD SPEC

main23301-64150i2CT..CV20198710-198808

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-64010i2CT..CV20198608-198808

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64020i2CT..CV20198608-198808

23322ARING, O(FOR DRAIN PLUG)

main23344-54010i2CT..CV20198608-198808

23338GASKET(FOR WARNING SWITCH)

main23344-64010i2CT..CV20198608-198808

23921SUPPORT, FUEL FILTER

main23921-64091i2CT..CV20198608-198808

8401

2334764010CLIP, CORD

main23347-64010

9011908425

main90119-08425

9161160825

main91611-60825

9165560616

main91655-60616

9331915008

main93319-15008

12 parts on this diagram · 1 diagram in section
