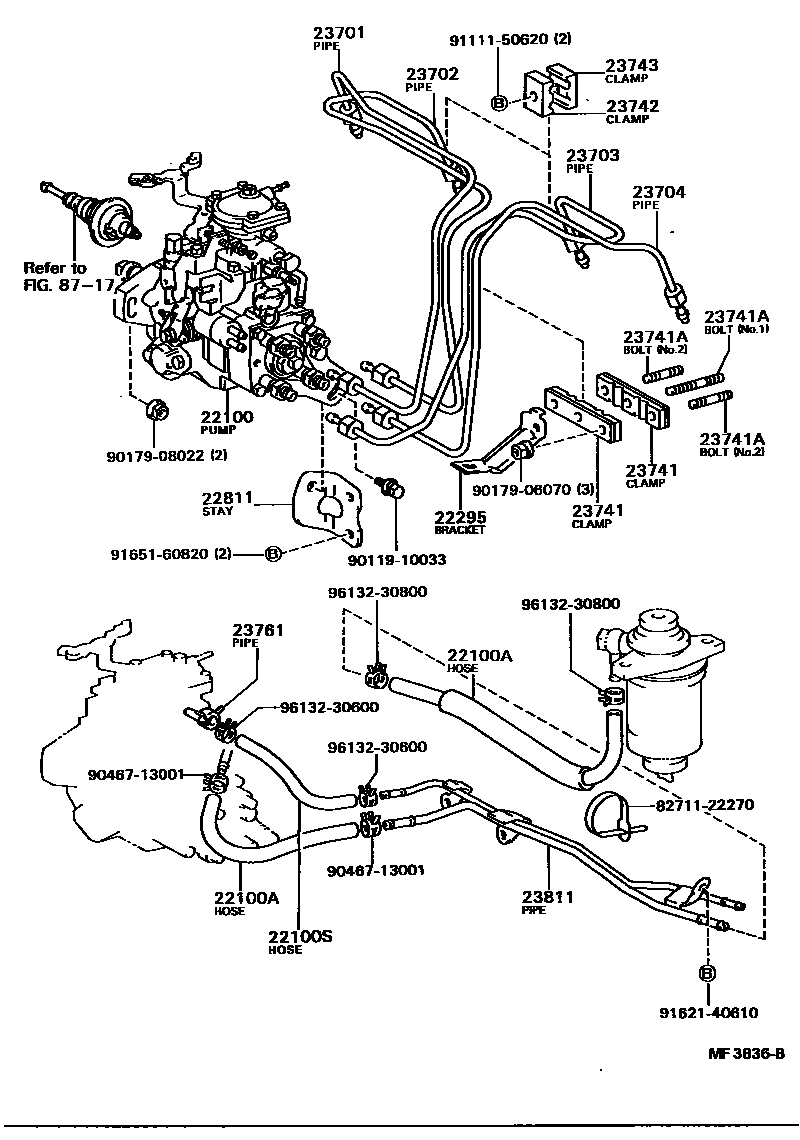

INJECTION PUMP ASSEMBLY

22100PUMP ASSY, INJECTION OR SUPPLY

main22100-6A220i2CT..CV20..5F198608-198808

main22100-6A230i2CT..CV20..5F198608-198710

COLD SPEC

main22100-6A230i2CT..CV20..5F198710-198808

main22100-6A250i2CT..CV20..4FC198608-198808

main22100-6A260i2CT..CV20..4FC198710-198808

main22100-6A260i2CT..CV20..4FC198608-198710

COLD SPEC

22100AHOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)

main23273-64030i2CT..CV20198608-198808

PIPE TO PUMP

main23273-64040i2CT..CV20198608-198808

FILTER TO PIPE

22100SHOSE, FUEL(FOR INJECTION PUMP TO FUEL PIPE)

main23274-64010i2CT..CV20198608-198710

main95333-06020i2CT..CV20198710-198808

sub95337-06020

22295BRACKET, INJECTION PUMP CONNECTOR

main22295-64010i2CT..CV20198608-198808

sub22295-64011

22811STAY, INJECTION PUMP, NO.1

main22811-64010i2CT..CV20198608-198808

23701PIPE SUB-ASSY, INJECTION, NO.1

main23701-64050i2CT..CV20198710-198808

main23701-64060i2CT..CV20198608-198710

sub23701-64050

23702PIPE SUB-ASSY, INJECTION, NO.2

main23702-64060i2CT..CV20198608-198808

sub23702-64050

23703PIPE SUB-ASSY, INJECTION, NO.3

main23703-64050i2CT..CV20198710-198808

main23703-64060i2CT..CV20198608-198710

sub23703-64050

23704PIPE SUB-ASSY, INJECTION, NO.4

main23704-64050i2CT..CV20198710-198808

main23704-64060i2CT..CV20198608-198710

sub23704-64050

23741CLAMP, INJECTION PIPE, NO.1

main23741-64010i2CT..CV20198608-198808

sub23741-64011

23741ABOLT, STUD(FOR INJECTION PIPE CLAMP)

main90116-06275i2CT..CV20198608-198710

NO.1

sub90116-06095

main90116-06275i2CT..CV20198710-198808

sub90116-06095

main92122-60622i2CT..CV20198710-198808

main92122-60622i2CT..CV20198608-198710

NO.2

23742CLAMP, INJECTION PIPE, NO.2

main23741-54010i2CT..CV20198608-198808

23743CLAMP, INJECTION PIPE, NO.3

main23742-54010i2CT..CV20198608-198808

23761PIPE, NOZZLE LEAKAGE, NO.1

main23764-64040i2CT..CV20198608-198808

sub23764-64041

23811PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)

main23811-64020i2CT..CV20198608-198808

8717

8271122270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22270

9011910033

main90119-10033

9017906070

main90179-06070

9017908022

main90179-08022

9046713001

main90467-13001

9111150620

main91111-50620

9162140610

main91621-40610

9165160820

main91651-60820

9613230600

main96132-30600

9613230800

main96132-30800

26 parts on this diagram · 1 diagram in section
